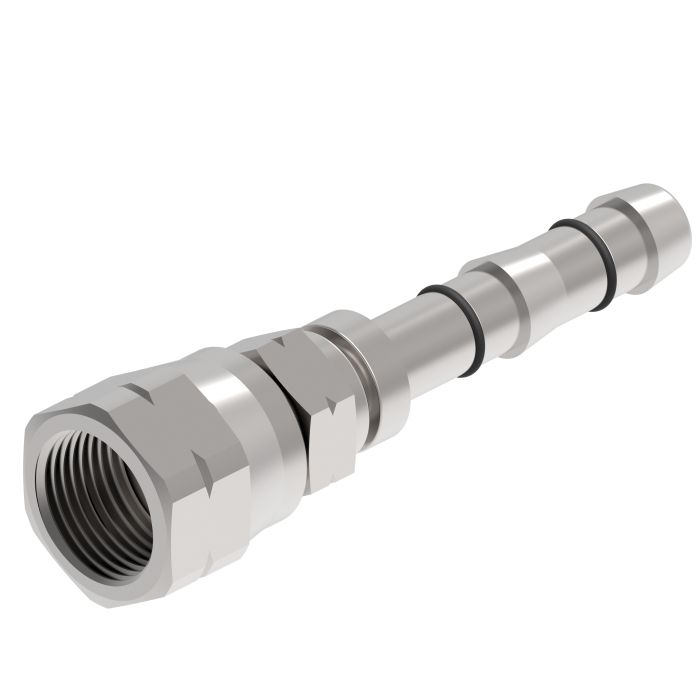

E-Z Clip Series Fitting, 5/8-18 Female SAE 45 deg Swivel, -08 Hose, Straight

Ask A Question

Description & Features

This Aeroquip EZ Clip Female SAE 45 Swivel ensures optimal performance and reliability in demanding applications. Designed with a 5/8-18 female swivel fitting and a -08 hose connection this component facilitates a secure and efficient connection. The 45-degree swivel angle maximizes flexibility and ease of installation in confined spaces making it ideal for specialized industry needs.

Constructed without the need for mandrels or thread sealant this fitting simplifies assembly while maintaining robust sealing properties. It also features a straightforward installation process that eliminates guesswork and the risk of leaking crimps. The integrated cage and clip system provides a secure durable connection that can be easily closed with FT1357 pliers.

Engineered by Danfoss Power Solutions (II LLC Aeroquip) this fitting is compliant with UNSPSC 40183100 and classified under ECCN EAR99 ensuring adherence to industry standards. The tough reliable design ensures a long lifespan serving critical purposes without compromising safety standards.

Supplier Part Number: FJ3057-02-0608S

Specifications

Brand
Danfoss
a Dimensions
2.89 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Female SAE Flared Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg Flare Swivel
Construction Style
Reusable
Cut-Off Factor
1.35 in
d Dimensions
1.62 in
Dimensions
2.89 in L x 0.75 in W x 0.87 in H
End Gender 1
Female
End Gender 2
Male
End Size 1
5/8 in
End Size 2
1/2 in
Finish
Zinc-Plated
Fitting Type
Nipple
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
0.75 x 0.69 in
Hose Dash Size
08
Inside Diameter
0.31 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-08
Series
FJ3057 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female SAE 45 deg Swivel, -06 Hose, Straight

FJ3057-01-0606S E-Z Clip Series SAE Fitting

5/8-18

06

1.62 in

E-Z Clip Series Fitting, 3/4-16 Female SAE 45 deg Swivel, -08 Hose, Straight

FJ3057-03-0808S E-Z Clip Series SAE Fitting

3/4-16

08

2.02 in

E-Z Clip Series Fitting, 3/4-16 Female SAE 45 deg Swivel, -10 Hose, Straight

FJ3057-04-0810S E-Z Clip Series SAE Fitting

3/4-16

10

2.02 in

E-Z Clip Series Fitting, 7/8-14 Female SAE 45 deg Swivel, -10 Hose, Straight

FJ3057-05-1010S E-Z Clip Series SAE Fitting

7/8-14

10

2.08 in

E-Z Clip Series Fitting, 7/8-14 Female SAE 45 deg Swivel, -12 Hose, Straight

FJ3057-06-1012S E-Z Clip Series SAE Fitting

7/8-14

12

2.08 in

E-Z Clip Series Fitting, 7/16-20 Female SAE 45 deg Swivel, -04 Hose, Straight

GA24048-4-4 E-Z Clip Series SAE Fitting

7/16-20

04

1.34 in

Product Questions & Answers (1)

Question by: Howard M on Jun 25, 2025, 8:09 AM
Can you use this with regular pliers or do you really need that FT1357 tool?
Answer by: Customer Support on Jun 27, 2025, 6:02 AM
You'll really need the FT1357 clip closing pliers to properly close the clips on this E-Z Clip fitting. It’s designed to ensure a secure and correct fit.
