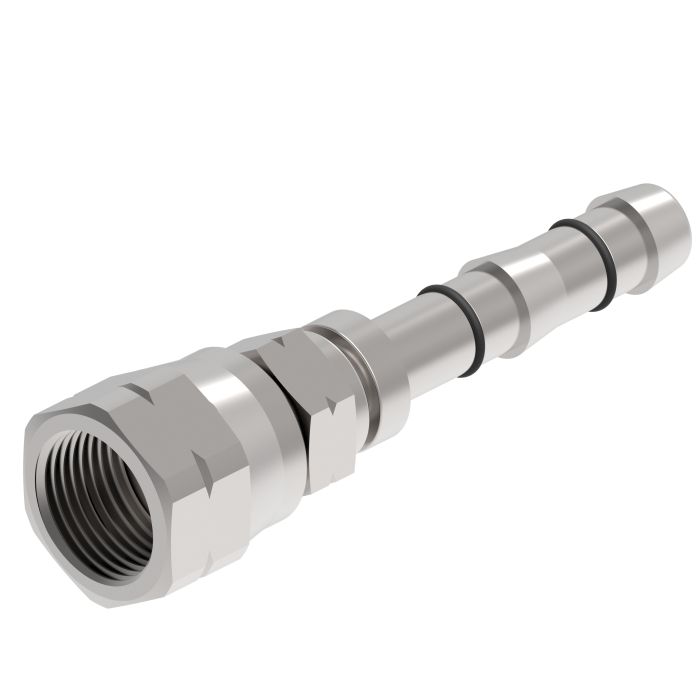

E-Z Clip Series Fitting, 3/4-16 Female SAE 45 deg Swivel, -08 Hose, Straight

Description & Features

The E-Z Clip Series Fitting 3/4-16 Female SAE 45 deg Swivel -08 Hose Straight by Danfoss Power Solutions (II LLC Aeroquip) is engineered for reliability and efficiency in specialized applications.

This fitting features a 3/4-16 female SAE 45-degree swivel and a straight orientation that accommodates a -08 hose size. The design eliminates the need for guesswork and power supply ensuring ease of installation even in confined spaces. The straight fitting ensures a seamless connection crucial for maintaining the integrity of the system.

The fitting is intended for specific industrial applications with components such as appropriately sized clips a cage and a nipple assembly that should not be reused. It also includes rubber compound o-rings that are tailored for the assembly's reliability. The system is designed to prevent leaking crimps enhancing durability and dependability.

MPN: C1EY55

Supplier Part Number: FJ3057-03-0808S

Specifications

Brand Danfoss	a Dimensions 2.96 in	Compatible Hose ID 1/2 in	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Female SAE Flared Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 45 deg Flare Swivel	Construction Style Reusable	Cut-Off Factor 1.42 in	d Dimensions 2.02 in	Dimensions 2.96 in L x 0.69 in W x 0.79 in H	End Gender 1 Female	End Gender 2 Male	End Size 1 3/4 in	End Size 2 1/2 in	Finish Zinc-Plated	Fitting Type Nipple	For Use With E-Z Clip System A/C Refrigeration GH134 Series Hoses	Hex Size 11/16 x 7/8 in	Hose Dash Size 08	Inside Diameter 0.31 in	Material Steel	Material Construction Carbon Steel	Seal Material HNBR	Series FJ3057 Series	Sg 1 Cut The Hose Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length	Sg 2 Slip On Two Clips Install Two Proper-Sized Clips Onto the Cut End of the Hose	Sg 3 Oil The Nipple Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion	Sg 4 Insert The Nipple Into The Hose Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple	Sg 5 Snap On The Cage Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove	Sg 6 Slide The Clips Slide the Clips Over the Cage Arms and into the Channels on Each Arm	Sg 7 Close The Clips Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip	Sg Caution Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona	Sg Material Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla	Thread Sealant Without Thread Sealant	Thread Size 3/4-16	Thread Type UNF

Similar Products

Model Number	Thread Size	Hose Dash Size	d Dimensions
FJ3057-01-0606S E-Z Clip Series SAE Fitting	5/8-18	06	1.62 in
FJ3057-02-0608S E-Z Clip Series SAE Fitting	5/8-18	08	1.62 in
FJ3057-04-0810S E-Z Clip Series SAE Fitting	3/4-16	10	2.02 in
FJ3057-05-1010S E-Z Clip Series SAE Fitting	7/8-14	10	2.08 in
FJ3057-06-1012S E-Z Clip Series SAE Fitting	7/8-14	12	2.08 in
GA24048-4-4 E-Z Clip Series SAE Fitting	7/16-20	04	1.34 in
