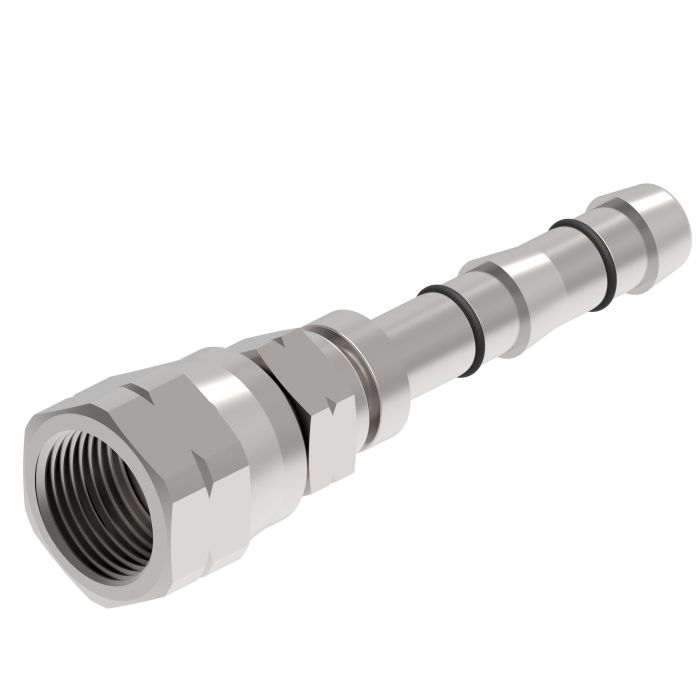

E-Z Clip Series Fitting, 7/8-14 Female SAE 45 deg Swivel, -10 Hose, Straight

Ask A Question

Description & Features

This E-Z Clip Series Fitting is designed for 7/8-14 female SAE 45-degree swivel connections with a -10 hose providing a Straight orientation.

The fitting is a reliable component for specialized applications featuring no guesswork no leaking crimps and requiring no power supply. This setup is as easy to use as a pair of pliers and is suitable for confined spaces.

Constructed under the renowned Danfoss Power Solutions brand the fitting emphasizes longevity and reliability. The assembly process involves cutting the hose lubricating and securely fastening with clips and cage.

These fittings are designated for their specific applications and should be used with Aeroquip hoses only. Adherence to proper assembly instructions is crucial to prevent refrigerant leakage which could cause personal injury or EPA violations.

Supplier Part Number: FJ3057-05-1010S

ECCN: EAR99

Specifications

Brand
Danfoss
a Dimensions
3.14 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female SAE Flared Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg Flare Swivel
Construction Style
Reusable
Cut-Off Factor
1.59 in
d Dimensions
2.08 in
Dimensions
3.63 in L x 1 in W x 1.15 in H
End Gender 1
Female
End Gender 2
Male
End Size 1
7/8 in
End Size 2
5/8 in
Finish
Zinc-Plated
Fitting Type
Nipple
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
7/8 x 1 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Series
FJ3057 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female SAE 45 deg Swivel, -06 Hose, Straight

FJ3057-01-0606S E-Z Clip Series SAE Fitting

5/8-18

06

1.62 in

E-Z Clip Series Fitting, 5/8-18 Female SAE 45 deg Swivel, -08 Hose, Straight

FJ3057-02-0608S E-Z Clip Series SAE Fitting

5/8-18

08

1.62 in

E-Z Clip Series Fitting, 3/4-16 Female SAE 45 deg Swivel, -08 Hose, Straight

FJ3057-03-0808S E-Z Clip Series SAE Fitting

3/4-16

08

2.02 in

E-Z Clip Series Fitting, 3/4-16 Female SAE 45 deg Swivel, -10 Hose, Straight

FJ3057-04-0810S E-Z Clip Series SAE Fitting

3/4-16

10

2.02 in

E-Z Clip Series Fitting, 7/8-14 Female SAE 45 deg Swivel, -12 Hose, Straight

FJ3057-06-1012S E-Z Clip Series SAE Fitting

7/8-14

12

2.08 in

E-Z Clip Series Fitting, 7/16-20 Female SAE 45 deg Swivel, -04 Hose, Straight

GA24048-4-4 E-Z Clip Series SAE Fitting

7/16-20

04

1.34 in

Product Questions & Answers (2)

Question by: Todd C on Jul 10, 2025, 3:57 PM
got a -10 A/C hose and need a straight female 45 degree swivel, is this the right end for a 7/8-14 thread?
Answer by: Customer Support on Jul 12, 2025, 6:36 AM
The connection on this piece is a 7/8-14 female SAE 45 degree swivel and it’s made for -10 hose, with a straight orientation.
Question by: Brenda M on Feb 19, 2026, 6:44 AM
So, this fitting, it's good for AC lines, right? Just want to make sure before I order.
Answer by: Customer Support on Feb 20, 2026, 11:12 AM
Absolutely, this E-Z Clip series fitting is well-suited for A/C and refrigeration systems using Aeroquip GH134 multi-refrigerant hose. Just make sure to use the correct refrigerant oil and follow the assembly instructions closely.
