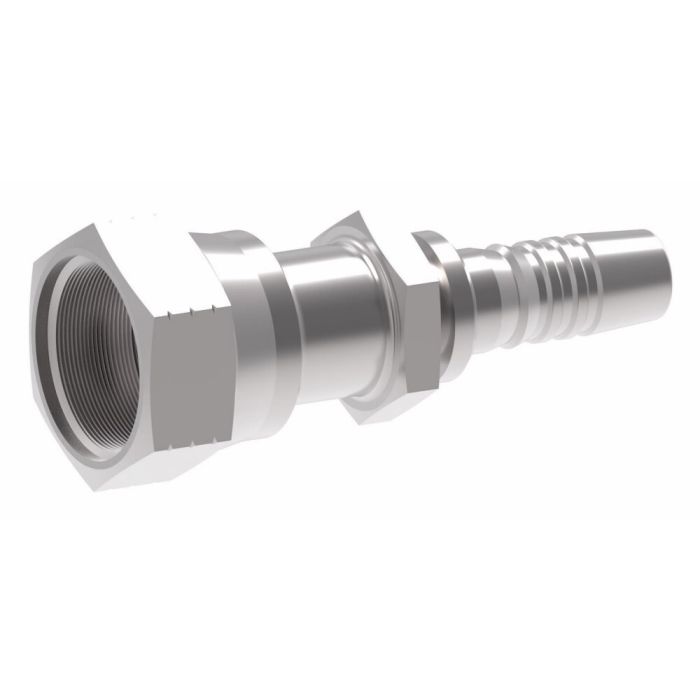

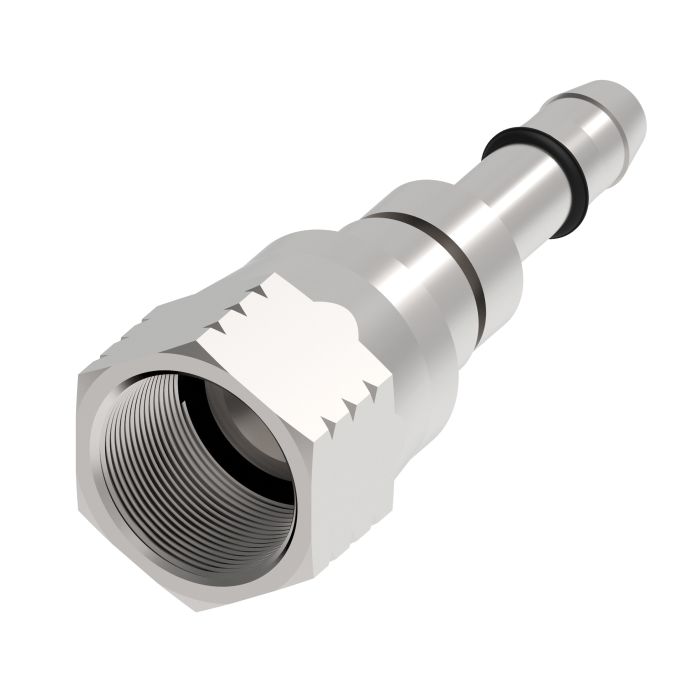

E-Z Clip Series Fitting, 7/16-20 Female SAE 45 deg Swivel, -04 Hose, Straight

Ask A Question

Description & Features

The Eaton Aeroquip E-Z Clip Series Fitting is designed for efficient and secure connections in A/C refrigeration systems. Featuring a 7/16-20 SAE 45-degree swivel end, this fitting accommodates a -04 hose, providing a straight configuration for optimal fluid flow. Engineered by Danfoss and Eaton, this fitting is part of the reliable E-Z Clip System, known for its ease of installation and robust performance in demanding environments. The fitting's compact design, with a dimension of 1.34 inches, ensures it fits seamlessly within tight spaces while maintaining system integrity.

Ideal for use in industrial settings, the E-Z Clip Series Fitting supports a wide range of fluid compatibilities, as evidenced by its comprehensive documentation. Its construction meets industry standards, ensuring durability and longevity. This product is a smart choice for professionals seeking dependable, high-performance fittings for their refrigeration applications.

SKU: GA24048-4-4

Supplier Part Number (MPN): GA24048-4-4

Alternate Part Numbers: C1HL30

Specifications

Brand
Danfoss
a Dimensions
1.338 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female SAE Flared Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg Flare Swivel
Construction Style
Reusable
Cut-Off Factor
0.669 in
d Dimensions
1.34 in
Dimensions
1.73 in L x 0.55 in W x 0.64 in H
End Gender 1
Female
End Gender 2
Male
End Size 1
7/16 in
End Size 2
1/4 in
Finish
Zinc-Plated
Fitting Type
Nipple
For Use With
FC505 Series Hoses
Hex Size
0.55 in
Hose Dash Size
04
Inside Diameter
0.12 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Series
GA24048 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female SAE 45 deg Swivel, -06 Hose, Straight

FJ3057-01-0606S E-Z Clip Series SAE Fitting

5/8-18

06

1.62 in

E-Z Clip Series Fitting, 5/8-18 Female SAE 45 deg Swivel, -08 Hose, Straight

FJ3057-02-0608S E-Z Clip Series SAE Fitting

5/8-18

08

1.62 in

E-Z Clip Series Fitting, 3/4-16 Female SAE 45 deg Swivel, -08 Hose, Straight

FJ3057-03-0808S E-Z Clip Series SAE Fitting

3/4-16

08

2.02 in

E-Z Clip Series Fitting, 3/4-16 Female SAE 45 deg Swivel, -10 Hose, Straight

FJ3057-04-0810S E-Z Clip Series SAE Fitting

3/4-16

10

2.02 in

E-Z Clip Series Fitting, 7/8-14 Female SAE 45 deg Swivel, -10 Hose, Straight

FJ3057-05-1010S E-Z Clip Series SAE Fitting

7/8-14

10

2.08 in

E-Z Clip Series Fitting, 7/8-14 Female SAE 45 deg Swivel, -12 Hose, Straight

FJ3057-06-1012S E-Z Clip Series SAE Fitting

7/8-14

12

2.08 in

Product Questions & Answers (2)

Question by: Roy R on Apr 19, 2025, 7:29 AM
If I'm connecting this to a hose, what size is that hose gonna need to be? Just want to make sure I get the right one.
Answer by: Customer Support on Apr 21, 2025, 6:32 AM
For connecting to a hose, this fitting is made to work with a -04 hose size.
Question by: Melvin W on Aug 10, 2025, 7:14 PM
trying to replace an old A/C line fitting, is this one the straight 7/16-20 female SAE 45 degree swivel for a -04 hose?
Answer by: Customer Support on Aug 11, 2025, 7:27 PM
The key callouts on this part are 7/16-20 female SAE 45 degree swivel on one end and a -04 hose connection, and it is a straight configuration. It is an Eaton Aeroquip E-Z Clip Series fitting, with alternate part numbers GA24048-4-4 and C1HL30.
