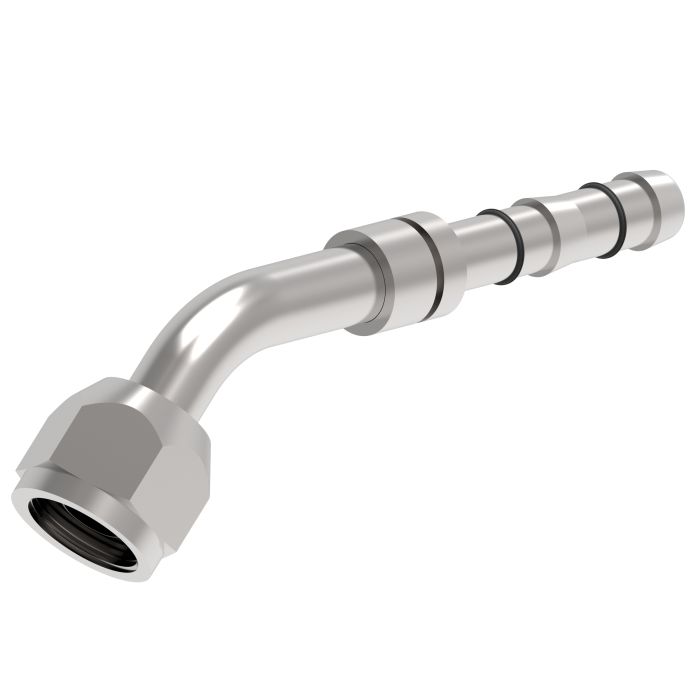

E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, 45 deg Elbow

Ask A Question

Description & Features

Danfoss Power Solutions brings functionality and reliability with its E-Z Clip Series Fitting. This component is engineered for use with a -06 hose, featuring a 5/8-18 UNF female O-ring (short pilot) and a 45-degree elbow configuration.

The fitting's compact 45-degree elbow design makes it suitable for installation in confined areas. The E-Z Clip system eliminates the need for crimping tools, streamlining the assembly process and ensuring secure connections without the risk of leaks.

Constructed to industry standards, the fitting supports a wide range of refrigeration and A/C systems, making it a versatile choice for specialized applications. Its robust build ensures dependable performance, while the lack of a mandrel requirement facilitates a straightforward installation.

MPN: FJ3055-01-0606S

Supplier Part Number: FJ3055-01-0606S

Specifications

Brand
Danfoss
a Dimensions
3.6 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 45 deg Swivel
Construction Style
Reusable
Cut-Off Factor
2.083 in
d Dimensions
2.08 in
Dimensions
4.27 in L x 0.75 in W x 1.56 in H
Drop Dimensions
0.67 in
End Gender 1
Female
End Gender 2
Male
End Size 1
5/8 in
End Size 2
3/8 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
h Dimensions
0.67 in
Hex Size
3/4 in
Hose Dash Size
06
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-06
Series
FJ3055 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -10 Hose, 45 deg Elbow

FJ3055-05-1010S E-Z Clip Series Short Pilot 45 Elbow

7/8-14

10

2.81 in

1.19 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, 45 deg Elbow

FJ3055-03-0808S E-Z Clip Series Short Pilot 45 Elbow

3/4-16

08

2.4 in

0.73 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -10 Hose, 45 deg Elbow

FJ3055-04-0810S E-Z Clip Series Short Pilot 45 Elbow

3/4-16

10

2.4 in

0.73 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -12 Hose, 45 deg Elbow

FJ3055-06-1012S E-Z Clip Series Short Pilot 45 Elbow

7/8-14

12

2.88 in

1-1/4 in

E-Z Clip Series Fitting, 1-1/16-14 Female O-Ring (Short Pilot), -12 Hose, 45 deg Elbow

FJ3055-07-1212S E-Z Clip Series Short Pilot 45 Elbow

1-1/16-14

12

3-3/4 in

1.47 in

Product Questions & Answers (4)

Question by: Norm J on Dec 6, 2025, 10:41 AM
what tool do i need to close the clips on these fittings? got a set coming in and wanna make sure i have everything ready before i start
Answer by: Customer Support on Dec 7, 2025, 6:15 PM
You'll need the FT1357 Clip Closing Pliers specifically for this job. Position them square on the clip connection points and keep them square all the way through closing. You'll also want a guillotine blade or equivalent cutter for squaring up the hose end, and you'll need refrigerant oil compatible with your system to lubricate the nipple before insertion. Skipping that lubrication step makes the nipple a whole lot harder to push in, so don't shortcut it.
Question by: Rod P on Jan 19, 2026, 8:35 AM
trying to replace a fitting on my A/C hose, is this one the 5/8-18 female o-ring with the short pilot and a 45 elbow for -06 hose?
Answer by: Customer Support on Jan 20, 2026, 9:18 PM
Match-up wise, it’s a 45 degree elbow E-Z Clip fitting for -06 hose, with a 5/8-18 female O-ring end and a short pilot. It also calls out seal part 1F40106-06, which is the O-ring seal used with this fitting.
Question by: Travis A on Dec 19, 2025, 2:04 PM
what tool do I need to close these clips once the fitting's on the hose? got the cage snapped in but not sure what finishes the job
Answer by: Customer Support on Dec 21, 2025, 10:11 AM
You'll need the FT1357 Clip Closing Pliers to seat the clips properly. Once you've slid both clips over the cage arms and into the channels, position the pliers square on the clip connection points and keep them square all the way through closing. Staying square matters more than people expect. If the pliers go crooked mid-close, you won't get a reliable connection.
Question by: Steve B on Jul 20, 2025, 9:19 AM
What size hose does this fitting work with? Just want to make sure it's the right one for my setup.
Answer by: Customer Support on Jul 21, 2025, 2:56 PM
This E-Z Clip fitting is made for use with a -06 hose.
