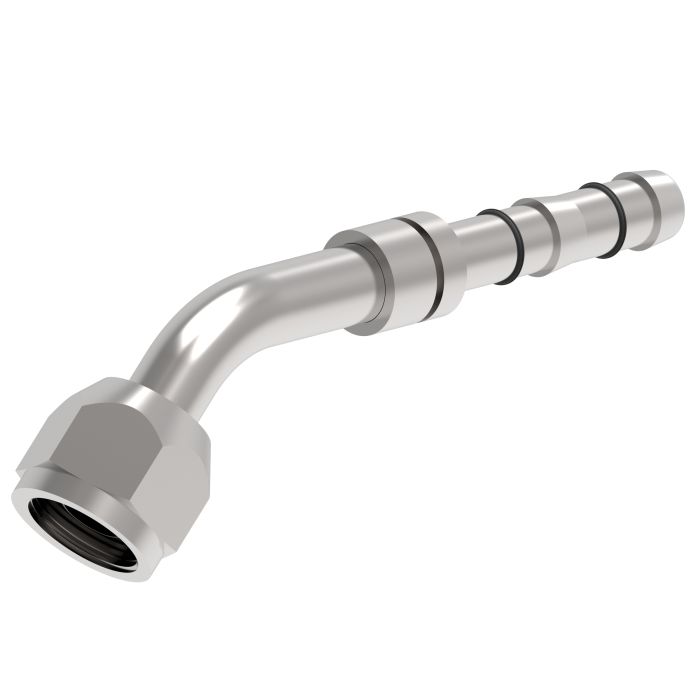

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, 45 deg Elbow

Ask A Question

Description & Features

The 3/4-16 Female O-Ring fitting offers a 45-degree elbow configuration suitable for -08 Hose applications. Designed by Danfoss Power Solutions this part ensures reliable performance with no guesswork or leaking crimps.

This fitting constructed from steel integrates seamlessly into specialized systems that require precise and secure connections. The short pilot design facilitates easier installation in confined spaces reducing the need for extensive workarounds.

The clip closing process is straightforward and does not require a power supply making it highly practical for diverse environments where using pliers is advantageous. Please note the importance of adhering to specified assembly instructions to maintain safety and efficacy.

Supplier Part Number: FJ3055-03-0808S

MPN: FJ3055-03-0808S

Specifications

Brand
Danfoss
a Dimensions
3.94 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 45 deg Swivel
Construction Style
Reusable
Cut-Off Factor
2.4 in
d Dimensions
2.4 in
Dimensions
4.76 in L x 0.88 in W x 1.5 in H
Drop Dimensions
0.73 in
End Gender 1
Female
End Size 1
3/4 in
End Size 2
1/2 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
h Dimensions
0.73 in
Hex Size
7/8 in
Hose Dash Size
08
Inside Diameter
0.31 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-08
Series
FJ3055 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, 45 deg Elbow

FJ3055-01-0606S E-Z Clip Series Short Pilot 45 Elbow

5/8-18

06

2.08 in

0.67 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -10 Hose, 45 deg Elbow

FJ3055-05-1010S E-Z Clip Series Short Pilot 45 Elbow

7/8-14

10

2.81 in

1.19 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -10 Hose, 45 deg Elbow

FJ3055-04-0810S E-Z Clip Series Short Pilot 45 Elbow

3/4-16

10

2.4 in

0.73 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -12 Hose, 45 deg Elbow

FJ3055-06-1012S E-Z Clip Series Short Pilot 45 Elbow

7/8-14

12

2.88 in

1-1/4 in

E-Z Clip Series Fitting, 1-1/16-14 Female O-Ring (Short Pilot), -12 Hose, 45 deg Elbow

FJ3055-07-1212S E-Z Clip Series Short Pilot 45 Elbow

1-1/16-14

12

3-3/4 in

1.47 in

Product Questions & Answers (1)

Question by: Rusty M on Sep 25, 2025, 6:59 PM
trying to put together a -08 hose for an A/C line, is this the 45 elbow with the short pilot and 3/4-16 female o-ring end?
Answer by: Customer Support on Sep 27, 2025, 10:23 AM
For a -08 hose assembly, this fitting matches that setup. It is an E-Z Clip Series 45 degree elbow with a short pilot, and the female end is 3/4-16 UNF with a Female O-Ring seal style.
