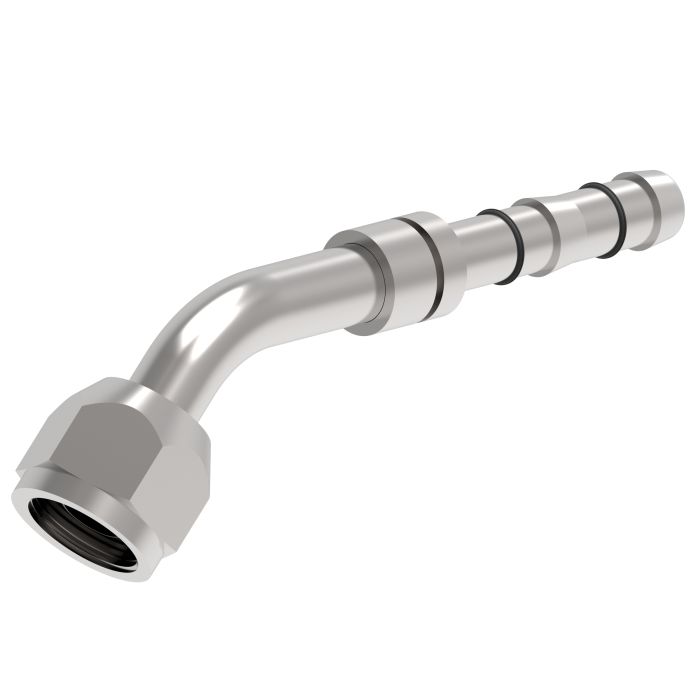

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -10 Hose, 45 deg Elbow

Ask A Question

Description & Features

The E-Z Clip Series Fitting 3/4-16 Female O-Ring (Short Pilot) -10 Hose 45 deg Elbow is designed for reliable and secure connections in specialized industrial applications. Crafted from steel it offers durability and resilience under demanding conditions. This fitting features a 45-degree elbow making it suitable for tight spaces where straight fittings are impractical. Engineered by Danfoss Power Solutions this fitting employs a 3/4-16 UNF thread and requires no mandrel for assembly. It is compatible with -10 hoses and includes a short pilot for enhanced sealing effectiveness. The absence of power supply requirements and easy installation with basic tools like pliers make it an efficient choice for professional settings. Safety and performance are ensured through adherence to specific assembly instructions reducing risks associated with refrigerant gas escape. Note that E-Z Clip components are not reusable. **ECCN:** EAR99 **Supplier Part Number:** FJ3055-04-0810S

Specifications

Brand
Danfoss
a Dimensions
3.95 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Female Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 45 deg Swivel
Construction Style
Reusable
Cut-Off Factor
2.4 in
d Dimensions
2.4 in
Dimensions
4.77 in L x 0.88 in W x 1.84 in H
Drop Dimensions
0.73 in
End Gender 1
Female
End Size 1
3/4 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
h Dimensions
0.73 in
Hex Size
7/8 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-10
Series
FJ3055 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, 45 deg Elbow

FJ3055-01-0606S E-Z Clip Series Short Pilot 45 Elbow

5/8-18

06

2.08 in

0.67 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -10 Hose, 45 deg Elbow

FJ3055-05-1010S E-Z Clip Series Short Pilot 45 Elbow

7/8-14

10

2.81 in

1.19 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, 45 deg Elbow

FJ3055-03-0808S E-Z Clip Series Short Pilot 45 Elbow

3/4-16

08

2.4 in

0.73 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -12 Hose, 45 deg Elbow

FJ3055-06-1012S E-Z Clip Series Short Pilot 45 Elbow

7/8-14

12

2.88 in

1-1/4 in

E-Z Clip Series Fitting, 1-1/16-14 Female O-Ring (Short Pilot), -12 Hose, 45 deg Elbow

FJ3055-07-1212S E-Z Clip Series Short Pilot 45 Elbow

1-1/16-14

12

3-3/4 in

1.47 in

Product Questions & Answers (3)

Question by: Brent S on Sep 10, 2025, 9:20 AM
What size hose does this fitting take? I just wanna make sure I get the right one.
Answer by: Customer Support on Sep 11, 2025, 2:56 PM
This Eaton Aeroquip fitting is made for a -10 size hose.
Question by: Duane H on Mar 19, 2026, 7:42 PM
got a -10 hose and need a 45 to tuck it in tighter. is this one the short pilot female o-ring deal with 3/4-16 threads?
Answer by: Customer Support on Mar 21, 2026, 5:35 PM
For a tight turn, it’s a 45 degree elbow E-Z Clip fitting made for -10 hose, with a 3/4-16 UNF female O-ring connection and a short pilot.
Question by: Freddie A on Sep 12, 2025, 11:52 AM
What's involved in putting one of these E-Z Clip fittings together? Got a hose to make up and never used this style before.
Answer by: Customer Support on Sep 13, 2025, 8:14 PM
Pretty straightforward once you run through it a time or two. Cut your hose square, then slide two appropriately sized clips onto the cut end before anything else. Oil up the nipple good with compressor oil compatible with your refrigerant system, because skipping that step makes insertion a real fight. Push the nipple into the hose until there's zero gap between the hose end and the shoulder on the nipple. From there, snap the cage into the groove on the nipple until it can rotate freely in that groove, then slide your clips over the cage arms and into the channels. Finish it off by closing the clips with FT1357 Clip Closing Pliers, keeping them square on the connection points the whole time. That's all there is to it, no power tools, no crimping machine needed.
