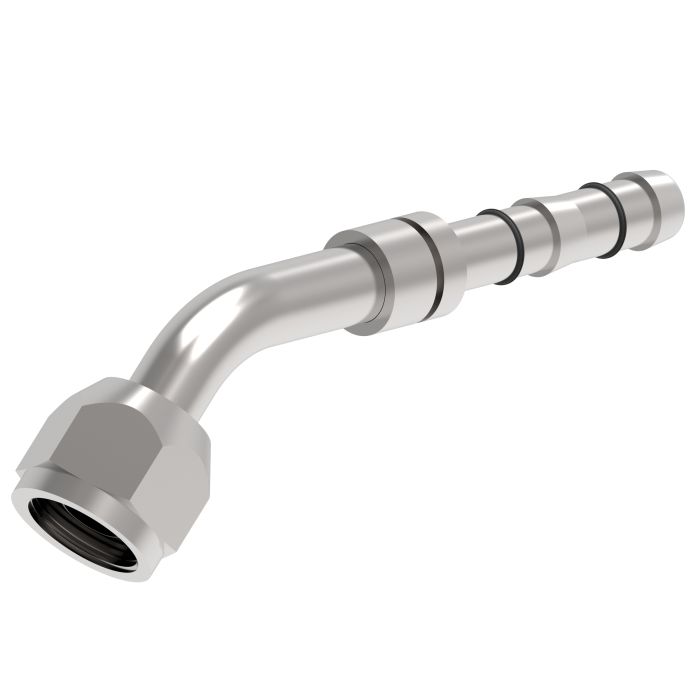

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -10 Hose, 45 deg Elbow

Ask A Question

Description & Features

Offering precision and reliability, this fitting is well-suited for specialized applications. The 45-degree Elbow design ensures compatibility with tight spaces and the E-Z Clip system facilitates a streamlined installation process. Durable construction from high-quality materials guarantees long-lasting performance.

The fitting features a 7/8-14 UNF female O-ring end and a -10 hose size, making it versatile for various uses. The short pilot design provides added stability and sealing efficiency. With no need for power supply during installation, this product is convenient for on-site work.

Designed to minimize leaks, it includes easy-to-use components that eliminate guesswork. Lubrication with appropriate refrigerant oil is required during setup, ensuring optimal insertion and functioning of the nipple assembly.

Brand: Danfoss Power Solutions (II LLC Aeroquip)

ECCN: EAR99

Catalog Number: C1ZT26

UNSPSC: 40183100

Supplier Part Number: FJ3055-05-1010S

Specifications

Brand
Danfoss
a Dimensions
4.37 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 45 deg Swivel
Construction Style
Reusable
Cut-Off Factor
2.81 in
d Dimensions
2.81 in
Dimensions
5.31 in L x 1.06 in W x 2.09 in H
Drop Dimensions
1.19 in
End Gender 1
Female
End Size 1
7/8 in
End Size 2
5/8 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
h Dimensions
1.19 in
Hex Size
1.06 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-10
Series
FJ3055 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, 45 deg Elbow

FJ3055-01-0606S E-Z Clip Series Short Pilot 45 Elbow

5/8-18

06

2.08 in

0.67 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, 45 deg Elbow

FJ3055-03-0808S E-Z Clip Series Short Pilot 45 Elbow

3/4-16

08

2.4 in

0.73 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -10 Hose, 45 deg Elbow

FJ3055-04-0810S E-Z Clip Series Short Pilot 45 Elbow

3/4-16

10

2.4 in

0.73 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -12 Hose, 45 deg Elbow

FJ3055-06-1012S E-Z Clip Series Short Pilot 45 Elbow

7/8-14

12

2.88 in

1-1/4 in

E-Z Clip Series Fitting, 1-1/16-14 Female O-Ring (Short Pilot), -12 Hose, 45 deg Elbow

FJ3055-07-1212S E-Z Clip Series Short Pilot 45 Elbow

1-1/16-14

12

3-3/4 in

1.47 in

Product Questions & Answers (3)

Question by: Melvin A on Aug 8, 2025, 8:23 PM
what tool do i need to close the clips on this fitting? got the hose cut and nipple in but not sure what closes it up proper
Answer by: Customer Support on Aug 10, 2025, 2:46 PM
Closing the clips requires the FT1357 Clip Closing Pliers. Position them square on the clip connection points and keep them square all the way through the close. The fitting also calls for a guillotine blade or equivalent cutter, two properly sized clips, a cage, and refrigerant oil compatible with your system to lubricate the nipple before insertion.
Question by: Debbie M on Jul 11, 2025, 10:23 AM
Will this fitting work with just any old hose, or do I need something special?
Answer by: Customer Support on Jul 13, 2025, 6:36 AM
This fitting is designed for use with GH134 Multi-Refrigerant hose to ensure a reliable and safe connection.
Question by: Debbie W on Mar 7, 2026, 6:35 PM
trying to replace a fitting on a -10 hose, is this the one with the 7/8-14 female o-ring and a 45 elbow?
Answer by: Customer Support on Mar 9, 2026, 1:56 PM
It matches a -10 hose fitting with a 45 degree elbow and a 7/8-14 UNF female O-ring end using a short pilot. The part is identified as an E-Z Clip Series fitting and includes seal part 1F40106-10.
