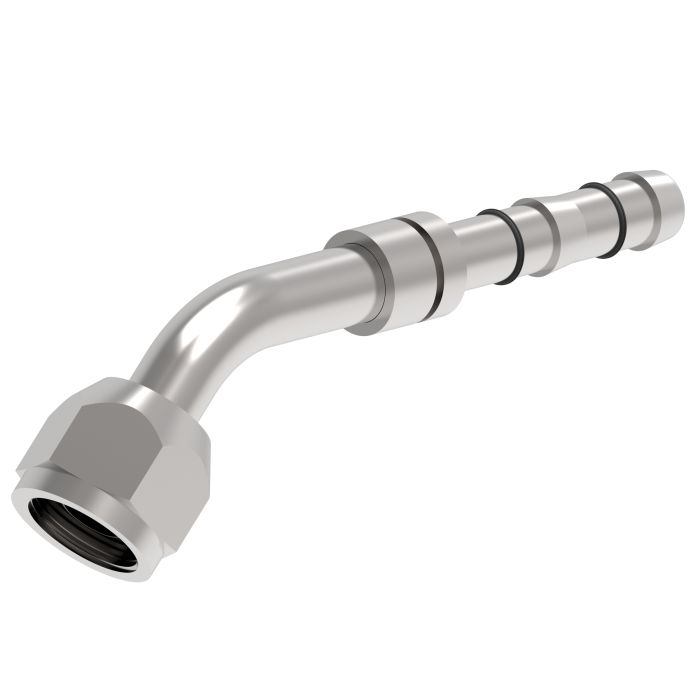

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -12 Hose, 45 deg Elbow

Ask A Question

Description & Features

The E-Z Clip Series Fitting 7/8-14 Female O-Ring (Short Pilot) -12 Hose 45 deg Elbow from Danfoss Power Solutions is a robust and reliable component for specialized applications. This fitting features a 45-degree elbow design optimizing it for use in confined spaces without compromising the performance.

Constructed with high-precision to fit a -12 hose the product ensures no leaking crimps or guesswork making it highly suitable for complex installations. The fitting incorporates a 7/8-14 Female O-Ring enhancing the seal quality and stability.

Designed to be convenient this fitting does not require a power supply and can be installed using simple tools like pliers. Its design facilitates easy use in tight areas ensuring an efficient and seamless installation process.

The assembly process requires accurate hose cutting fitting insertion and clip closure ensuring the fitting remains secure and effective. It is compatible with GH134 Multi-Refrigerant hose and appropriate sized clips.

ECCN: EAR99

Supplier Part Number: FJ3055-06-1012S

Specifications

Brand
Danfoss
a Dimensions
4.46 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
5/8 in
Connection Type
Female Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 45 deg Swivel
Construction Style
Reusable
Cut-Off Factor
2-7/8 in
d Dimensions
2.88 in
Dimensions
5.43 in L x 1.06 in W x 2.25 in H
Drop Dimensions
1-1/4 in
End Gender 1
Female
End Size 1
7/8 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
h Dimensions
1-1/4 in
Hex Size
1.06 in
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-12
Series
FJ3055 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, 45 deg Elbow

FJ3055-01-0606S E-Z Clip Series Short Pilot 45 Elbow

5/8-18

06

2.08 in

0.67 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -10 Hose, 45 deg Elbow

FJ3055-05-1010S E-Z Clip Series Short Pilot 45 Elbow

7/8-14

10

2.81 in

1.19 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, 45 deg Elbow

FJ3055-03-0808S E-Z Clip Series Short Pilot 45 Elbow

3/4-16

08

2.4 in

0.73 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -10 Hose, 45 deg Elbow

FJ3055-04-0810S E-Z Clip Series Short Pilot 45 Elbow

3/4-16

10

2.4 in

0.73 in

E-Z Clip Series Fitting, 1-1/16-14 Female O-Ring (Short Pilot), -12 Hose, 45 deg Elbow

FJ3055-07-1212S E-Z Clip Series Short Pilot 45 Elbow

1-1/16-14

12

3-3/4 in

1.47 in

Product Questions & Answers (1)

Question by: Cheryl W on Aug 31, 2025, 12:44 PM
what all do I need to put this thing together besides the fitting itself? asking cause I don't wanna be halfway through a job and missing something
Answer by: Customer Support on Sep 1, 2025, 5:30 PM
You'll need a few specific items to do the assembly right. Two appropriately sized clips and a cage go on with each fitting. The nipple gets lubricated with refrigerant or A/C compressor oil before insertion, so have that on hand. For cutting the hose you need a guillotine blade like the FT1356 or something equivalent that gives you a clean square cut. Then to close the clips you need the FT1357 Clip Closing Pliers. The hose itself has to be GH134 Multi-Refrigerant hose. That's the full kit of what you're working with.
