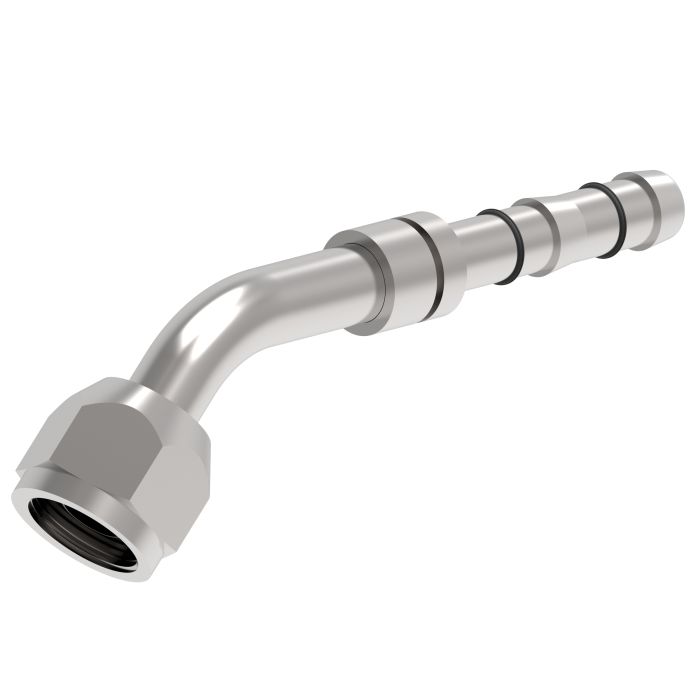

E-Z Clip Series Fitting, 1-1/16-14 Female O-Ring (Short Pilot), -12 Hose, 45 deg Elbow

Ask A Question

Description & Features

The Aeroquip EZ Clip 45-degree female O-ring fitting is designed for specialized applications where secure and reliable connections are essential. This fitting features a 1-1/16-14 UNF thread and is compatible with -12 hose size. The short pilot design ensures a precise fit while the 45-degree elbow configuration allows for flexible installation in confined spaces.

Constructed by Danfoss Power Solutions this fitting offers no leaking crimps and eliminates the need for guesswork or power supply. This makes it exceptionally easy to use even in remote or constrained environments. The fitting is designed to work with a GH134 multi-refrigerant hose and includes the necessary components for secure assembly such as two appropriately sized clips and a cage.

The nipple assembly is lubricated with refrigerant oil compatible with A/C systems ensuring a smooth and secure insertion.

Supplier Part Number: FJ3055-07-1212S

ECCN: EAR99

Specifications

Brand
Danfoss
a Dimensions
5.33 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 45 deg Swivel
Construction Style
Reusable
Cut-Off Factor
3-3/4 in
d Dimensions
3-3/4 in
Dimensions
6.53 in L x 1.25 in W x 2.6 in H
Drop Dimensions
1.47 in
End Gender 1
Female
End Size 1
12
End Size 2
3/4 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
h Dimensions
1.47 in
Hex Size
1.26 in
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-12
Series
FJ3055 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-14
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, 45 deg Elbow

FJ3055-01-0606S E-Z Clip Series Short Pilot 45 Elbow

5/8-18

06

2.08 in

0.67 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -10 Hose, 45 deg Elbow

FJ3055-05-1010S E-Z Clip Series Short Pilot 45 Elbow

7/8-14

10

2.81 in

1.19 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, 45 deg Elbow

FJ3055-03-0808S E-Z Clip Series Short Pilot 45 Elbow

3/4-16

08

2.4 in

0.73 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -10 Hose, 45 deg Elbow

FJ3055-04-0810S E-Z Clip Series Short Pilot 45 Elbow

3/4-16

10

2.4 in

0.73 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -12 Hose, 45 deg Elbow

FJ3055-06-1012S E-Z Clip Series Short Pilot 45 Elbow

7/8-14

12

2.88 in

1-1/4 in

Product Questions & Answers (2)

Question by: Steve C on Nov 4, 2025, 6:14 AM
trying to swap a 90 for a 45, is this the EZ Clip female o-ring one with 1-1/16-14 threads for -12 hose?
Answer by: Customer Support on Nov 5, 2025, 10:33 AM
It matches a 1-1/16-14 UNF female O-ring end with a short pilot, and the hose side is for -12 hose. The body is a 45 degree elbow, so it’s the right style if you’re moving to a 45 while keeping that thread and hose size the same.
Question by: Eddie H on Feb 28, 2026, 1:23 PM
what tool do you actually need to close them clips on this fitting? got the hose cut and ready to go but don't want to be messing around trying to pinch them shut with something that ain't right
Answer by: Customer Support on Mar 2, 2026, 6:19 AM
Closing the clips on this system takes the FT1357 Clip Closing Pliers. You square those pliers up directly on the clip connection points and keep them square all the way through the closing motion. Using the wrong tool risks a bad seal, and these components aren't meant to be reused, so getting it right the first time matters.
