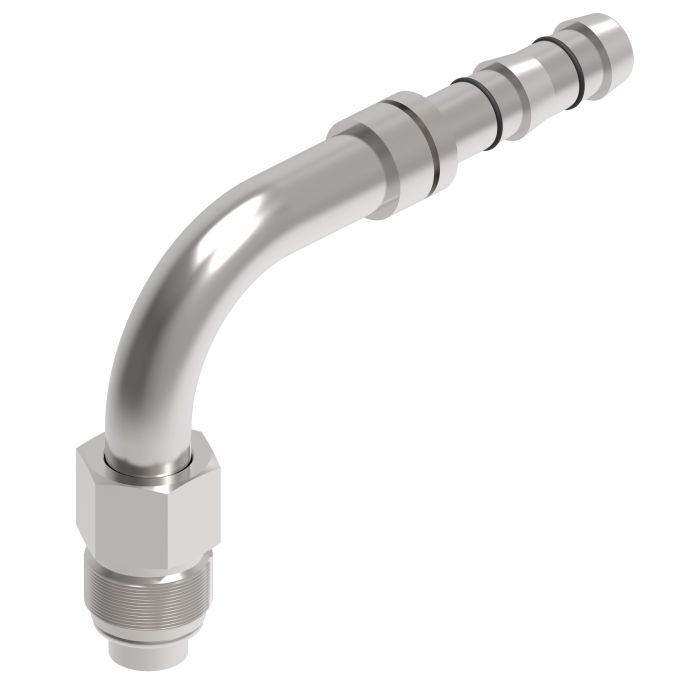

E-Z Clip Series Fitting, 7/8-18 Male O-Ring (Short Pilot), -10 Hose, 90 deg Elbow

Ask A Question

Description & Features

Danfoss Power Solutions E-Z Clip Series Short Pilot 90 Elbow FJ3019-07-1010S ensures precise and reliable connections in specialized applications. This fitting is designed with a 7/8-18 male O-ring and is compatible with -10 hoses. The short pilot design provides easy integration, while the 90-degree elbow enhances the fitting's adaptability.

Engineered for efficiency, this fitting eliminates the need for guesswork and power supply during installations. The use of clip closing pliers FT1357 ensures secure connections, and the fitting is suitable for confined spaces.

The fitting's dimensions are precisely calibrated: a drop dimension of 2.45 inches guarantees optimal fit and function. The materials used are tailored for compatibility with refrigeration and A/C systems, preventing leaks and ensuring durability.

Supplier Part Number: FJ3019-07-1010S

MPN: EAR99

Specifications

Brand
Danfoss
a Dimensions
4.58 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Hose, Male O-ring Short Pilot
Connection Type 1
Hose
Connection Type 2
Male O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
3.03 in
d Dimensions
2.67 in
Dimensions
4.66 in L x 0.88 in W x 2.87 in H
Drop Dimensions
2.45 in
End Gender 1
Male
End Gender 2
Male
End Size 1
7/8 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
h Dimensions
2.45 in
Hex Size
0.87 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-10
Series
FJ3019 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
7/8-18

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Male O-Ring (Short Pilot), -06 Hose, 90 deg Elbow

FJ3019-03-0606S E-Z Clip Series Short Pilot 90 Elbow

5/8-18

06

1.8 in

1.77 in
