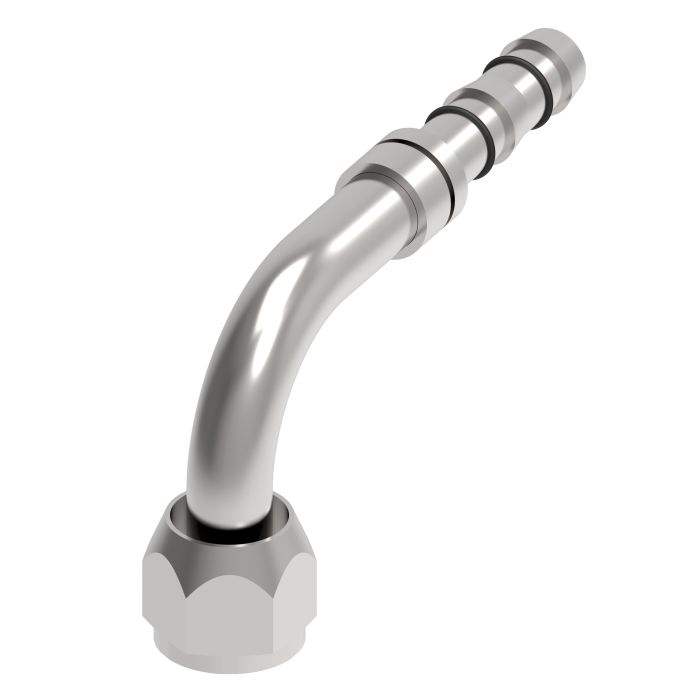

E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, 90 deg Elbow

Description & Features

The E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, 90 deg Elbow from Danfoss Power Solutions is a specialized component designed for precision and reliability. Its 90-degree elbow design ensures optimal routing in tight compartments, while the 5/8-18 female O-ring connection secures a leak-free assembly.

This fitting requires no power supply and is as easy to use as a pair of pliers. It's engineered with no guesswork, featuring no leaking crimps, making it dependable in critical applications.

The fitting accommodates -06 hoses and is made from robust materials for long-lasting performance. It stands out due to its practical installation process, which includes steps such as slipping on clips and snapping on the cage.

Supplier Part Number: FJ5985-0606S

MPN: C1EY84

Specifications

Brand Danfoss	a Dimensions 3.32 in	Compatible Hose ID 0.38 in	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Female Tube, Hose	Connection Type 1 Hose	Connection Type 2 Female Tube O-ring Short Pilot	Construction Style Reusable	Cut-Off Factor 1.79 in	d Dimensions 1.79 in	Dimensions 3.32 in L x 0.75 in W x 2.17 in H	Drop Dimensions 0.38 in	End Gender 1 Female	End Gender 2 Male	End Size 1 06	End Size 2 3/8 in	Finish Zinc-Plated	Fitting Type 90 deg Elbow	For Use With E-Z Clip System A/C Refrigeration GH134 Series Hoses	h Dimensions 1.38 in	Hex Size 3/4 in	Hose Dash Size 06	Inside Diameter 0.22 in	Material Steel	Material Construction Carbon Steel	Seal Material HNBR	Seal Part If Included 1F40106-06	Series FJ5985 Series	Sg 1 Cut The Hose Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length	Sg 2 Slip On Two Clips Install Two Proper-Sized Clips Onto the Cut End of the Hose	Sg 3 Oil The Nipple Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion	Sg 4 Insert The Nipple Into The Hose Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple	Sg 5 Snap On The Cage Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove	Sg 6 Slide The Clips Slide the Clips Over the Cage Arms and into the Channels on Each Arm	Sg 7 Close The Clips Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip	Sg Caution Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona	Sg Material Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla	Thread Sealant Without Thread Sealant	Thread Size 5/8-18	Thread Type UNF

Similar Products

Model Number	Thread Size	Hose Dash Size	d Dimensions	h Dimensions
FJ5985-0808S E-Z Clip Series Short Pilot 90 Elbow	3/4-16	08	2.23 in	1.62 in
FJ5985-0608S E-Z Clip Series Short Pilot 90 Elbow	5/8-18	08	1.79 in	1.38 in
FJ5985-0810S E-Z Clip Series Short Pilot 90 Elbow	3/4-16	10	2.23 in	1.62 in
FJ5985-1012S E-Z Clip Series Short Pilot 90 Elbow	7/8-14	12	2.67 in	1.89 in
FJ5985-1010S E-Z Clip Series Short Pilot 90 Elbow	7/8-14	10	2.67 in	1.89 in
FJ5985-1212S E-Z Clip Series Short Pilot 90 Elbow	1-1/16-14	12	3.16 in	2.56 in

Product Questions & Answers (4)

Question by: Chad W on Jan 24, 2026, 7:18 AM

trying to replace a 90 degree fitting on my -06 A/C hose, what do i need to match up on this one?

Answer by: Customer Support on Jan 26, 2026, 6:48 AM

Match the hose size and the threaded end details. This is a 90 degree elbow for a -06 hose, and the female O-ring end is 5/8-18 with a short pilot. The other end is the line, hose, or tube side.

Question by: Glen R on Mar 27, 2025, 6:45 AM

putting together a new AC line and need to know if i gotta use a special crimper for these ez clips or if regular pliers work

Answer by: Customer Support on Mar 29, 2025, 6:10 AM

You have to use the FT1357 Clip Closing Pliers to secure these fittings. Regular pliers will not keep the connection points perfectly square during closing. That square alignment is required to prevent leaks and ensure a safe assembly. Remember to also lubricate the nipple heavily with your AC system compressor oil before pushing it into the hose.

Question by: Duane B on Nov 17, 2025, 3:19 PM

trying to swap out a 90 elbow on my -06 hose, is this the one with the 5/8-18 female o-ring and short pilot?

Answer by: Customer Support on Nov 19, 2025, 1:57 PM

Match it up to the key callouts: this fitting is an E-Z Clip 90 degree elbow for -06 hose with a 5/8-18 female O-ring seal connection, and it uses the short pilot style. If those are the same details on what you are replacing, you are looking at the right configuration.

Question by: Lyle R on Jun 18, 2025, 8:20 PM

Will this fitting work with a standard -06 hose? Just want to make sure before I order.

Answer by: Customer Support on Jun 20, 2025, 7:40 AM

It's designed for use with -06 hoses, so you should be good to go.
