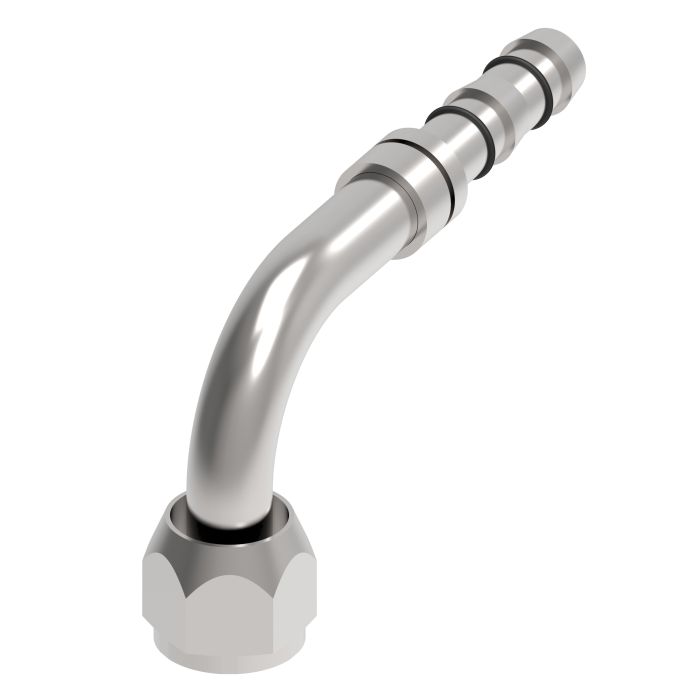

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -10 Hose, 90 deg Elbow

Ask A Question

Description & Features

The E-Z Clip Series Fitting 3/4-16 Female O-Ring (Short Pilot) -10 Hose 90 deg Elbow offers a reliable and robust solution for specialized applications. Designed by Danfoss Power Solutions this fitting ensures a secure and leak-free connection utilizing a 3/4-16 female O-ring design. This fitting features a 90-degree elbow optimized for constrained spaces ensuring ease of installation. The no-crimp and no-power requirement design makes it easy to assemble using basic tools delivering reliable performance without the need for additional equipment. The material and construction are designed to be compatible with refrigeration and A/C systems ensuring long-term reliability. The fitting includes components that should not be reused or replaced to maintain its integrity and performance.

Segment Code: seg_code_a

Supplier Part Number: FJ5985-0810S

Specifications

Brand
Danfoss
a Dimensions
3.78 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
2.23 in
d Dimensions
2.23 in
Dimensions
3.78 in L x 0.88 in W x 2.42 in H
Drop Dimensions
1.62 in
End Gender 1
Female
End Gender 2
Male
End Size 1
3/4 in
End Size 2
5/8 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
h Dimensions
1.62 in
Hex Size
0.87 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-10
Series
FJ5985 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, 90 deg Elbow

FJ5985-0606S E-Z Clip Series Short Pilot 90 Elbow

5/8-18

06

1.79 in

1.38 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, 90 deg Elbow

FJ5985-0808S E-Z Clip Series Short Pilot 90 Elbow

3/4-16

08

2.23 in

1.62 in

E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -08 Hose, 90 deg Elbow

FJ5985-0608S E-Z Clip Series Short Pilot 90 Elbow

5/8-18

08

1.79 in

1.38 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -12 Hose, 90 deg Elbow

FJ5985-1012S E-Z Clip Series Short Pilot 90 Elbow

7/8-14

12

2.67 in

1.89 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -10 Hose, 90 deg Elbow

FJ5985-1010S E-Z Clip Series Short Pilot 90 Elbow

7/8-14

10

2.67 in

1.89 in

E-Z Clip Series Fitting, 1-1/16-14 Female O-Ring (Short Pilot), -12 Hose, 90 deg Elbow

FJ5985-1212S E-Z Clip Series Short Pilot 90 Elbow

1-1/16-14

12

3.16 in

2.56 in

Product Questions & Answers (3)

Question by: Norm H on Jun 6, 2025, 5:25 PM
Will this fitting work with standard AC hoses?
Answer by: Customer Support on Jun 7, 2025, 7:50 PM
This E-Z Clip series fitting is designed for use with GH134 Multi-Refrigerant hose. Using other hose types may result in leaks or unsafe assemblies.
Question by: Gary C on Apr 4, 2025, 11:40 AM
what tool do i need to close the clips on these fittings? got a couple on hand but not sure if i already have what it takes or need to order something else too
Answer by: Customer Support on Apr 5, 2025, 4:25 PM
Closing the clips requires the FT1357 Clip Closing Pliers. Those are a specific tool for this job and need to be positioned square on the clip connection points when you close them. You'll also want a guillotine blade, the FT1356 or something equivalent, to get a clean square cut on the hose before you start. If you're missing either of those, go ahead and pick them up before you begin the assembly.
Question by: Hugh H on Jan 1, 2026, 7:26 PM
Will this fitting hold up okay in a refrigeration system?
Answer by: Customer Support on Jan 3, 2026, 8:43 AM
Absolutely, this fitting's material and construction were selected for compatibility with refrigeration and A/C systems, so it should give you long-term reliability.
