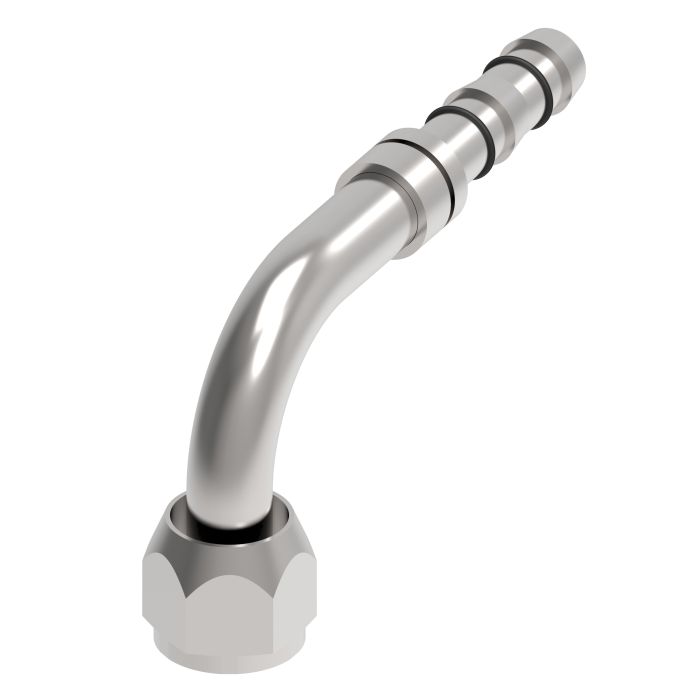

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -10 Hose, 90 deg Elbow

Description & Features

The E-Z Clip Series Fitting 7/8-14 Female O-Ring (Short Pilot) -10 Hose 90 deg Elbow designed by Danfoss Power Solutions (II LLC Aeroquip) offers a reliable connection for applications requiring precise fitting and seal integrity.

With its 1.89-inch drop dimension and fitting simplicity this product eliminates the need for power supply reducing installation complexity. The component's 90-degree elbow configuration and compatibility with -10 size hoses ensure adaptability in confined areas.

Engineered to prevent leakage and enhance durability the fitting features a robust female O-ring connection and a 7/8-14 thread. The lightweight design requires no mandrel making it efficient for various industrial applications.

Compliant with industry standards (UNSPSC 40183100) this fitting is essential for specialized products where performance reliability is non-negotiable. It is recommended to follow provided assembly instructions to avoid safety and compliance issues.

MPN: C1EY88

Supplier Part Number: FJ5985-1010S

Specifications

Brand Danfoss	a Dimensions 4.22 in	Compatible Hose ID 0.62 in	Connection Size 1 5/8 in	Connection Size 2 5/8 in	Connection Type Female Tube, Hose	Connection Type 1 Hose	Connection Type 2 Female Tube O-ring Short Pilot	Construction Style Reusable	Cut-Off Factor 2.67 in	d Dimensions 2.67 in	Dimensions 4.22 in L x 1.06 in W x 2.76 in H	Drop Dimensions 1.89 in	End Gender 1 Female	End Gender 2 Male	End Size 1 7/8 in	End Size 2 5/8 in	Finish Zinc-Plated	Fitting Type 90 deg Elbow	For Use With E-Z Clip System A/C Refrigeration GH134 Series Hoses	h Dimensions 1.89 in	Hex Size 1.06 in	Hose Dash Size 10	Inside Diameter 0.37 in	Material Steel	Material Construction Carbon Steel	Seal Material HNBR	Seal Part If Included 1F40106-10	Series FJ5985 Series	Sg 1 Cut The Hose Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length	Sg 2 Slip On Two Clips Install Two Proper-Sized Clips Onto the Cut End of the Hose	Sg 3 Oil The Nipple Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion	Sg 4 Insert The Nipple Into The Hose Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple	Sg 5 Snap On The Cage Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove	Sg 6 Slide The Clips Slide the Clips Over the Cage Arms and into the Channels on Each Arm	Sg 7 Close The Clips Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip	Sg Caution Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona	Sg Material Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla	Thread Sealant Without Thread Sealant	Thread Size 7/8-14	Thread Type UNF

Similar Products

Model Number	Thread Size	Hose Dash Size	d Dimensions	h Dimensions
FJ5985-0606S E-Z Clip Series Short Pilot 90 Elbow	5/8-18	06	1.79 in	1.38 in
FJ5985-0808S E-Z Clip Series Short Pilot 90 Elbow	3/4-16	08	2.23 in	1.62 in
FJ5985-0608S E-Z Clip Series Short Pilot 90 Elbow	5/8-18	08	1.79 in	1.38 in
FJ5985-0810S E-Z Clip Series Short Pilot 90 Elbow	3/4-16	10	2.23 in	1.62 in
FJ5985-1012S E-Z Clip Series Short Pilot 90 Elbow	7/8-14	12	2.67 in	1.89 in
FJ5985-1212S E-Z Clip Series Short Pilot 90 Elbow	1-1/16-14	12	3.16 in	2.56 in

Product Questions & Answers (3)

Question by: Wade B on Dec 7, 2025, 12:49 PM

trying to swap out a 90 elbow on a -10 hose, is this the one with the 7/8-14 female o-ring and that short pilot?

Answer by: Customer Support on Dec 9, 2025, 7:57 AM

Match it up by the connection details: it’s a 90 degree elbow E-Z Clip fitting for -10 hose with a 7/8-14 female O-ring seal port (short pilot). The other end is the hose connection side for the E-Z Clip system, and the drop dimension is 1.89 inches.

Question by: Patty M on Jun 22, 2025, 1:26 PM

what's the deal with the short pilot on this fitting versus a standard female o-ring end? trying to figure out if it'll work in a spot where clearance is real tight

Answer by: Customer Support on Jun 23, 2025, 7:39 PM

Short pilot female O-ring ends have a reduced nose length compared to standard pilots, which is exactly what makes them useful when you're working in a cramped space and a full-length pilot just won't seat without interference. The 90-degree elbow on this fitting adds to that advantage since it redirects the hose run instead of forcing a straight shot through a tight area. It connects with a 7/8-14 thread on the female O-ring end and accepts a -10 size hose on the other end, so as long as your port and hose size match up, the geometry here is built for confined routing situations.

Question by: Lee O on Feb 21, 2026, 1:42 PM

So this fitting will work with a standard -10 hose, right? Just want to double-check before I order.

Answer by: Customer Support on Feb 23, 2026, 7:58 AM

Yes, this E-Z Clip series fitting is compatible with -10 size hoses.
