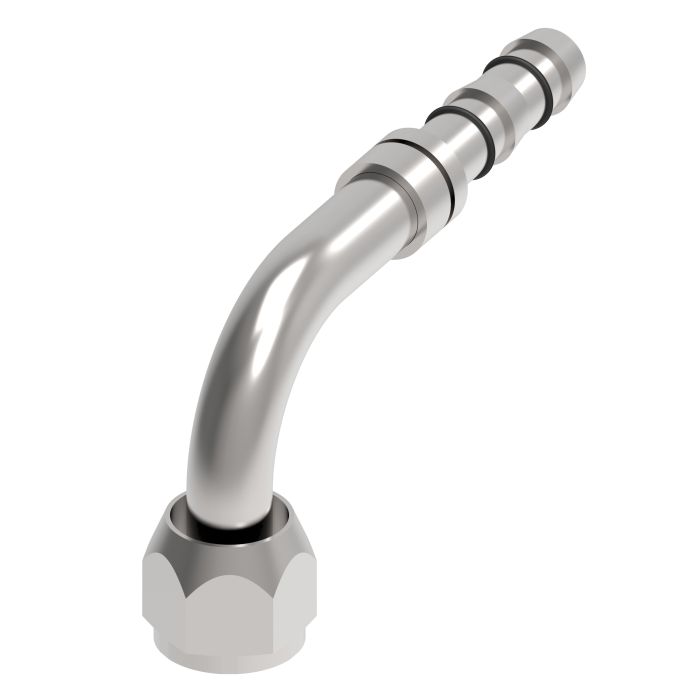

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -12 Hose, 90 deg Elbow

Ask A Question

Description & Features

The E-Z Clip Series Fitting featuring a 7/8-14 Female O-Ring (Short Pilot) and 90-degree elbow is designed for industry-specific applications that demand reliable and secure connections. Manufactured by Danfoss Power Solutions (II LLC Aeroquip) this fitting is tailored for a -12 hose ensuring compatibility with specialized systems.

With a focus on durability it eliminates the need for power supplies making it practical for confined spaces. This fitting includes a precise 1.89-inch drop dimension and a reliable 7/8-14 thread.

Engineered to prevent leaks it requires no additional thread sealants reducing the risk of unintended refrigerant escape. The fitting system integrates seamlessly promoting efficient assembly with straightforward clip engagement and nipple insertion.

The unique design eschews the need for mandrel use simplifying the installation process while adhering to safety guidelines. Note that the E-Z Clip components are not reusable ensuring the integrity and longevity of each setup.

MPN: FJ5985-1012S

Supplier Part Number: FJ5985-1012S

Specifications

Brand
Danfoss
a Dimensions
4.24 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
5/8 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
2.67 in
d Dimensions
2.67 in
Dimensions
4.24 in L x 1.06 in W x 2.84 in H
Drop Dimensions
1.89 in
End Gender 1
Female
End Gender 2
Male
End Size 1
7/8 in
End Size 2
3/4 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
h Dimensions
1.89 in
Hex Size
1.06 in
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-12
Series
FJ5985 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, 90 deg Elbow

FJ5985-0606S E-Z Clip Series Short Pilot 90 Elbow

5/8-18

06

1.79 in

1.38 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, 90 deg Elbow

FJ5985-0808S E-Z Clip Series Short Pilot 90 Elbow

3/4-16

08

2.23 in

1.62 in

E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -08 Hose, 90 deg Elbow

FJ5985-0608S E-Z Clip Series Short Pilot 90 Elbow

5/8-18

08

1.79 in

1.38 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -10 Hose, 90 deg Elbow

FJ5985-0810S E-Z Clip Series Short Pilot 90 Elbow

3/4-16

10

2.23 in

1.62 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -10 Hose, 90 deg Elbow

FJ5985-1010S E-Z Clip Series Short Pilot 90 Elbow

7/8-14

10

2.67 in

1.89 in

E-Z Clip Series Fitting, 1-1/16-14 Female O-Ring (Short Pilot), -12 Hose, 90 deg Elbow

FJ5985-1212S E-Z Clip Series Short Pilot 90 Elbow

1-1/16-14

12

3.16 in

2.56 in

Product Questions & Answers (6)

Question by: Lance P on Aug 23, 2025, 6:55 AM
fitting says "short pilot" on the o-ring end -- does that affect how it seats against the port compared to a standard pilot length?
Answer by: Customer Support on Aug 25, 2025, 6:50 AM
Short pilot just means the o-ring boss thread engagement area is slightly shorter than a full-length pilot version. For most standard SAE O-Ring Face Seal ports, it functions the same way in terms of sealing, but the shorter pilot can make installation easier in tight spaces where a longer pilot would be awkward to start threading. The o-ring on that end handles the actual seal, so pilot length is more about physical clearance and ease of engagement than sealing performance.
Question by: Wayne R on Dec 19, 2025, 10:26 AM
trying to build a -12 A/C hose and need a 90 elbow, is this one the 7/8-14 female o-ring short pilot deal?
Answer by: Customer Support on Dec 21, 2025, 6:20 AM
It matches a 7/8-14 female O-ring seal (ORS) port with a short pilot, and it’s made for -12 hose in a 90 degree elbow configuration.
Question by: Dustin H on Dec 22, 2025, 10:37 AM
Will this fitting work with just any old hose, or does it need something special?
Answer by: Customer Support on Dec 24, 2025, 6:02 AM
It needs Aeroquip GH134 Multi-Refrigerant hose. Using other hoses might cause leaks or be unsafe.
Question by: Dwayne G on Apr 13, 2025, 7:12 AM
trying to swap a low-side A/C hose end, is this the 90 degree short-pilot female o-ring fitting for a -12 hose with 7/8-14 threads?
Answer by: Customer Support on Apr 14, 2025, 1:24 PM
It matches a -12 hose E-Z Clip nipple assembly with a 90 degree elbow and a 7/8-14 female O-ring (short pilot) connection. It also calls out a 1.89 inch drop dimension, so the elbow offset is built around that geometry.
Question by: Donna F on Jan 22, 2026, 4:56 PM
what tool do i need to close the clips on this fitting? got the hose cut and nipple in but not sure if any regular pliers will do the job
Answer by: Customer Support on Jan 24, 2026, 1:10 PM
You'll need the FT1357 Clip Closing Pliers specifically for this. Regular pliers won't position squarely on the clip connection points the way that tool does, and staying square during the close is what makes the connection reliable. The pliers need to sit flush on those contact points and hold that position all the way through. Using a substitute risks an uneven close, which can compromise the whole assembly.
Question by: Terry P on Oct 27, 2025, 10:49 AM
So, this fitting here, it's good for a -12 hose, right? Just wanna be double sure before I order.
Answer by: Customer Support on Oct 29, 2025, 7:49 AM
Yes, this E-Z Clip series fitting is indeed designed for use with a -12 hose.
