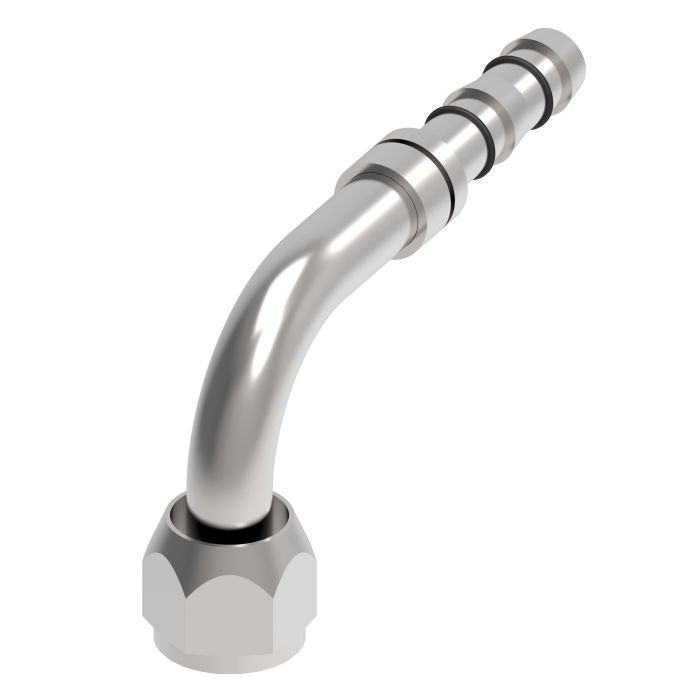

E-Z Clip Series Fitting, 1-1/16-14 Female O-Ring (Short Pilot), -12 Hose, 90 deg Elbow

Ask A Question

Description & Features

The E-Z Clip Series Fitting offers a 1-1/16-14 Female O-Ring (Short Pilot) designed for -12 Hose compatibility and incorporates a 90-degree elbow configuration. Engineered by Danfoss Power Solutions with catalog number C1EY90 this fitting meets industry-specific needs with its reliable and precise design.

The fitting's 90-degree elbow aids in minimizing space requirements making it ideal for specialized applications in tight spaces. Its female O-ring design ensures a secure and leak-free connection crucial for maintaining system integrity.

The assembly process utilizes no power supply and eliminates the need for crimping simplifying installation even in confined areas. Featuring materials compatible with various refrigerants this product conforms to high standards of quality and durability.

The E-Z Clip system emphasizes safety and efficiency aided by the ease of use similar to a pair of pliers. Each fitting is equipped with specially designed components that should not be reused ensuring long-term reliability.

MPN: EAR99

Supplier Part Number: FJ5985-1212S

Specifications

Brand
Danfoss
a Dimensions
4.74 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
3.16 in
d Dimensions
3.16 in
Dimensions
4.74 in L x 1.25 in W x 3.53 in H
Drop Dimensions
2.56 in
End Gender 1
Female
End Gender 2
Male
End Size 1
12
End Size 2
3/4 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
h Dimensions
2.56 in
Hex Size
1.26 in
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-12
Series
FJ5985 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-14
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, 90 deg Elbow

FJ5985-0606S E-Z Clip Series Short Pilot 90 Elbow

5/8-18

06

1.79 in

1.38 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, 90 deg Elbow

FJ5985-0808S E-Z Clip Series Short Pilot 90 Elbow

3/4-16

08

2.23 in

1.62 in

E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -08 Hose, 90 deg Elbow

FJ5985-0608S E-Z Clip Series Short Pilot 90 Elbow

5/8-18

08

1.79 in

1.38 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -10 Hose, 90 deg Elbow

FJ5985-0810S E-Z Clip Series Short Pilot 90 Elbow

3/4-16

10

2.23 in

1.62 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -12 Hose, 90 deg Elbow

FJ5985-1012S E-Z Clip Series Short Pilot 90 Elbow

7/8-14

12

2.67 in

1.89 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -10 Hose, 90 deg Elbow

FJ5985-1010S E-Z Clip Series Short Pilot 90 Elbow

7/8-14

10

2.67 in

1.89 in

Product Questions & Answers (3)

Question by: Tony O on Nov 24, 2025, 3:48 PM
Putting one of these on a -12 hose right now and just wanna make sure I got the steps right before I close the clips. Walk me through it?
Answer by: Customer Support on Nov 26, 2025, 7:11 AM
Cut the hose square, then slide two clips onto the cut end before doing anything else. Lubricate the nipple with compressor oil compatible with your refrigeration or A/C system and don't skip that step, it's what lets the nipple seat without a fight. Push the nipple in until there's no gap between the hose end and the shoulder on the nipple. Snap the cage into the groove on the nipple, and you'll know it's seated right when the cage can rotate freely in that groove. Slide both clips over the cage arms into the channels, then use the FT1357 Clip Closing Pliers to close them. Keep the pliers square on the connection points the whole time you're closing.
Question by: Dustin J on Jul 27, 2025, 7:46 AM
Will this fitting hold up if I'm using it with a system that cycles on and off a lot, or is it really meant for more steady-state stuff?
Answer by: Customer Support on Jul 28, 2025, 11:50 AM
This E-Z Clip fitting is designed for reliable performance. The key to its longevity, especially in systems with frequent cycling, is proper installation and ensuring the hose and other components are also rated for that kind of use. Pay special attention to the assembly instructions, particularly lubricating the nipple.
Question by: Roy G on Dec 20, 2025, 1:44 PM
trying to hook up a -12 hose, is this the 90 degree female o-ring elbow with the short pilot or did i grab the wrong one
Answer by: Customer Support on Dec 21, 2025, 5:50 PM
It matches a -12 hose and uses a 1-1/16-14 Female O-Ring Seal connection with a short pilot, built as a 90 degree elbow. The catalog number shown for this configuration is C1EY90, and the supplier part number is FJ5985-1212S.
