main product photo

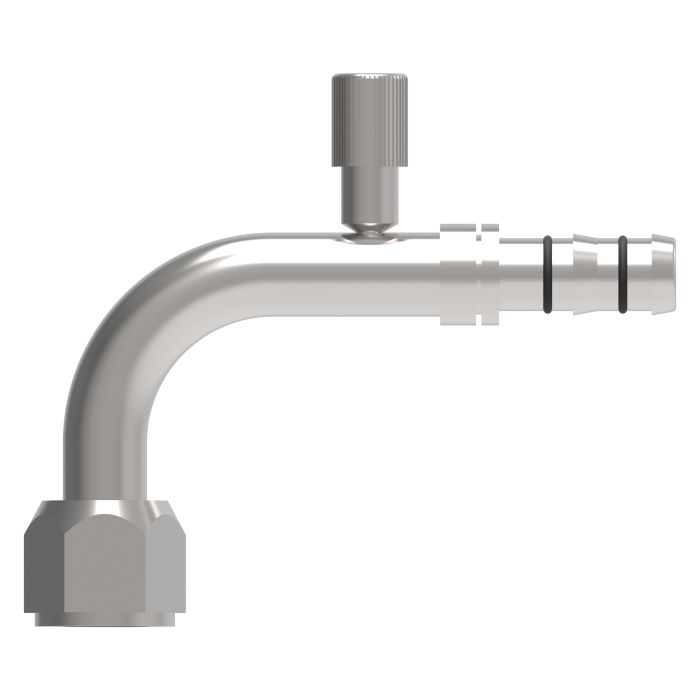

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -10 Hose, 90 deg Elbow With Low Side Charge Port (R134a)

Ask A Question

Description & Features

Designed for specialized applications, the E-Z Clip Series Fitting ensures seamless integration with precision-engineered components. This 90-degree elbow fitting, featuring a low side charge port compatible with R134a refrigerant, provides efficient connection for refrigeration and A/C systems.

The component accommodates a 7/8-14 female O-ring connection and is expertly crafted for reliable sealing, minimizing potential leakage points. The short pilot interface facilitates easier installation while maintaining robust performance under demanding conditions.

Compatible with -10 hose size, this fitting is engineered to deliver a secure and durable connection without the need for external power tools. The use of appropriately sized clips and cage assembly enhances the fitting's stability and integrity.

Manufactured by Danfoss Power Solutions (II LLC Aeroquip), this fitting adheres to high-quality standards, ensuring long-term reliability in industrial environments.

Catalog Number: C1EY22

Supplier Part Number: FJ3012-02-1010S

Specifications

Brand
Danfoss
a Dimensions
4.88 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
3.33 in
d Dimensions
3.33 in
Dimensions
5.41 in L x 1.06 in W x 2.7 in H
Drop Dimensions
1.89 in
End Gender 1
Female
End Size 1
7/8 in
End Size 2
5/8 in
f Dimensions
0.63 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
h Dimensions
1.89 in
Hex Size
1.06 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-10
Series
FJ3012 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions f Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -12 Hose, 90 deg Elbow With Low Side Charge Port (R134a)

FJ3012-01-1012S E-Z Clip Series Short-Pilot Fitting

7/8-14

12

3-1/4 in

0.63 in

1.89 in

Product Questions & Answers (2)

Question by: Carl A on May 22, 2025, 6:42 PM
if i make a mistake putting a line together are these ez clip parts reusable at all
Answer by: Customer Support on May 23, 2025, 9:53 PM
Once assembled, the E-Z Clip components are strictly single-use and cannot be reused for a new connection.
Question by: Wade H on Oct 16, 2025, 6:14 AM
What size hose does this fitting work with?
Answer by: Customer Support on Oct 17, 2025, 3:21 PM
It's made to fit a -10 size hose.
