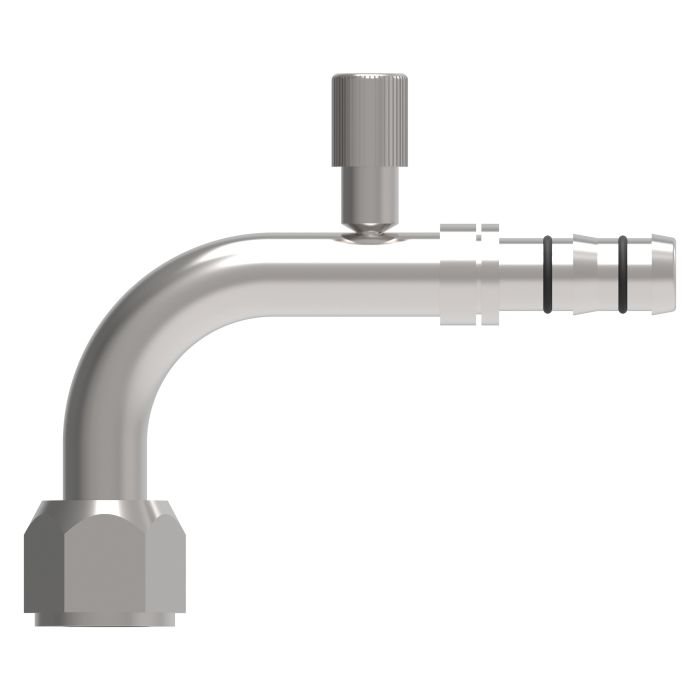

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -10 Hose, 90 deg Elbow With High Side Charge Port (R134a)

Ask A Question

Description & Features

Designed for durability the Aeroquip E-Z Clip 90 Degree Female O-Ring Fitting is essential in high-pressure environments. It incorporates a 3/4-16 female O-ring for secure sealing and optimal performance. Each elbow features a connection suited for a -10 size hose ensuring compatibility with various equipment.

This fitting's unique 90-degree configuration and short pilot design make it versatile for confined spaces. It also includes a high side charge port optimized for R134a refrigerant making it ideal for specialized applications. A precise 1.62-inch drop dimension facilitates ease of installation without compromising functionality.

The E-Z Clip system developed by Danfoss Power Solutions ensures a consistent leak-free connection without the need for complex crimping tools or power supplies. Required materials for installation include FT1357 Clip Closing Pliers compatible refrigerant oil and GH134 Multi-Refrigerant hose.

Compliance with EPA guidelines is necessary when servicing refrigerant systems to prevent environmental hazards. Aeroquip fittings are engineered to work exclusively with designated components ensuring safe and reliable assemblies.

MPN: EAR99

Supplier Part Number: FJ3013-01-0810S

Specifications

Brand
Danfoss
a Dimensions
4.53 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
2.98 in
d Dimensions
2.98 in
Dimensions
4.97 in L x 0.88 in W x 2.43 in H
Drop Dimensions
1.62 in
End Gender 1
Female
End Size 1
3/4 in
End Size 2
5/8 in
f Dimensions
0.69 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
h Dimensions
1.62 in
Hex Size
0.87 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-10
Series
FJ3013 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions f Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, 90 deg Elbow With High Side Charge Port (R134a)

FJ3013-03-0808S E-Z Clip Series Short-Pilot Fitting

3/4-16

08

3.07 in

0.69 in

1.62 in

E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, 90 deg Elbow With High Side Charge Port (R134a)

FJ3013-02-0606S E-Z Clip Series Short-Pilot Fitting

5/8-18

06

2.82 in

0.63 in

1.38 in

Product Questions & Answers (1)

Question by: Tony F on Dec 28, 2025, 6:20 PM
What all do I need to put one of these fittings together? Got a -10 hose and just want to make sure I ain't missing anything before I order.
Answer by: Customer Support on Dec 30, 2025, 6:32 AM
For a complete assembly you'll need FT1357 Clip Closing Pliers, two appropriately sized clips and a cage, refrigerant oil that's compatible with your A/C or refrigeration system, and GH134 Multi-Refrigerant hose. The nipple comes with two black o-rings already installed and those should stay put. Don't remove or replace them. Once you have everything on hand, the process works like this: cut the hose square, slip two clips onto the cut end, oil the nipple generously before insertion, push the nipple in until the hose seats flush against the shoulder, snap the cage into the groove, slide the clips over the cage arms, and close them down with the FT1357 pliers. No crimping machine or power supply needed.
