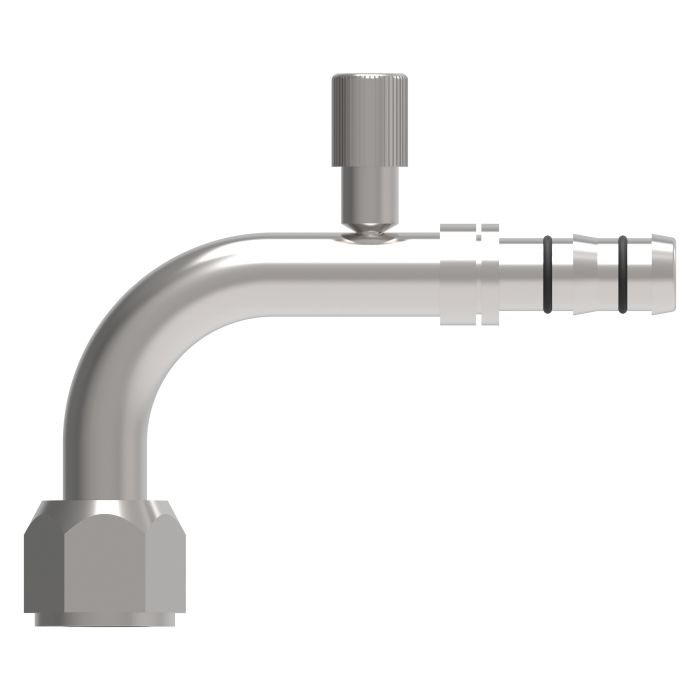

E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, 90 deg Elbow With High Side Charge Port (R134a)

Ask A Question

Description & Features

The E-Z Clip Series Fitting features a 5/8-18 female O-ring with a short pilot configuration designed for a -06 hose in a 90-degree elbow layout. This fitting includes a high side charge port compatible with R134a refrigerant systems.

Manufactured by Danfoss Power Solutions (II LLC Aeroquip) it ensures no guesswork and eliminates leaking crimps providing reliability where its needed most. The compact design makes it easy to use in confined areas without the requirement for a power supply.

Particularly suited for high-performance environments the fitting guarantees seamless integration with other system components due to its precise engineering and robust materials. The use of proper-sized clips and cage enhances the connection stability which is vital for system efficiency.

MPN: EAR99

Supplier Part Number: FJ3013-02-0606S

Specifications

Brand
Danfoss
a Dimensions
4.35 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
2.82 in
d Dimensions
2.82 in
Dimensions
4.72 in L x 0.75 in W x 2.04 in H
Drop Dimensions
1.38 in
End Gender 1
Female
End Size 1
5/8 in
End Size 2
3/8 in
f Dimensions
0.63 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
h Dimensions
1.38 in
Hex Size
3/4 in
Hose Dash Size
06
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-06
Series
FJ3013 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF
