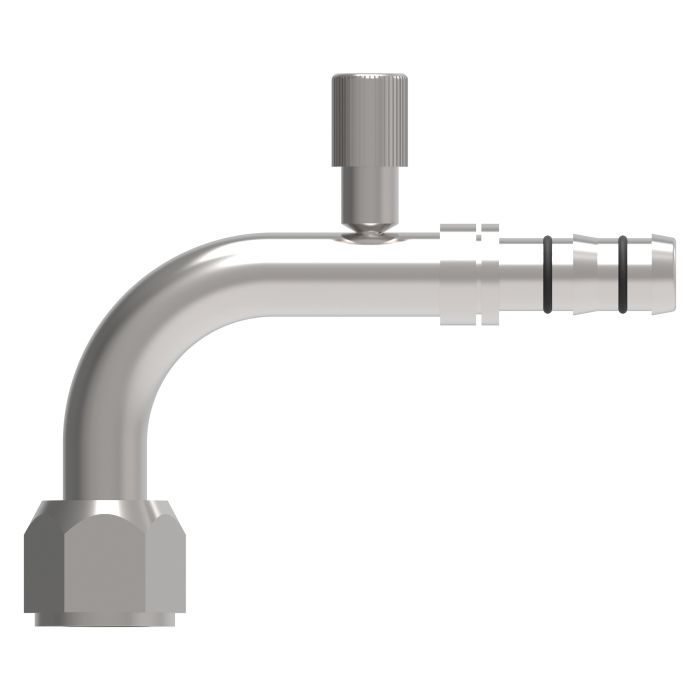

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, 90 deg Elbow With High Side Charge Port (R134a)

Ask A Question

Description & Features

E-Z Clip Series Fitting is engineered to provide robust functionality in demanding environments. Featuring a 90-degree elbow, this fitting is designed with a 3/4-16 female O-ring short pilot, compatible with -08 hoses. Its high side charge port is optimized for R134a refrigerant, ensuring efficiency and safety.

Manufactured by Danfoss Power Solutions, the fitting boasts a compact design with a drop dimension of 1.6200 inches. The female end size measures 0.75 inches, and the end type is SAE, making it suitable for a range of specialized applications. The opposite end is designed for line/hose/tube connections with a 0.5-inch size.

An essential component within special products, the fitting ensures no leakages due to its precision design, requiring no mandrel or thread sealant. The product is categorized under UNSPSC 40183100 and complies with ECCN EAR99 standards, making it a reliable choice in various industrial settings.

MPN: FJ3013-03-0808S

Supplier Part Number: FJ3013-03-0808S

Specifications

Brand
Danfoss
a Dimensions
4.61 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
3.07 in
d Dimensions
3.07 in
Dimensions
5.05 in L x 0.88 in W x 2.38 in H
Drop Dimensions
1.62 in
End Gender 1
Female
End Size 1
3/4 in
End Size 2
1/2 in
f Dimensions
0.69 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
h Dimensions
1.62 in
Hex Size
0.87 in
Hose Dash Size
08
Inside Diameter
0.31 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-08
Series
FJ3013 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions f Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -10 Hose, 90 deg Elbow With High Side Charge Port (R134a)

FJ3013-01-0810S E-Z Clip Series Short-Pilot Fitting

3/4-16

10

2.98 in

0.69 in

1.62 in

E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, 90 deg Elbow With High Side Charge Port (R134a)

FJ3013-02-0606S E-Z Clip Series Short-Pilot Fitting

5/8-18

06

2.82 in

0.63 in

1.38 in

Product Questions & Answers (4)

Question by: Earl A on Feb 28, 2026, 10:03 AM
do i need a heavy duty power crimper to put this fitting on the hose?
Answer by: Customer Support on Mar 1, 2026, 2:27 PM
Power tools aren't necessary for these fittings. You just use the FT1357 Clip Closing Pliers to secure the clips over the cage. The system is set up to be as simple as using standard hand pliers which makes it a lot easier if you are working in a tight spot.
Question by: Janice H on Aug 1, 2025, 8:38 PM
What size is that O-ring seal that comes with this thing?
Answer by: Customer Support on Aug 3, 2025, 6:51 PM
The included O-ring seal is part number 1f40106-08.
Question by: Patty M on Jul 1, 2025, 6:30 AM
got a 134a system on a commercial refrigeration unit and need a 90 degree fitting with a charge port on the high side. this the right one for -08 hose?
Answer by: Customer Support on Jul 3, 2025, 6:37 AM
For R134a high side service on -08 hose, yes, that's exactly what this fitting is built for. It's a 90 degree elbow with a built-in high side charge port sized for R134a, and the hose end is spec'd for -08. The female O-ring side is a 3/4-16 short pilot SAE thread, so as long as your port matches that, you're in good shape.
Question by: Terry S on Jul 16, 2025, 12:31 PM
trying to swap out an old 90 elbow on a -08 A/C hose, will this one match a 3/4-16 female O-ring short pilot and still give me a high side charge port for R134a?
Answer by: Customer Support on Jul 18, 2025, 6:07 AM
It lines up with what you described. The fitting is a 90 degree elbow with a 3/4-16 female O-ring short pilot on one end and it is built for -08 hose. It also includes a high side charge port intended for R134a systems.
