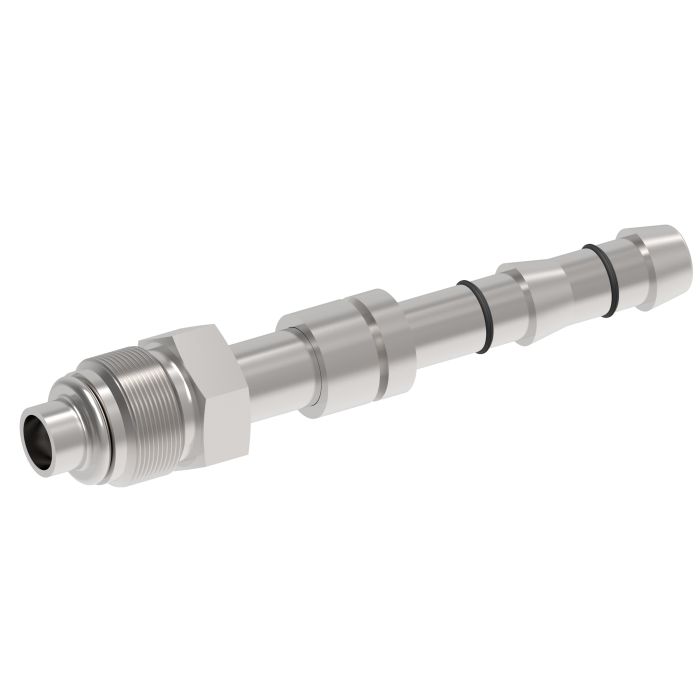

main product photo

E-Z Clip Series Fitting, 5/8-18 Male O-Ring (Short Pilot), -06 Hose, Straight

Ask A Question

Description & Features

The Danfoss Power Solutions E-Z Clip Series Fitting is designed for precise connections in specialized systems. It features a 5/8-18 male O-ring (short pilot) suitable for a -06 hose, offering robust and leak-free performance. This straight-fitting type is equipped with inverted end type connections and a hose size of -06. The unique design ensures stable engagement and reliability.

Constructed from durable materials, this fitting is crafted for easy use in confined areas, requiring no power supply. The straightforward assembly process mitigates the risk of leaks, thanks to the no-guesswork feature and the absence of crimps.

Adhering to industry standards, the E-Z Clip Series mandates the use of compatible refrigerant oil during installation. Avoid reusing E-Z Cliptrade; components to maintain integrity. The assembly benefits from a streamlined fitting procedure, reducing complexity and potential errors during installation.

Supplier Part Number: FJ3052-0606S

Specifications

Brand
Danfoss
a Dimensions
3.41 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Hose, Male O-ring Short Pilot
Connection Type 1
Hose
Connection Type 2
Male O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
1.7 in
d Dimensions
1.7 in
Dimensions
3.41 in L x 0.62 in W x 0.72 in H
End Gender 1
Male
End Size 1
5/8 in
End Size 2
3/8 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
0.63 in
Hose Dash Size
06
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-06
Series
FJ3052 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
E-Z Clip Series Fitting, 7/8-18 Male O-Ring (Short Pilot), -10 Hose, Straight

FJ3052-1010S E-Z Clip Series Short Pilot Fitting

7/8-18

10

1.92 in

E-Z Clip Series Fitting, 7/8-18 Male O-Ring (Short Pilot), -12 Hose, Straight

FJ3052-1012S E-Z Clip Series Short Pilot Fitting

7/8-18

12

1.92 in

E-Z Clip Series Fitting, 5/8-18 Male O-Ring (Short Pilot), -08 Hose, Straight

FJ3052-0608S E-Z Clip Series Short Pilot Fitting

5/8-18

08

1.7 in

Product Questions & Answers (4)

Question by: Rex H on May 3, 2025, 6:39 AM
if I mess up a crimp can I just pull the cage off and reuse the fitting on a new hose end
Answer by: Customer Support on May 5, 2025, 8:44 AM
Reusing components from the E-Z Clip series is strongly advised against. Once the cage and clips are snapped into place and closed they cannot safely be removed and put on a new hose. You need to start with a brand new fitting and fresh clips to ensure a secure seal and prevent refrigerant leaks.
Question by: Kirk J on Jul 28, 2025, 6:01 PM
got an ez clip setup already. is this the straight -06 hose fitting with the 5/8-18 male o-ring and that short pilot?
Answer by: Customer Support on Jul 30, 2025, 3:07 PM
It matches that combo: E-Z Clip Series straight fitting for -06 hose with a 5/8-18 male O-ring end and a short pilot. The nipple uses two black O-rings that are a specific compound and size, and they are not meant to be removed or replaced.
Question by: Ray T on Jun 24, 2025, 12:52 PM
what tool do i need to close the clips on this thing? got the fitting but not sure if i need something special or if regular pliers will do
Answer by: Customer Support on Jun 25, 2025, 1:42 PM
You'll need the FT1357 Clip Closing Pliers specifically for this job. Regular pliers won't cut it because the tool has to sit square on the clip connection points and stay square through the whole closing motion. Using the wrong pliers risks a bad seal or a damaged clip, and since E-Z Clip components can't be reused, a mistake there means starting over with new parts.
Question by: Darryl H on Apr 26, 2025, 1:37 PM
Will this fitting hold up to typical under-hood temperatures without leaking?
Answer by: Customer Support on Apr 28, 2025, 6:33 AM
This fitting is constructed from durable materials and designed for leak-free performance when properly installed with compatible refrigerant oil. However, the long-term effects of extreme temperatures are not explicitly detailed.
