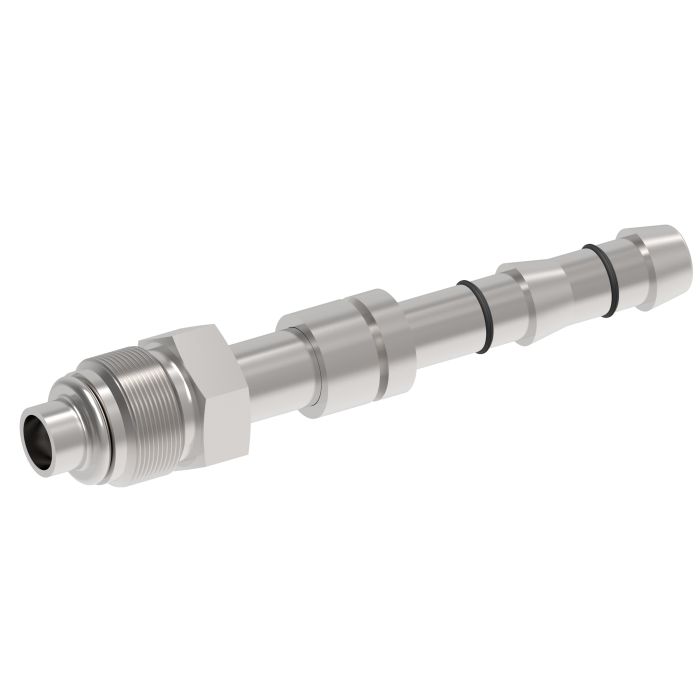

main product photo

E-Z Clip Series Fitting, 5/8-18 Male O-Ring (Short Pilot), -08 Hose, Straight

Ask A Question

Description & Features

The Danfoss Power Solutions (II LLC Aeroquip) E-Z Clip Series Fitting 5/8-18 Male O-Ring (Short Pilot) -08 Hose Straight offers reliable and efficient connectivity for industrial uses. This fitting excels in its ability to ensure secure connections without the need for guesswork or complicated tools.

Designed with no leaking crimps and no power supply needed it is a straightforward dependable choice for specialized applications. Utilizing simple pliers the system is easy to handle even in confined spaces making it a suitable option for complex installations.

Materials required for the installation include the FT1357 Clip Closing Pliers a guillotine blade or equivalent cutting tool refrigerant oil compatible with the system GH134 Multi-Refrigerant hose and appropriately sized clips and cage. The product is designed for use with GH134 Multi-Refrigerant Hose and adheres to stringent standards ensuring long-lasting performance.

MPN: FJ3052-0608S

Supplier Part Number: FJ3052-0608S

Specifications

Brand
Danfoss
a Dimensions
3.43 in
Compatible Hose ID
0.38 in
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Hose, Male O-ring Short Pilot
Connection Type 1
Hose
Connection Type 2
Male O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
1.7 in
d Dimensions
1.7 in
Dimensions
3.43 in L x 0.62 in W x 0.72 in H
End Gender 1
Male
End Size 1
5/8 in
End Size 2
1/2 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
0.63 in
Hose Dash Size
08
Inside Diameter
0.26 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-08
Series
FJ3052 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Male O-Ring (Short Pilot), -06 Hose, Straight

FJ3052-0606S E-Z Clip Series Short Pilot Fitting

5/8-18

06

1.7 in

E-Z Clip Series Fitting, 7/8-18 Male O-Ring (Short Pilot), -10 Hose, Straight

FJ3052-1010S E-Z Clip Series Short Pilot Fitting

7/8-18

10

1.92 in

E-Z Clip Series Fitting, 7/8-18 Male O-Ring (Short Pilot), -12 Hose, Straight

FJ3052-1012S E-Z Clip Series Short Pilot Fitting

7/8-18

12

1.92 in

Product Questions & Answers (1)

Question by: Vince P on Mar 8, 2026, 6:22 AM
got a -08 GH134 hose here, how do i put this E-Z Clip straight fitting on it without messin it up?
Answer by: Customer Support on Mar 9, 2026, 5:10 PM
Start by cutting the hose square, then slide two correctly sized clips onto the hose end. Lubricate the nipple with a generous amount of refrigerant or A/C compressor oil that is compatible with the system, then push the nipple in until the hose is seated tight against the nipple shoulder with no gap. Snap the cage into the nipple groove so it can rotate, slide the clips into the cage arm channels, and close the clips using the FT1357 clip closing pliers while keeping the pliers square on the connection points.
