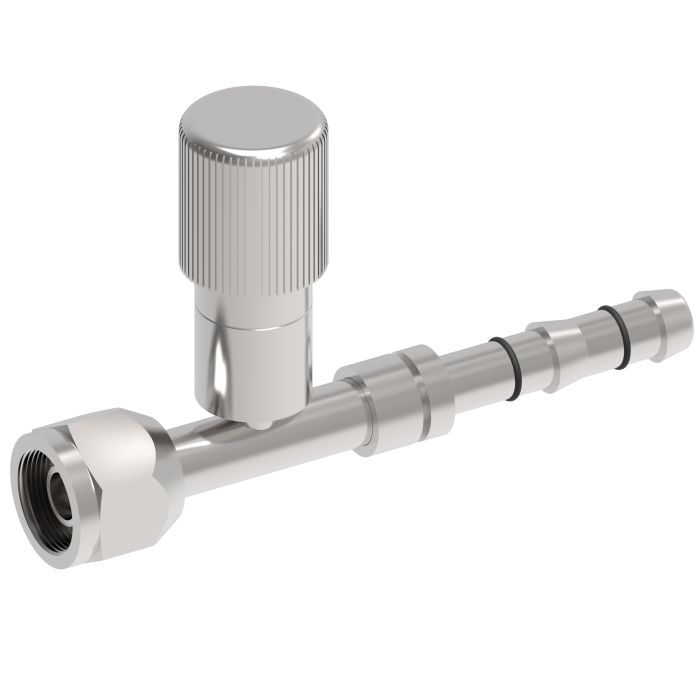

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, Straight With High Side Charge Port (R134a)

Ask A Question

Description & Features

E-Z Clip Series Fitting 3/4-16 Female O-Ring (Short Pilot) -08 Hose Straight With High Side Charge Port (R134a) ensures secure and leak-tight connections in refrigeration and A/C systems. Engineered by Danfoss Power Solutions (II LLC Aeroquip) this fitting features a 3/4-16 thread size and requires no mandrel for assembly.

The design includes a high side charge port specifically for R134a refrigerant making it optimal for high-performance environments. With the included 1F40106-08 seal part it guarantees compatibility and reliability.

Assembly involves straightforward steps including cutting the hose installing clips lubricating the nipple and securing the cage. This product negates the need for power supplies reducing setup complexity and it is particularly ideal for use in confined spaces.

Additionally the fitting's SAE end type and -08 hose size make it a versatile choice for various industrial applications. It is recommended to adhere to Aeroquip's assembly instructions and EPA guidelines to avoid potential hazards or regulatory issues.

MPN: C1EY45

Supplier Part Number: FJ3053-0808S

Specifications

Brand
Danfoss
a Dimensions
4.09 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female O-ring Long Pilot, Hose
Connection Type 1
Hose
Connection Type 2
Female O-ring Long Pilot
Construction Style
Reusable
Cut-Off Factor
2.16 in
d Dimensions
2.16 in
Dimensions
4.09 in L x 0.88 in W x 1.01 in H
End Gender 1
Female
End Size 1
3/4 in
End Size 2
1/2 in
f Dimensions
0.63 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
0.87 in
Hose Dash Size
08
Inside Diameter
0.31 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-08
Series
FJ3053 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Product Questions & Answers (3)

Question by: Hank T on Nov 6, 2025, 12:40 PM
got a -08 GH134 hose im putting together, do i need a crimper or mandrel for this EZ Clip fitting?
Answer by: Customer Support on Nov 8, 2025, 6:06 AM
No-crimp assembly is the whole point of the E-Z Clip setup. You cut the hose square, slip on two clips, oil the nipple with the system’s compressor oil, push the nipple in until the hose is tight to the shoulder, snap the cage into the groove, slide the clips into the cage channels, then close the clips with FT1357 clip closing pliers.
Question by: Hugh H on Aug 1, 2025, 3:07 PM
What all do I need on hand before I start putting this fitting together? Trying to make sure I ain't missing nothing before I dig in.
Answer by: Customer Support on Aug 3, 2025, 11:04 AM
Before assembly, round up a pair of FT1357 Clip Closing Pliers and either a guillotine blade tool (FT1356) or a comparable square-cut hose cutter. You'll also need two appropriately sized clips and a cage, plus refrigerant oil that's compatible with your A/C system. The fitting is built for use with GH134 Multi-Refrigerant hose, so make sure that's what you're working with. The seal part (1F40106-08) comes included, so that one's already covered. Once you've got all that together, the assembly itself is pretty straightforward: cut the hose square, slip on the clips, oil the nipple generously, seat it fully against the hose shoulder, snap on the cage, slide the clips into the arm channels, and close them with the pliers.
Question by: Dwayne Y on Dec 25, 2025, 12:10 PM
So this has the high side charge port for R134a, right? Just making sure before I order it.
Answer by: Customer Support on Dec 26, 2025, 3:02 PM
this E-Z Clip fitting does include a high side charge port specifically designed for R134a refrigerant. It's ready to go for those high-performance environments.
