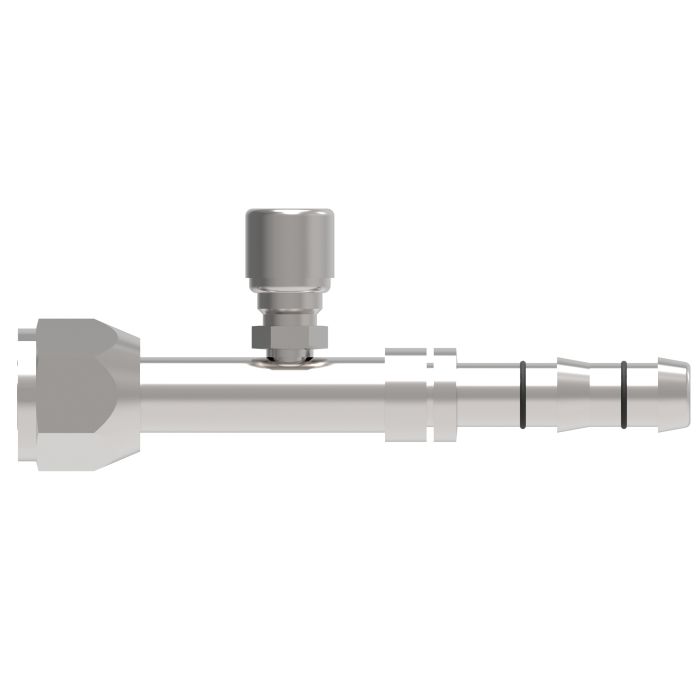

E-Z Clip Series Fitting, 1-1/16-14 Female O-Ring (Short Pilot), -12 Hose, Straight With Charge Port (R12)

Ask A Question

Description & Features

Designed for automotive and mobile A/C refrigerant systems, the E-Z Clip Series Fitting, 1-1/16-14 Female O-Ring (Short Pilot), -12 Hose, Straight With Charge Port (R12) provides a reliable, tool-minimized assembly method for -12 hose connections. The straight configuration includes a charge port for R12 refrigerant service, with a short pilot female O-ring end sized at 1-1/16-14 UNF thread.

Part of the Eaton Aeroquip E-Z Clip system, this fitting uses a clip-and-cage mechanism that eliminates the need for crimping equipment or a power supply. Two clips and a cage secure the nipple assembly to the hose end, with seal part 1F40106-12 included. The hose side accepts -12 (3/4 in.) hose. Components are single-use and not intended for reuse after assembly.

Catalog number C1FL73 cross-references this fitting within the Aeroquip Special Products line.

SKU: FJ3162-1212S

Supplier Part Number (MPN): FJ3162-1212S

Alternate Part Numbers: C1FL73

Specifications

Brand
Danfoss
a Dimensions
4.86 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female Tube O-ring Long Pilot, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Long Pilot
Construction Style
Crimp
Cut-Off Factor
2.71 in
d Dimensions
2.71 in
Dimensions
4.86 in L
End Gender 1
Female
End Gender 2
Male
End Size 1
12
End Size 2
3/4 in
f Dimensions
0.79 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1-1/4
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-12
Series
FJ3162 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-14
Thread Type
UN

Product Questions & Answers (1)

Question by: Merle A on Sep 13, 2025, 6:27 AM
Can this E-Z Clip fitting handle R134a refrigerant or just R12?
Answer by: Customer Support on Sep 14, 2025, 4:41 PM
This fitting is designed for R12 refrigerant systems, as it includes a charge port specifically for R12 service.
