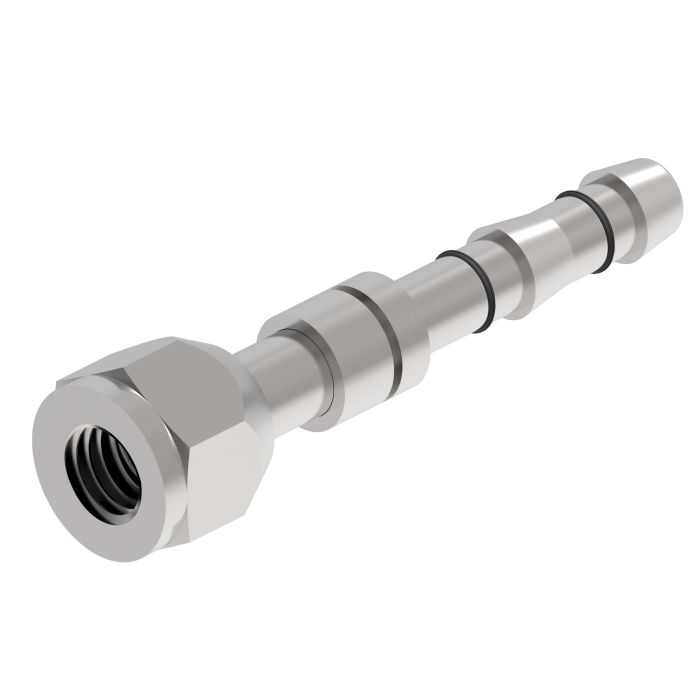

main product photo

E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -08 Hose, Straight

Ask A Question

Description & Features

The Aeroquip EZ Clip Series fitting ensures reliable sealing for refrigeration and A/C systems. It uses a 5/8-18 female O-ring connection for efficient integration with a -08 hose. Featuring a short pilot design it simplifies assembly reducing the risk of errors and leaks during installation.

Constructed by Danfoss Power Solutions this product requires no power supply or crimping making it easy to use even in confined spaces with just a pair of pliers. Its straight configuration further promotes ease of use without necessitating additional tools or mandrels.

Engineered for compatibility with the GH134 Multi-Refrigerant hose the fitting is equipped with a nipple assembly and correctly sized clips and cage. Proper lubrication with refrigerant oil is advised for smooth nipple insertion and to maintain system integrity.

Note that reuse of E-Z Clip components should be avoided to ensure best practices in refrigerant system maintenance. Following the comprehensive assembly instructions ensures safe and effective performance.

MPN: FJ5984-0608S

Supplier Part Number: FJ5984-0608S

Specifications

Brand
Danfoss
a Dimensions
3.16 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
1.62 in
d Dimensions
1.62 in
Dimensions
3.16 in L x 0.75 in W x 0.87 in H
End Gender 1
Female
End Gender 2
Male
End Size 1
5/8 in
End Size 2
1/2 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
3/4 in
Hose Dash Size
08
Inside Diameter
0.26 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-08
Series
FJ5984 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, Straight

FJ5984-0606S E-Z Clip Series Short-Pilot Fitting

5/8-18

06

1.62 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, Straight

FJ5984-0808S E-Z Clip Series Short-Pilot Fitting

3/4-16

08

2.02 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -12 Hose, Straight

FJ5984-1012S E-Z Clip Series Short-Pilot Fitting

7/8-14

12

2.08 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -10 Hose, Straight

FJ5984-0810S E-Z Clip Series Short-Pilot Fitting

3/4-16

10

2.02 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -10 Hose, Straight

FJ5984-1010S E-Z Clip Series Short-Pilot Fitting

7/8-14

10

2.08 in

E-Z Clip Series Fitting, 1-1/16-14 Female O-Ring (Short Pilot), -10 Hose, Straight

FJ5984-1210S E-Z Clip Series Short-Pilot Fitting

1-1/16-14

10

2.62 in

Product Questions & Answers (2)

Question by: Rod S on Jul 23, 2025, 7:50 PM
these E-Z Clip fittings, can you reuse the clips and cage after you pull a hose apart for a repair or swap?
Answer by: Customer Support on Jul 25, 2025, 4:37 PM
Once the clips and cage have been closed and the assembly is complete, none of the E-Z Clip components are meant to be reused. That goes for the clips, the cage, and the nipple assembly as a whole. If you're pulling a hose apart for any reason, plan on having fresh components ready before you put it back together. Reusing them introduces risk into the connection, and that's not something you want on a refrigerant line.
Question by: Keith M on Oct 5, 2025, 3:16 PM
what tool do i need to close the clips on this thing? got the hose cut and nipple in but not sure if regular pliers will do it
Answer by: Customer Support on Oct 7, 2025, 6:01 AM
Regular pliers won't cut it here. You need the FT1357 Clip Closing Pliers specifically. When you go to close the clips, those pliers need to sit square on the clip connection points and stay square all the way through the close. Using the wrong tool risks a bad seal, and with refrigerant systems you really don't want that.
