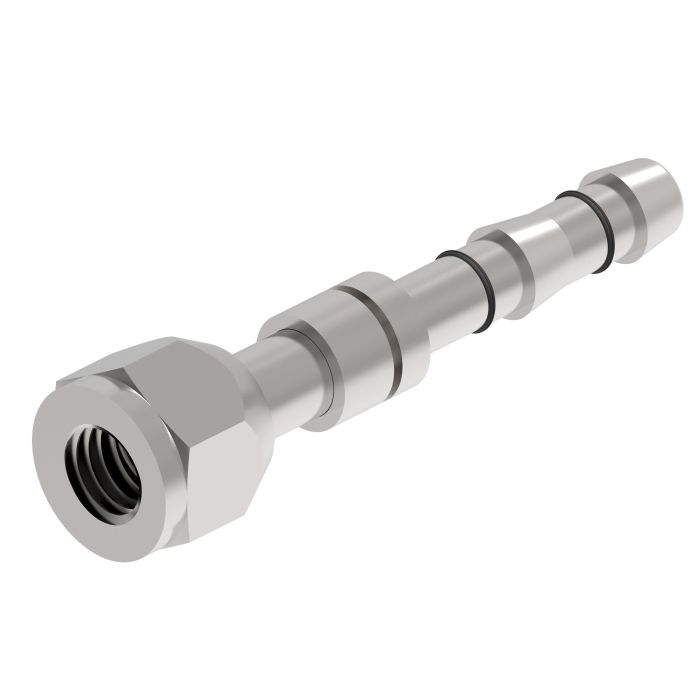

main product photo

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, Straight

Ask A Question

Description & Features

The E-Z Clip Series fitting ensures secure and reliable connections for specialized industrial applications. Featuring a 3/4-16 female O-ring (short pilot) design and compatible with -08 hose size this fitting offers dependable performance. Manufactured from high-quality steel it provides durability and resistance to wear and corrosion.

The fitting is designed for use with DANFOSS Power Solutions' GH134 Multi-Refrigerant hose and adheres to stringent industry standards for compatibility with refrigeration and A/C systems. No mandrel is required for installation simplifying the process.

The fitting includes two black O-rings of specific rubber compound and size integrated to prevent leaks and enhance reliability. A user-friendly design allows for easy assembly with basic tools making it ideal for confined spaces and reducing the need for complex equipment.

CAUTION: Follow prescribed assembly instructions carefully to ensure safe and reliable hose assemblies. Use only with specified Aeroquip components to avoid potential hazards and non-compliance with EPA regulations.

ECCN: EAR99

Supplier Part Number: FJ5984-0808S

Specifications

Brand
Danfoss
a Dimensions
3.56 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
2.02 in
d Dimensions
2.02 in
Dimensions
3.56 in L x 0.88 in W x 1.01 in H
End Gender 1
Female
End Gender 2
Male
End Size 1
3/4 in
End Size 2
1/2 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
0.87 in
Hose Dash Size
08
Inside Diameter
0.31 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-08
Series
FJ5984 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, Straight

FJ5984-0606S E-Z Clip Series Short-Pilot Fitting

5/8-18

06

1.62 in

E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -08 Hose, Straight

FJ5984-0608S E-Z Clip Series Short-Pilot Fitting

5/8-18

08

1.62 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -12 Hose, Straight

FJ5984-1012S E-Z Clip Series Short-Pilot Fitting

7/8-14

12

2.08 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -10 Hose, Straight

FJ5984-0810S E-Z Clip Series Short-Pilot Fitting

3/4-16

10

2.02 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -10 Hose, Straight

FJ5984-1010S E-Z Clip Series Short-Pilot Fitting

7/8-14

10

2.08 in

E-Z Clip Series Fitting, 1-1/16-14 Female O-Ring (Short Pilot), -10 Hose, Straight

FJ5984-1210S E-Z Clip Series Short-Pilot Fitting

1-1/16-14

10

2.62 in

Product Questions & Answers (4)

Question by: Earl A on Aug 29, 2025, 12:47 PM
got a -08 hose and need a straight female o-ring end, is this the right one with the short pilot?
Answer by: Customer Support on Aug 30, 2025, 6:51 PM
Match it up to a -08 hose and a 3/4-16 female O-ring seal end in a straight configuration. This part is an E-Z Clip Series fitting with a 3/4-16 female O-ring (short pilot) and it’s built for -08 hose.
Question by: Duane R on Dec 29, 2025, 12:30 PM
trying to put together an A/C hose and I dont have a crimper. is this one of those E-Z Clip fittings you can do with pliers?
Answer by: Customer Support on Dec 31, 2025, 6:06 AM
No mandrel is required with the E-Z Clip setup, and it is meant to be assembled with basic tools. You cut the GH134 Multi-Refrigerant hose square, slip on two clips, oil the nipple with the system’s compressor oil, push the nipple in until it bottoms out, snap the cage into the groove, slide the clips into the cage channels, then close the clips using the FT1357 clip closing pliers.
Question by: Diane B on Nov 4, 2025, 4:38 PM
What kind of hose does this fitting work with? Gotta make sure I get the right one.
Answer by: Customer Support on Nov 6, 2025, 11:23 AM
It's designed for use with DANFOSS Power Solutions' GH134 Multi-Refrigerant hose. Sticking to that will ensure proper compatibility.
Question by: Wayne S on Dec 18, 2025, 10:56 AM
what tool do i need to close them clips? got the hose cut already just want to make sure i got the right pliers before i start
Answer by: Customer Support on Dec 19, 2025, 3:54 PM
For closing the clips on this fitting you'll need the FT1357 Clip Closing Pliers. When you use them, make sure they're sitting square on the clip connection points and stay square all the way through the close. That part matters more than people think. The pliers do all the work, no power supply or crimping machine needed, which is real handy when you're working somewhere tight.
