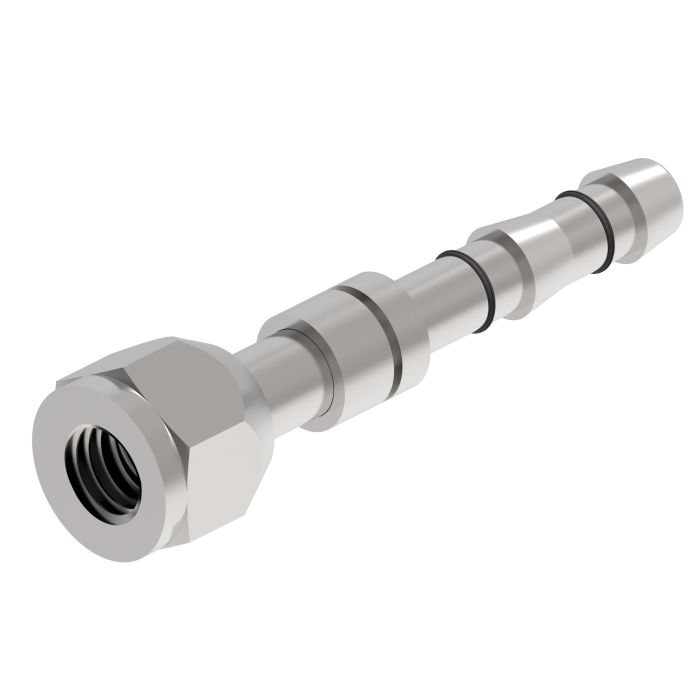

main product photo

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -10 Hose, Straight

Ask A Question

Description & Features

The Danfoss Power Solutions (II LLC Aeroquip) E-Z Clip Series Short-Pilot Fitting designed for a 3/4-16 female O-ring and -10 hose offers efficient installation and reliable performance. This fitting ensures no leaks and eliminates the need for power supply making it user-friendly even in confined spaces.

E-Z Clip components facilitate a secure connection with a straightforward assembly process. Follow the steps closely to avoid gaps and kinks during installation. The fitting comes with a unique nipple assembly that requires lubrication with system-compatible oil to reduce insertion force.

Use the FT1357 Clip Closing Pliers to securely close the clips. The E-Z Clip fitting identified by supplier part number FJ5984-0810S is crafted to meet strict industry standards and should not be reused once installed.

Catalog Number: C1EY80

Supplier Part Number: FJ5984-0810S

ECCN: EAR99

Specifications

Brand
Danfoss
a Dimensions
3.57 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
2.02 in
d Dimensions
2.02 in
Dimensions
3.57 in L x 0.88 in W x 1.01 in H
End Gender 1
Female
End Gender 2
Male
End Size 1
3/4 in
End Size 2
5/8 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
0.87 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-10
Series
FJ5984 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, Straight

FJ5984-0606S E-Z Clip Series Short-Pilot Fitting

5/8-18

06

1.62 in

E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -08 Hose, Straight

FJ5984-0608S E-Z Clip Series Short-Pilot Fitting

5/8-18

08

1.62 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, Straight

FJ5984-0808S E-Z Clip Series Short-Pilot Fitting

3/4-16

08

2.02 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -12 Hose, Straight

FJ5984-1012S E-Z Clip Series Short-Pilot Fitting

7/8-14

12

2.08 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -10 Hose, Straight

FJ5984-1010S E-Z Clip Series Short-Pilot Fitting

7/8-14

10

2.08 in

E-Z Clip Series Fitting, 1-1/16-14 Female O-Ring (Short Pilot), -10 Hose, Straight

FJ5984-1210S E-Z Clip Series Short-Pilot Fitting

1-1/16-14

10

2.62 in

Product Questions & Answers (3)

Question by: Sheila R on May 13, 2025, 8:16 AM
how do i know if this fitting will work for my -10 hose?
Answer by: Customer Support on May 14, 2025, 11:28 AM
This E-Z Clip Series fitting is specifically made to fit a -10 hose, ensuring a snug and reliable connection. Just make sure your hose is a -10 size, and you'll be good to go.
Question by: Pete E on Dec 12, 2025, 7:55 AM
Is this here fitting the right size for a -10 hose?
Answer by: Customer Support on Dec 14, 2025, 6:40 AM
This straight fitting is made to work with a -10 size hose.
Question by: Kirk B on Dec 13, 2025, 7:47 AM
This straight fitting - what size hose does it take?
Answer by: Customer Support on Dec 15, 2025, 6:28 AM
Takes -10 size hose. The female O-ring side has 3/4-16 threading with a short pilot configuration, so you'll get a secure connection on hydraulic systems that use this standard AN fitting size.
