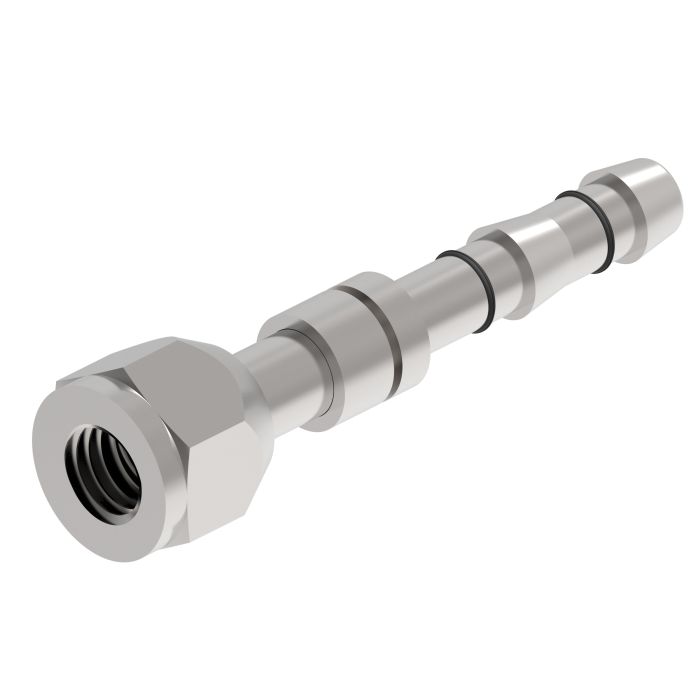

main product photo

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -10 Hose, Straight

Ask A Question

Description & Features

The E-Z Clip Series Fitting 7/8-14 Female O-Ring (Short Pilot) -10 Hose Straight is designed for reliable connections in refrigeration or A/C systems. This fitting manufactured by Danfoss Power Solutions ensures a secure and efficient seal with no need for a power supply.

The fitting boasts an ORS end type and is intended for line/hose/tube connections. Utilizing a female O-ring short pilot it guarantees precision in high-pressure environments. The end sizes are 0.875 inches and 0.625 inches with a 7/8-14 thread making it compatible with -10 size hoses.

Features include no leaking crimps simplifying maintenance and ease of use in confined spaces. The fitting assembly requires no mandrel and includes the necessary seal part (1F40106-10) for a robust installation.

Materials required for installation include clip closing pliers (FT1357) a guillotine blade (FT1356) refrigerant oil the GH134 multi-refrigerant hose clips and a cage. The E-Z Clip components are designed for single use ensuring optimal performance.

MPN: C1EY81

Supplier Part Number: FJ5984-1010S

Specifications

Brand
Danfoss
a Dimensions
3.63 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
2.083 in
d Dimensions
2.08 in
Dimensions
3.63 in L x 1.06 in W x 1.22 in H
End Gender 1
Female
End Gender 2
Male
End Size 1
7/8 in
End Size 2
5/8 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1.06 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-10
Series
FJ5984 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, Straight

FJ5984-0606S E-Z Clip Series Short-Pilot Fitting

5/8-18

06

1.62 in

E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -08 Hose, Straight

FJ5984-0608S E-Z Clip Series Short-Pilot Fitting

5/8-18

08

1.62 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, Straight

FJ5984-0808S E-Z Clip Series Short-Pilot Fitting

3/4-16

08

2.02 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -12 Hose, Straight

FJ5984-1012S E-Z Clip Series Short-Pilot Fitting

7/8-14

12

2.08 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -10 Hose, Straight

FJ5984-0810S E-Z Clip Series Short-Pilot Fitting

3/4-16

10

2.02 in

E-Z Clip Series Fitting, 1-1/16-14 Female O-Ring (Short Pilot), -10 Hose, Straight

FJ5984-1210S E-Z Clip Series Short-Pilot Fitting

1-1/16-14

10

2.62 in

Product Questions & Answers (2)

Question by: Dwight B on Jul 16, 2025, 7:38 PM
What all do I need to put one of these fittings together? Got the fitting ordered but wasn't sure if there's extra stuff I gotta track down before I can use it.
Answer by: Customer Support on Jul 18, 2025, 11:48 AM
You'll need a few things beyond the fitting itself. Pick up a pair of clip closing pliers (FT1357) and a guillotine blade (FT1356) or a comparable square-cut tool for the hose. You'll also need refrigerant oil that's compatible with your system, the GH134 multi-refrigerant hose, and two appropriately sized clips plus a cage per fitting. The seal part (1F40106-10) is included with the fitting, so that's one less thing to chase down. Just make sure you're grabbing everything before you start because once you've assembled it, these components are single-use and can't be reused.
Question by: Janet P on Jun 23, 2025, 11:48 AM
got a -10 GH134 hose here, does this straight fitting actually go with it or am i fixing to order the wrong thing
Answer by: Customer Support on Jun 25, 2025, 6:28 AM
For hose fit, it matches a -10 size GH134 multi-refrigerant hose and uses the E-Z Clip system with two clips and a cage during assembly. The fitting end is a 7/8-14 female O-ring (short pilot), so it is meant to mate to a corresponding male ORS connection on the other side.
