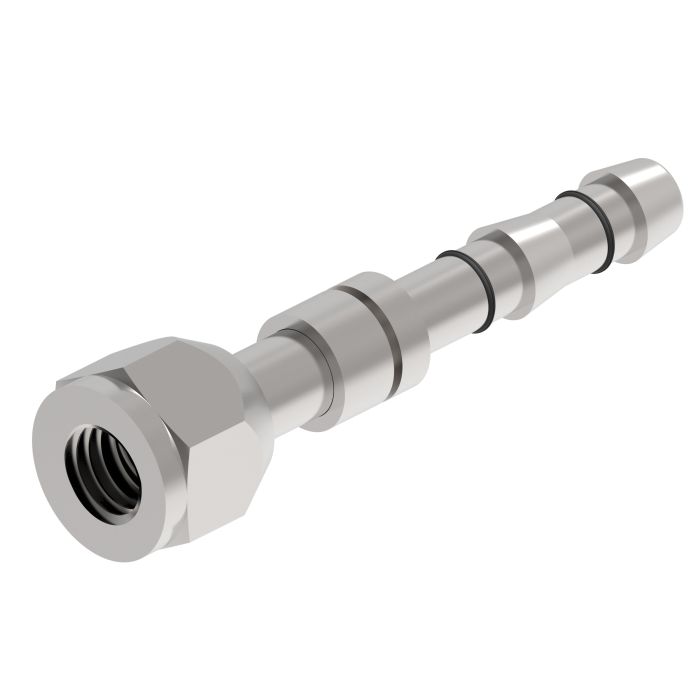

main product photo

E-Z Clip Series Fitting, 1-1/16-14 Female O-Ring (Short Pilot), -10 Hose, Straight

Ask A Question

Description & Features

Manufactured by Danfoss Power Solutions the E-Z Clip Series Fitting is specifically designed for industrial applications requiring a 1-1/16-14 female O-ring and -10 hose connection.

Key features include a steel construction providing durability and reliability in demanding environments. The fitting is designed for use without a mandrel simplifying the assembly process.

Additionally it requires no power supply making it ideal for use in confined areas where conventional equipment may not be practical. The no-guesswork design ensures secure leak-free connections.

The fitting is compatible with refrigerant oils and GH134 multi-refrigerant hoses enhancing its versatility. Precise steps must be followed for assembly to ensure reliable and safe performance especially in refrigeration and A/C systems.

Usage of Aeroquip hose components is strongly recommended to avoid potential safety hazards and ensure compliance with EPA regulations. It is crucial to note that E-Z Clip components should not be reused.

Supplier Part Number: FJ5984-1210S

MPN: FJ5984-1210S

Specifications

Brand
Danfoss
Connection Size 1
5/8 in
Connection Size 2
3/4 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Cut-Off Factor
2.62 in
d Dimensions
2.62 in
Dimensions
4.25 in L x 1.25 in W x 1.44 in H
End Gender 1
Female
End Gender 2
Male
End Size 2
5/8 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1-1/4
Hose Dash Size
10
Material
Steel
Material Construction
Carbon Steel
Seal Part If Included
1F40106-10
Series
FJ5984 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-14

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -06 Hose, Straight

FJ5984-0606S E-Z Clip Series Short-Pilot Fitting

5/8-18

06

1.62 in

E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Short Pilot), -08 Hose, Straight

FJ5984-0608S E-Z Clip Series Short-Pilot Fitting

5/8-18

08

1.62 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -08 Hose, Straight

FJ5984-0808S E-Z Clip Series Short-Pilot Fitting

3/4-16

08

2.02 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -12 Hose, Straight

FJ5984-1012S E-Z Clip Series Short-Pilot Fitting

7/8-14

12

2.08 in

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Short Pilot), -10 Hose, Straight

FJ5984-0810S E-Z Clip Series Short-Pilot Fitting

3/4-16

10

2.02 in

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Short Pilot), -10 Hose, Straight

FJ5984-1010S E-Z Clip Series Short-Pilot Fitting

7/8-14

10

2.08 in

Product Questions & Answers (2)

Question by: Steve W on Feb 9, 2026, 12:44 PM
What kind of hose works with this fitting? Gotta make sure I get the right stuff.
Answer by: Customer Support on Feb 11, 2026, 6:07 AM
It's compatible with GH134 multi-refrigerant hose. Aeroquip hose components are strongly recommended.
Question by: Roger A on Jan 17, 2026, 11:43 AM
what all do I need on hand before putting one of these fittings together? Trying to make sure I ain't halfway through the job missing something.
Answer by: Customer Support on Jan 19, 2026, 6:02 AM
Before you get started, round up a pair of FT1357 Clip Closing Pliers, a guillotine blade or equivalent square-cut hose cutter, two appropriately sized clips and a cage, and enough refrigerant oil compatible with your system to generously lubricate the nipple. You'll also need GH134 Multi-Refrigerant hose. The seal part included with this fitting is 1F40106-10, so that's already covered. One thing worth knowing up front: those two black o-rings on the nipple assembly are a specific compound and should never be removed or replaced.
