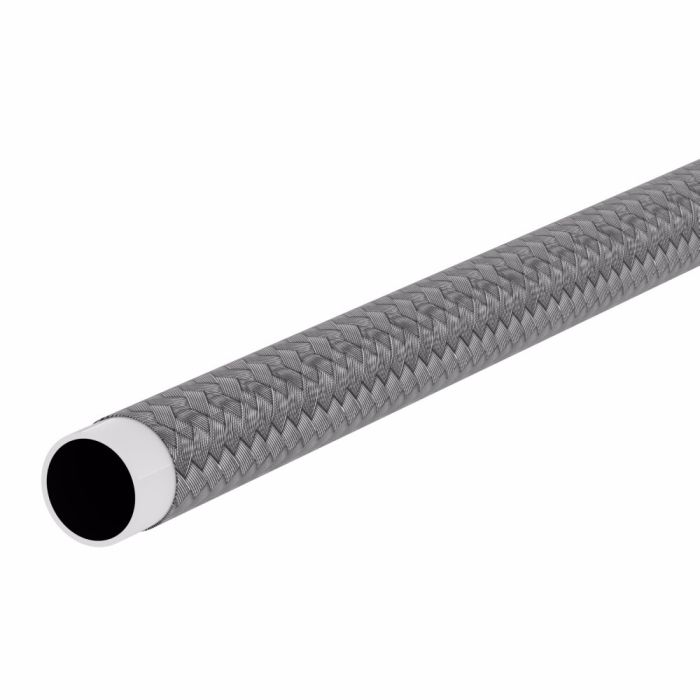

WINNER TEFLON HOSE 5/18

Description & Features

This Aeroquip Winner Teflon hose features a stainless steel cover and a PTFE tube material, making it suitable for a wide range of applications. The WINNER TEFLON HOSE 5/18 is ideal for steam, compressor discharge, and virtually all chemical applications, but it is not recommended for steam-cold water cycling.

This -10 dash size hose is constructed with an extruded tube and braided cover, offering premium abrasion resistance. It withstands vibration and impulsing and is impervious to degradation, performing within a wide temperature range and offering an impulse cycle life of 150,000 cycles. Qualified fittings include E series, Field Attachable, and FC Series.

SKU: EC-10TW

Supplier Part Number (MPN): EC-10TW

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-20974X00295	Application Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.	Certifications SAE 100R14B\|SAE 100R14A\|SAE J517	Color Stainless Steel	Conductivity 30	Construction Extruded with braided cover	Cover Material Stainless Steel	Dash Size -10	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Impulse Cycle Life 150000 cycle	Language English	Minimum Bend Radius 6.50	Minimum Bend Radius 6.5	Minimum Working Temperature -65	Product Width 0.65	Qualified Hose Fittings E series, Field Attachable, FC Series, Swage	Reinforcement Material None	Sub Brand Winner	Supplier Part Number EC-10TW	Tube Material PTFE	Product Weight 0.60 lbs

Product Questions & Answers (1)

Question by: Shane R on Mar 7, 2026, 7:08 AM

reckon this hose could handle runnin' hot compressor discharge all day long?

Answer by: Customer Support on Mar 8, 2026, 2:07 PM

Built with a stainless steel cover and PTFE tube, this Aeroquip Winner Teflon hose is well-suited for continuous compressor discharge applications, among many other chemical uses.
