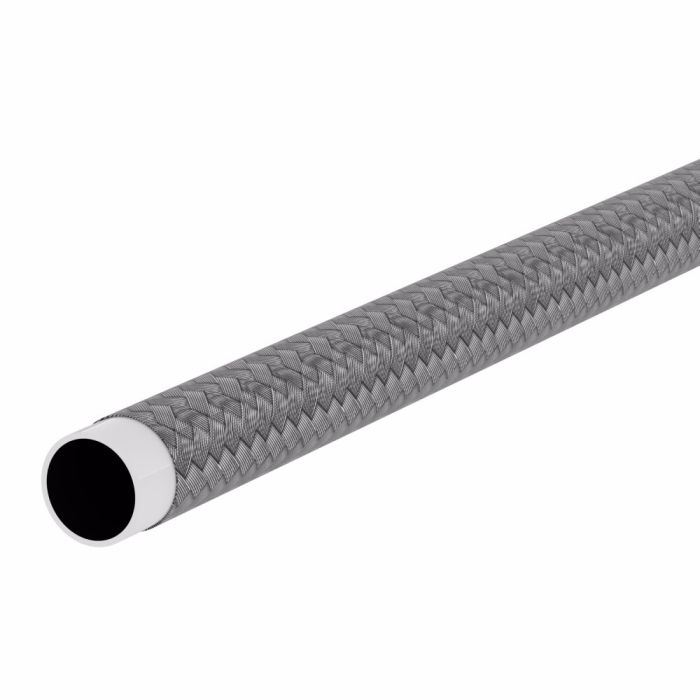

Winner PTFE Hose

Ask A Question

Description & Features

The Winner PTFE Hose is ideal for steam, compressor discharge, and chemical applications. Its conductive stainless steel cover provides premium abrasion resistance and withstands vibration and impulsing while remaining impervious to degradation.

This -12 dash size hose is constructed with an extruded PTFE tube and braided stainless steel cover. It is certified to SAE J517, SAE 100R14A, and SAE 100R14B standards and has a minimum bend radius of 8 inches. Compatible with E series, Field Attachable, FC Series, and Swage qualified hose fittings. Operating temperature range is -65 to 400 degrees Fahrenheit, and the impulse cycle life is rated to 150,000 cycles.

SKU: EC-12TW

Supplier Part Number (MPN): EC-12TW

Specifications

Abrasion Resistance
28
Alternate Part Numbers
Alternate Part Number MINO-20974X00297
Application
Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.
Certifications
SAE J517|SAE 100R14A|SAE 100R14B
Color
Stainless Steel
Conductivity
30
Construction
Extruded with braided cover
Cover Material
Stainless Steel
Dash Size
-12
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Features
Withstands vibration and impulsing|Impervious to degradation|Wide temperature range
ICC
Hoses and Flexible Tubes
Impulse Cycle Life
150000 cycle
Language
English
Minimum Bend Radius
8
Minimum Bend Radius
8
Minimum Working Temperature
-65
Product Width
0.78
Qualified Hose Fittings
E series, Field Attachable, FC Series, Swage
Reinforcement Material
None
Sub Brand
Winner
Supplier Part Number
EC-12TW
Tube Material
PTFE
Product Weight
0.79 lbs

Related Documents

Product Questions & Answers (1)

Question by: Billy P on Sep 6, 2025, 11:00 AM
This hose good for running coolant lines on a CNC machine?
Answer by: Customer Support on Sep 7, 2025, 7:14 PM
Designed for chemical applications, the Winner PTFE hose handles a wide range of fluids. Just confirm your coolant is within the -65 to 400 degree Fahrenheit operating range.
