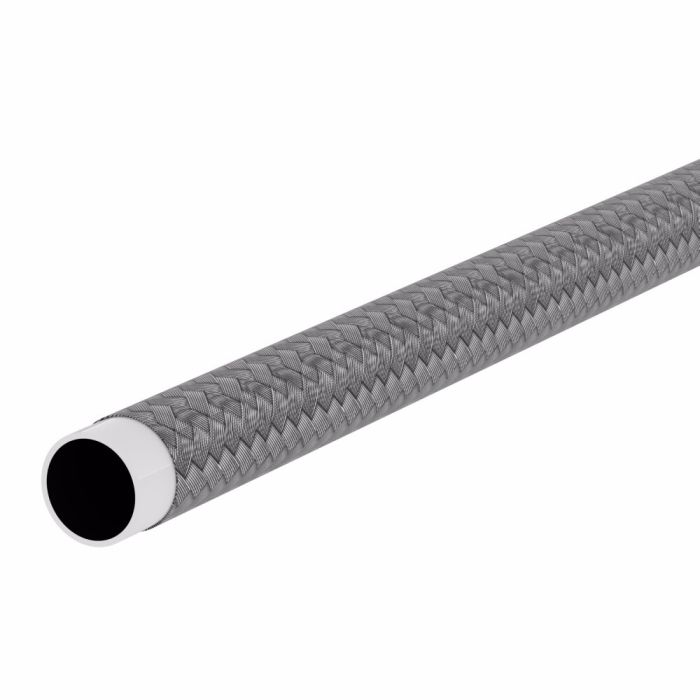

Winner PTFE Hose

Ask A Question

Description & Features

Featuring a stainless steel cover, this Winner PTFE Hose is ideal for steam, compressor discharge, and chemical applications. It is not recommended for steam-cold water cycling.

This -4 dash size hose is constructed with an extruded PTFE tube and braided cover, offering premium abrasion resistance and a wide temperature range, withstanding vibration and impulsing.

The Winner PTFE Hose meets SAE J517, SAE 100R14B, and SAE 100R14A certifications and is compatible with E series, Field Attachable, and FC Series swage qualified hose fittings.

SKU: EC-4TW

Supplier Part Number (MPN): EC-4TW

Specifications

Abrasion Resistance
28
Alternate Part Numbers
Alternate Part Number MINO-20974X00303
Application
Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.
Certifications
SAE J517|SAE 100R14B|SAE 100R14A
Color
Stainless Steel
Conductivity
30
Construction
Extruded with braided cover
Cover Material
Stainless Steel
Dash Size
-4
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Features
Withstands vibration and impulsing|Impervious to degradation|Wide temperature range
ICC
Hoses and Flexible Tubes
Impulse Cycle Life
150000 cycle
Language
English
Minimum Bend Radius
2
Minimum Bend Radius
2
Minimum Working Temperature
-65
Product Width
0.30
Qualified Hose Fittings
E series, Field Attachable, FC Series, Swage
Reinforcement Material
None
Sub Brand
Winner
Supplier Part Number
EC-4TW
Tube Material
PTFE
Product Weight
0.25 lbs

Related Documents

Product Questions & Answers (1)

Question by: Pete C on Jan 11, 2026, 6:26 PM
Could I use this Winner PTFE hose for somethin' like a steam application, maybe?
Answer by: Customer Support on Jan 13, 2026, 6:38 AM
Absolutely, this Winner PTFE hose is well-suited for steam applications. It's also good for compressor discharge and chemical uses. Just keep in mind it's not the best choice for situations where you're switching between steam and cold water.
