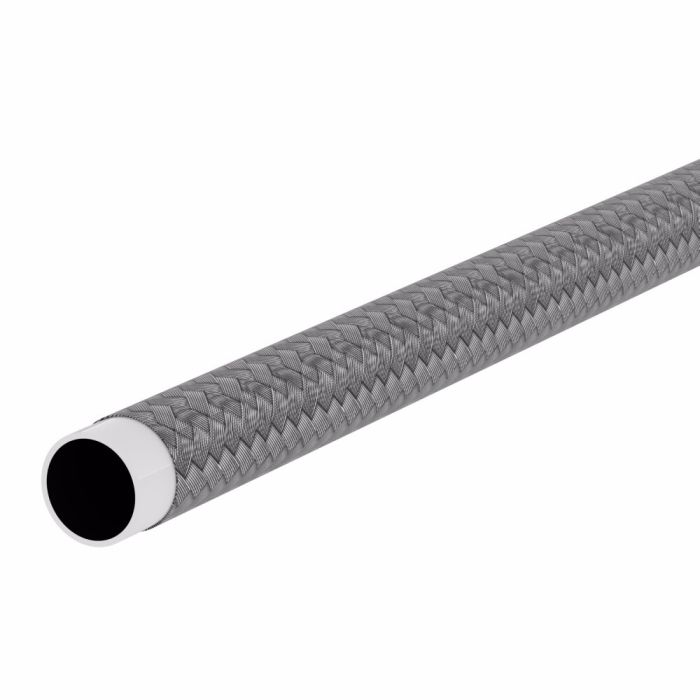

Winner PTFE Hose

Ask A Question

Description & Features

The Winner PTFE Hose from Aeroquip (Danfoss / Eaton) is constructed with a stainless steel cover and a PTFE tube material, providing premium abrasion resistance. This conductive hose is ideal for steam and compressor discharge applications, and virtually all chemical applications, but is not recommended for steam-cold water cycling.

The Winner PTFE Hose withstands vibration and impulsing, is impervious to degradation, and handles a wide temperature range. It is suitable for use with E series, Field Attachable, and FC Series swage qualified hose fittings. This hose meets SAE 100R14B, SAE 100R14A, and SAE J517 certifications and has a minimum bend radius of 4 inches.

SKU: EC-6TW

Supplier Part Number (MPN): EC-6TW

Specifications

Abrasion Resistance
28
Alternate Part Numbers
Alternate Part Number MINO-20974X00305
Application
Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.
Certifications
SAE 100R14B|SAE 100R14A|SAE J517
Color
Stainless Steel
Conductivity
30
Construction
Extruded with braided cover
Cover Material
Stainless Steel
Dash Size
-6
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Features
Withstands vibration and impulsing|Impervious to degradation|Wide temperature range
ICC
Hoses and Flexible Tubes
Impulse Cycle Life
150000 cycle
Language
English
Minimum Bend Radius
4
Minimum Bend Radius
4
Minimum Working Temperature
-65
Product Width
0.44
Qualified Hose Fittings
E series, Field Attachable, FC Series, Swage
Reinforcement Material
None
Sub Brand
Winner
Supplier Part Number
EC-6TW
Tube Material
PTFE
Product Weight
0.38 lbs

Related Documents

Product Questions & Answers (1)

Question by: Dustin W on Nov 4, 2025, 4:17 PM
Can I use this for both steam and cold water?
Answer by: Customer Support on Nov 5, 2025, 9:28 PM
This hose is ideal for steam applications, but it's not recommended for use in systems that cycle between steam and cold water.
