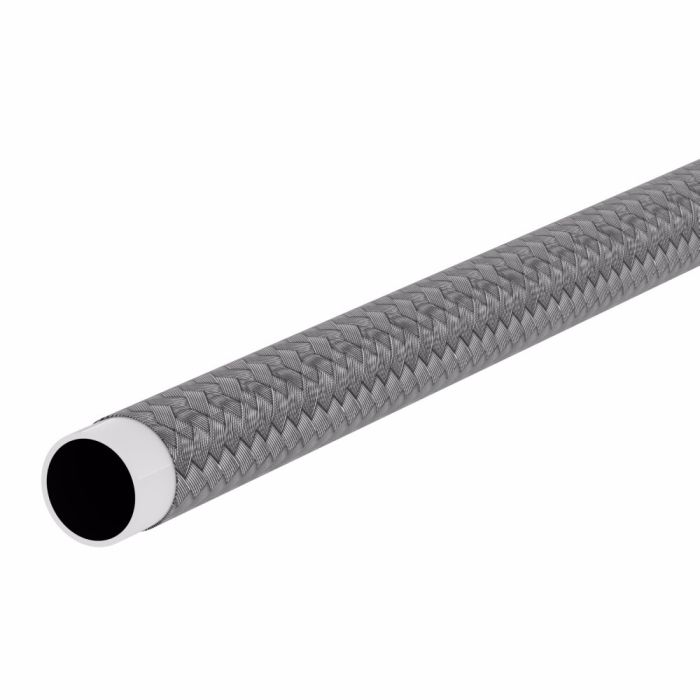

Winner PTFE Hose

Ask A Question

Description & Features

Designed for demanding industrial environments, the Winner PTFE Hose is a reliable choice for steam, compressor discharge, and a wide range of chemical applications. Its premium abrasion resistance and stainless steel braided cover enhance durability, making it impervious to degradation. This hose operates effectively within a broad temperature range and withstands high vibration and impulsing, with an impressive impulse cycle life of 150,000 cycles.

Constructed from PTFE with a stainless steel cover, the hose is conductive and meets SAE 100R14A, SAE 100R14B, and SAE J517 certifications. It features a minimum bend radius of 5 inches and a product width of 0.54 inches, ensuring flexibility and ease of installation. Qualified for use with E series, Field Attachable, FC Series, and Swage fittings, this hose is a versatile component for various industrial systems.

SKU: EC-8TW

Supplier Part Number (MPN): EC-8TW

Specifications

Abrasion Resistance
28
Alternate Part Numbers
Alternate Part Number MINO-20974X00307
Application
Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.
Certifications
SAE 100R14A|SAE 100R14B|SAE J517
Color
Stainless Steel
Conductivity
30
Construction
Extruded with braided cover
Cover Material
Stainless Steel
Dash Size
-8
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Features
Withstands vibration and impulsing|Impervious to degradation|Wide temperature range
ICC
Hoses and Flexible Tubes
Impulse Cycle Life
150000 cycle
Language
English
Minimum Bend Radius
5
Minimum Bend Radius
5
Minimum Working Temperature
-65
Product Width
0.54
Qualified Hose Fittings
E series, Field Attachable, FC Series, Swage
Reinforcement Material
None
Sub Brand
Winner
Supplier Part Number
EC-8TW
Tube Material
PTFE
Product Weight
0.49 lbs

Related Documents

Product Questions & Answers (1)

Question by: Sherry L on Mar 16, 2026, 12:01 PM
Hey, will this hose hold up to brake cleaner and other chemicals?
Answer by: Customer Support on Mar 18, 2026, 6:46 AM
This Winner PTFE hose is constructed from PTFE with a stainless steel cover, making it suitable for use with a wide range of chemicals. It's a reliable choice for chemical applications due to its premium abrasion resistance.
