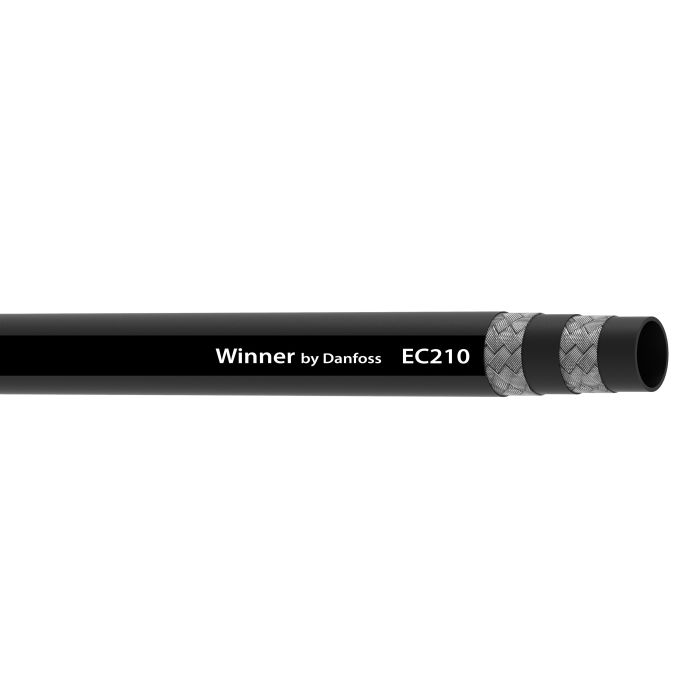

HYDRAULIC HOSE EN 853 TYPE 2SM SIZE -48

Description & Features

Designed for hydraulic system service with petroleum and water-based fluids, the Winner by Danfoss/Eaton EC210 Series is engineered for maximum durability. This hydraulic hose features a robust 2-ply steel braid construction, ensuring it withstands high-pressure conditions while maintaining flexibility with a minimum bend radius of 35.43 inches. The synthetic rubber cover and tube enhance the hose's abrasion resistance, making it suitable for various industrial applications.

The HYDRAULIC HOSE EN 853 TYPE 2SM SIZE -48 is a reliable choice for those requiring a hose that offers a long impulse cycle life of up to 200,000 cycles. With a temperature range from -40°F, it performs consistently in demanding environments. The hose's black synthetic rubber cover is marked with an ink transfer lay line style, providing easy identification and traceability.

SKU: EC210-48L

Supplier Part Number (MPN): EC210-48L

Alternate Part Numbers: TK-EC210-48L

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number TK-EC210-48L	Application Hydraulic system service with petroleum and water-based fluids, for general industrial service.	Class WEB-ITEM	Color Black	Construction 2-ply braid	Cover Material Synthetic Rubber	Dash Size -48	Brand Danfoss (Industrial Hose Turkey)	Brand Danfoss Power Solutions	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 200000 cycle	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 35.43	Minimum Bend Radius 35.43	Minimum Working Temperature -40	Product Width 3.19	Reinforcement Material Steel	Supplier Part Number EC210-48L	Tube Material Synthetic Rubber	Product Weight 0.70 lbs

Product Questions & Answers (1)

Question by: Floyd R on Sep 16, 2025, 12:20 PM

What size is this hose exactly, in inches? Just want to make sure it'll fit my setup.

Answer by: Customer Support on Sep 17, 2025, 3:22 PM

That -48 dash size translates to a 3-inch inner diameter. The outer width of the hose is 3.19 inches.
