DANFOSS / EATON 100R16 HOSE

Description & Features

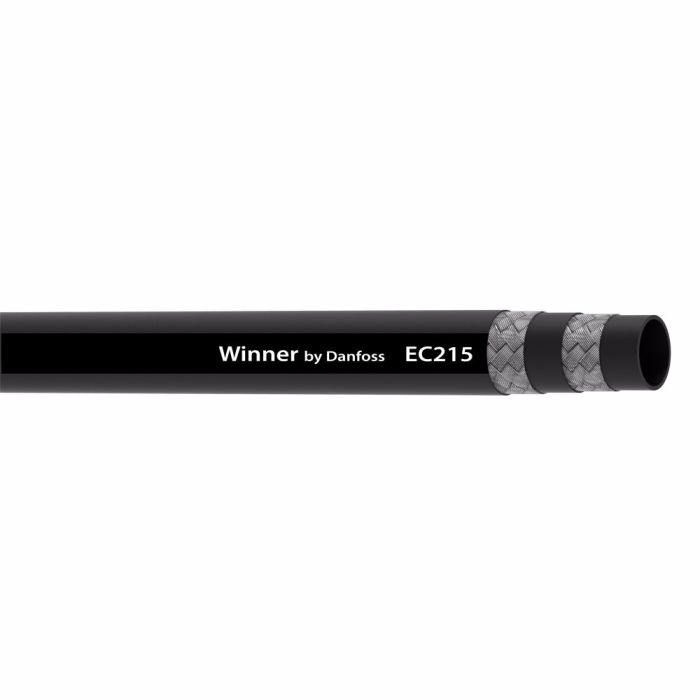

The Winner by Danfoss / Eaton EC215 Series Rubber Hydraulic Braided Hose ensures reliable performance in hydraulic system service with petroleum and water-base fluids as well as general industrial applications. Featuring a synthetic rubber cover and 2-ply braid construction this hose provides standard abrasion resistance and can withstand the highest pressures.

Certified with EN857 2SC USCG BWB MSHA and DNV this hose has a guaranteed impulse cycle life of 200000 cycles. It is engineered for maximum durability under harsh conditions ensuring it meets stringent industry standards.

The black hose with conductive properties is equipped with TTC Z and Winner 2-piece non-skived hose fittings contributing to an extended hose assembly life. It is not machine mountable and does not include adjustable ends or ratcheting features.

The minimum bend radius is 11.81 inches making it suitable for demanding environments.

Supplier Part Number: EC215-24L

Specifications

Brand
Winner by Danfoss
Abrasion Resistance
Standard
Conditional Temp Range
32 to 158 deg F for Water
Cover Material
Nitrile
Dash Size
24
For Use With
1A/Z Series Fittings
Hose Color
Black
Hose Type
Conductive
Impulse Cycle
200000
Impulse Cycle Life
200000
Inside Diameter
1-1/2 in
Lay Line Style
Embossed
nmfc
70
Package Form
Bulk
Reinforcement
2-Wire Braided Brass-Plated Steel Wire
Resistance
Abrasion
Resistance Properties
Abrasion
Segment Code
C
Series
EC215 Series
Tube Material
Nitrile

Similar Products

Model Number Nominal Size Dash Size Length Price Action
EN857 2SC Double Wire Braid Hose, 0.75 Inch ID, Up To 3125.00 PSI

EC215-12LRL Double Wire Braid Hose

3/4 in

12

EN857 2SC Double Wire Braid Hose, 0.25 Inch ID, Up To 5800.00 PSI

EC215-04LRL Double Wire Braid Hose

1/4 in

04

EN857 2SC Double Wire Braid Hose, 0.50 Inch ID, Up To 4000.00 PSI

EC215-08LRL Double Wire Braid Hose

1/2 in

08

EN857 2SC Double Wire Braid Hose, 1.00 Inch ID, Up To 2400.00 PSI

EC215-16LRL Double Wire Braid Hose

1 in

16

EN857 2SC Double Wire Braid Hose, 0.38 Inch ID, Up To 4800.00 PSI

EC215-06LRL Double Wire Braid Hose

3/8 in

06

EN857 2SC Double Wire Braid Hose, 0.62 Inch ID, Up To 3650.00 PSI

EC215-10LRL Double Wire Braid Hose

10

EN857 2SC Double Wire Braid Hose, 1.25 Inch ID, Up To 1800.00 PSI

EC215-20L Double Wire Braid Hose

20

EATON HOSE 50FT CUT LENGTH

EC215-12-06000

3/4 in

12

1 ft

EATON HOSE 50FT CUT LENGTH

EC215-20-06000

20

DANFOSS / EATON 100R16 HOSE

EC215-32L

32

DANFOSS / EATON HOSE

EC415-06L

3/8 in

06

Hose

EC415-08L

1/2 in

08

Hose

EC415-10L

10

EATON HOSE 50FT CUT LENGTH

EC415-12-06000

3/4 in

12

Hose

EC415-12L

3/4 in

12

EATON HOSE 50FT CUT LENGTH

EC415-16-06000

1 in

16

Hose

EC415-16L

1 in

16

EATON HOSE 50FT CUT LENGTH

EC415-20-06000

20

Hose

EC415-20L

20

EATON HOSE 50FT CUT LENGTH

EC415-24-06000

24

Hose

EC415-24L

24

Hose

EC415-32L

32

Product Questions & Answers (3)

Question by: Tommy F on Sep 19, 2025, 6:21 PM
hose says it's got a 200,000 cycle impulse life, is that enough for a heavy-duty hydraulic press running pretty much all day?
Answer by: Customer Support on Sep 21, 2025, 4:51 PM
For continuous or near-continuous duty cycles, 200,000 impulse cycles is a solid benchmark and meets what most industrial hydraulic press setups demand. The 2-ply wire braid construction and synthetic rubber tube are built to hold up under repeated pressure swings, and the EC215 series is rated for the highest working pressures in its class. That said, the actual calendar life you see will depend on your system's cycle frequency, so a press hammering through cycles faster will burn through that number sooner than one running at a moderate pace.
Question by: Hugh T on Nov 7, 2025, 4:26 PM
What's the smallest I can bend this without kinking it?
Answer by: Customer Support on Nov 9, 2025, 6:24 AM
You're looking at an 11.81 inch minimum bend radius on this hose.
Question by: Gary J on Oct 9, 2025, 11:34 AM
got a tight run on a machine and don’t wanna kink the line, how tight can this EC215-24L hose bend?
Answer by: Customer Support on Oct 11, 2025, 7:48 AM
For routing, the minimum bend radius on the EC215-24L is 11.81 inches. Keeping your bend at or above that radius helps prevent kinking and protects the hose structure.
