DANFOSS / EATON HOSE

Description & Features

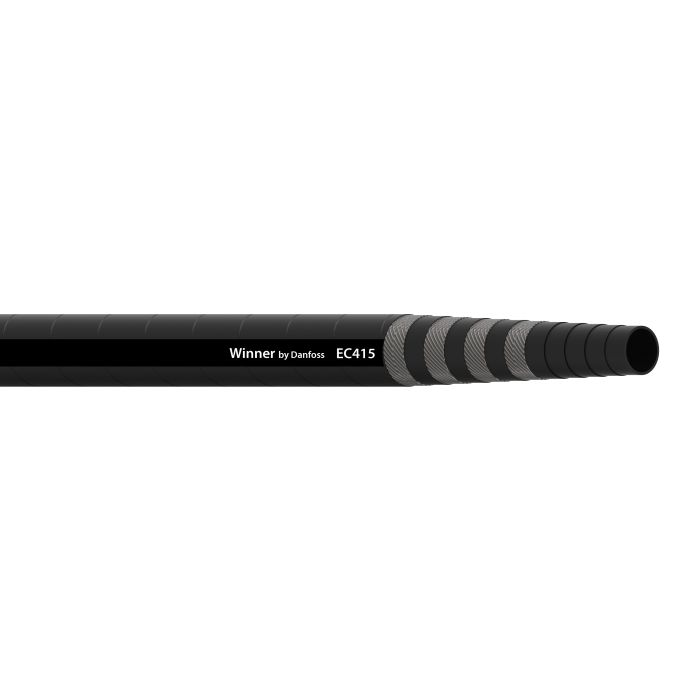

Designed for high-pressure hydraulic systems, the Winner by Danfoss / Eaton EC415 Series Rubber Hydraulic Spiral Hose is engineered for maximum durability. This robust hose features a four-spiral wire reinforcement, ensuring it withstands the highest pressures in demanding environments. Its synthetic rubber cover provides standard abrasion resistance, making it ideal for use with petroleum and water-based fluids.

Certified to SAE 100R12 and EN856 Type R12 standards, this black hose is both USCG and MSHA approved, confirming its compliance with stringent safety regulations. With a dash size of -6, it supports a minimum bend radius of 4.92 inches, offering flexibility without compromising performance.

SKU: EC415-06L

Supplier Part Number (MPN): EC415-06L

Alternate Part Numbers: TK-EC415-06L

Specifications

Abrasion Resistance Standard	Cover Material Nitrile	Dash Size 06	For Use With 4S/6S Series Fittings	Hose Color Black	Hose Type Conductive, Spiral	Impulse Cycle 500000	Impulse Cycle Life 500000	Inside Diameter 0.38 in	Lay Line Style Transfer Tape	nmfc 70	Nominal Size 3/8 in	Package Form Bulk	Reinforcement 4-Wire Spiral Brass-Plated Steel Wire	Resistance Abrasion	Resistance Properties Abrasion	Series EC415 Series	Tube Material Nitrile

Product Questions & Answers (1)

Question by: Rhonda H on Apr 9, 2025, 10:22 AM

Reckon this hose'll hold up okay for running hydraulic fluid on my backhoe? I need somethin' that can take a good bit of pressure.

Answer by: Customer Support on Apr 11, 2025, 8:54 AM

With its four-spiral wire reinforcement, this hose is built to handle high-pressure hydraulic systems and should work well on a backhoe using petroleum-based hydraulic fluid.
