Hose

Description & Features

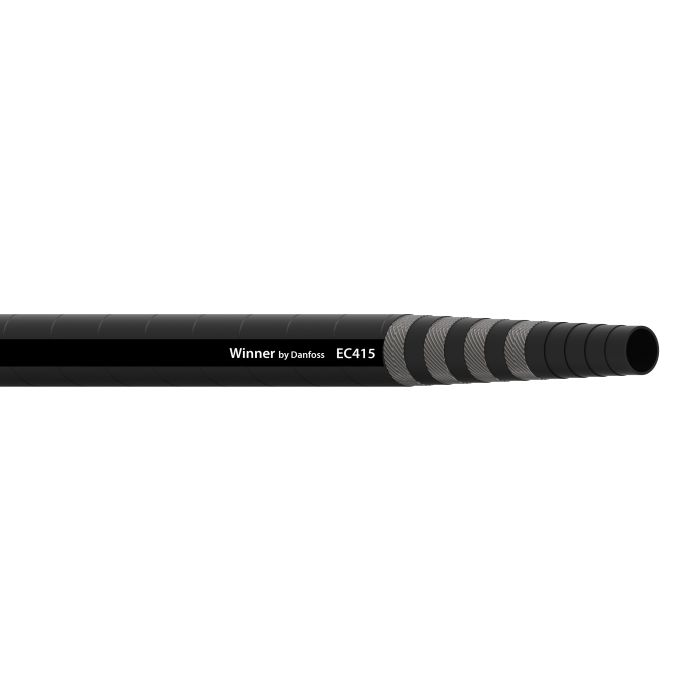

The Winner by Danfoss / Eaton EC415 Series Rubber Hydraulic Spiral Hose, designed for hydraulic systems service, is ideal for use with petroleum and water-based fluids. Known for its maximum durability under harsh conditions, this hose boasts a robust construction engineered to extend hose assembly life.

Constructed with 4 spiral wire reinforcement, the hose meets SAE 100R12 and EN856 Type R12 certifications. It features a synthetic rubber cover and tube material, providing standard abrasion resistance and conductivity.

With a minimum bend radius of 11.81 inches and an impulse cycle life of 500000 cycles, this hose is USCG and MSHA approved. It operates efficiently within a temperature range as low as -40 degrees.

Supplier Part Number: EC415-16L

Specifications

Abrasion Resistance Standard	Cover Material Nitrile	Dash Size 16	For Use With 4S/6S Series Fittings	Hose Color Black	Hose Type Conductive, Spiral	Impulse Cycle 500000	Impulse Cycle Life 500000	Inside Diameter 1 in	Lay Line Style Transfer Tape	nmfc 70	Nominal Size 1 in	Package Form Bulk	Reinforcement 4-Wire Spiral Brass-Plated Steel Wire	Resistance Abrasion	Resistance Properties Abrasion	Series EC415 Series	Tube Material Nitrile

Product Questions & Answers (3)

Question by: Brent M on Feb 22, 2026, 8:36 PM

does this hose work with water-based hydraulic fluids or just petroleum stuff?

Answer by: Customer Support on Feb 24, 2026, 8:44 AM

Both, actually. The EC415 series is rated for use with petroleum-based and water-based hydraulic fluids, so you've got flexibility depending on what your system runs on. The synthetic rubber tube handles either without issue.

Question by: Rex C on Oct 23, 2025, 5:02 PM

Got a -16 line to replace, is this EC415 hose the right kind for petroleum oil and water based hydraulic fluid?

Answer by: Customer Support on Oct 25, 2025, 6:17 AM

For general hydraulic system service, the EC415-16L is rated for petroleum and water based fluids, so it fits that use case for a -16 hose.

Question by: Curt F on Nov 22, 2025, 7:51 AM

does this hose hold up running petroleum-based fluid all day, every day, or is it more of a light-duty setup?

Answer by: Customer Support on Nov 23, 2025, 9:27 PM

Four-spiral wire reinforcement puts this one in the heavy-duty category. It's built to handle continuous hydraulic service with petroleum-based fluids and carries an impulse cycle life rated at 500,000 cycles, so it's not a light-duty product by any stretch. The synthetic rubber tube and cover hold up under those conditions, and the hose meets both SAE 100R12 and EN856 Type R12 certification standards, which are among the more demanding ratings in hydraulic hose service.
