Description & Features

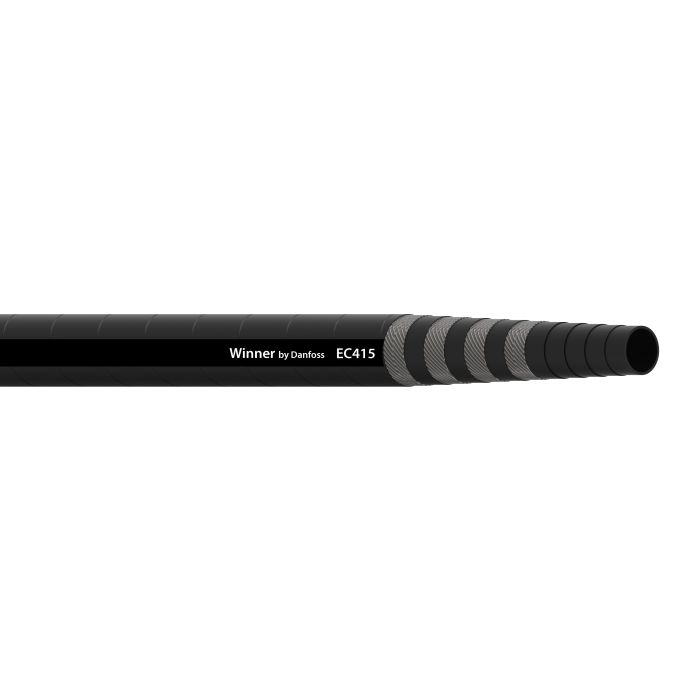

The Winner by Danfoss/Eaton EC415 Series Hydraulic Spiral Hose is crafted for hydraulic systems using petroleum and water-based fluids. This hose is characterized by its robust construction, engineered to handle maximum durability under harsh conditions.

Constructed with synthetic rubber and reinforced with wire, the hose features a 4-spiral construction and a black, abrasion-resistant cover. It is compliant with EN856 Type R12 and SAE 100R12 certifications.

The hose's system is engineered to extend its assembly life, capable of withstanding the highest pressures, with a remarkable impulse cycle life of 500000 cycles. Its minimum bend radius is 19.68 inches, and it can function effectively in temperatures as low as -40 degrees.

This Hose incorporates synthetic rubber for both its tube and cover materials, making it highly durable. The product width is 2.03 inches, and it is designed to meet USCG and MSHA approvals.

Supplier Part Number: EC415-24L

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number TK-EC415-24L	Application Hydraulic systems service with petroleum and water based fluids, for general use.	Certifications EN856 Type R12\|SAE 100R12	Color Black	Compliances USCG\|MSHA Approved	Conductivity 30	Construction 4 Spiral	Cover Material Synthetic Rubber	Dash Size -24	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 19.68	Minimum Bend Radius 19.68	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 2.03	Qualified Hose Fittings 4S, 6S	Reinforcement Material Wire	Sub Brand Winner	Supplier Part Number EC415-24L	Tube Material Synthetic Rubber	Product Weight 0.96 lbs

Product Questions & Answers (6)

Question by: Stan W on Apr 24, 2025, 8:21 AM

got a tight spot to route it through. what’s the minimum bend radius on this EC415-24L hose

Answer by: Customer Support on Apr 26, 2025, 6:46 AM

Minimum bend radius is 19.68, so you will want to keep your routing at or above that bend to avoid kinking and stressing the reinforcement.

Question by: Stan J on Jul 13, 2025, 8:50 AM

What kind of fittings work with this hose?

Answer by: Customer Support on Jul 14, 2025, 12:14 PM

This hose is qualified to work with 4S and 6S fittings.

Question by: Pete M on Mar 13, 2026, 7:55 AM

does this hose hold up to really high pressures or is it more of a light duty line?

Answer by: Customer Support on Mar 15, 2026, 6:20 AM

Four-spiral wire reinforcement puts this one in the heavy-duty category. It meets both SAE 100R12 and EN856 Type R12 ratings, which are built for high-pressure hydraulic service. The construction is rated for 500,000 impulse cycles, so it holds up under repeated pressure spikes, not just steady-state load. Petroleum and water-based fluids are both compatible with the tube material.

Question by: Norm P on Feb 1, 2026, 8:42 AM

what fluids is this hose rated for? petroleum only or does it handle water-based stuff too

Answer by: Customer Support on Feb 3, 2026, 8:06 AM

Petroleum and water-based hydraulic fluids are both covered with this hose. It's built for general hydraulic system service, so you're not limited to one fluid type. Just make sure your fittings are the right match since the qualified fitting series for this hose are 4S and 6S.

Question by: Rod R on Nov 20, 2025, 1:03 PM

What kind of hydraulic fluid can this hose handle?

Answer by: Customer Support on Nov 21, 2025, 5:30 PM

This hose is designed for hydraulic systems that use either petroleum-based or water-based fluids, making it suitable for a wide range of applications.

Question by: Dale B on Jun 27, 2025, 7:56 AM

got a -24 line on a hydraulic setup, will this EC415 hose work with petroleum oil and water-glycol type fluids?

Answer by: Customer Support on Jun 28, 2025, 3:42 PM

For hydraulic service with petroleum and water based fluids, the EC415 Series is a fit. It is built as a 4-spiral wire reinforced hose with a synthetic rubber tube and cover, aimed at general hydraulic use.
