Danfoss / Eaton Hose 4-SPRL R13

Description & Features

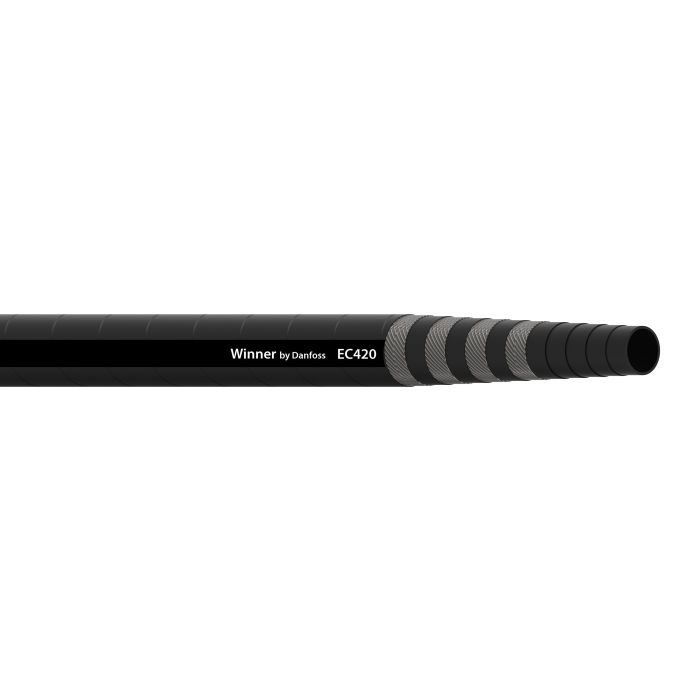

The Winner by Danfoss / Eaton EC420 Series Rubber Hydraulic Spiral Hose exhibits top-notch durability in harsh environments. Engineered for hydraulic systems facing extreme peak pressures and rigorous conditions it ensures a reliable performance.

Its robust construction featuring a multi-spiral reinforcement of wire is designed to withstand the highest pressures. This high-quality hose is crafted with a synthetic rubber tube and cover providing standard abrasion resistance to extend the assembly life.

Certified to meet EN856 Type R13 and SAE 100R13 standards it is MSHA approved DNV certified and complies with USCG regulations. The products conductivity is maintained through its trusted design and it includes a transfer tape lay line style for enhanced identification.

With a minimum bend radius of 11.81 inches and engineered for a long impulse cycle life of 500 000 cycles this hose is constructed to endure rigorous usage without compromising performance. Its black synthetic rubber cover material complements its functional resilience.

Winner by Danfoss / Eaton EC420 Series Hose demonstrates system optimization through its high-grade build ensuring longevity and reliability in demanding hydraulic applications.

Supplier Part Number: EC420-16L

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number EC420-16, Alternate Part Number TK-EC420-16L	Application Suitable for use in hydraulic systems with high peak pressures and arduous operating conditions.	Certifications EN856 Type R13\|SAE 100R13	Color Black	Compliances MSHA Approved\|DNV\|USCG	Conductivity 30	Construction Multi Spiral	Cover Material Synthetic Rubber	Dash Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 11.81	Minimum Bend Radius 11.81	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 1.57	Qualified Hose Fittings 4S	Reinforcement Material Wire	Sub Brand Winner	Supplier Part Number EC420-16L	Tube Material Synthetic Rubber	Product Weight 0.75 lbs

Product Questions & Answers (2)

Question by: Vince B on Oct 29, 2025, 8:49 PM

What kind of conditions is this hose built to handle?

Answer by: Customer Support on Oct 31, 2025, 6:26 AM

This hose is built for hydraulic systems dealing with really high pressure spikes and tough working environments.

Question by: Peggy S on May 27, 2025, 10:17 AM

Running a multi-line system that sees some pretty serious pressure spikes. Does this hose have the ratings and certifications to hold up in that kind of environment?

Answer by: Customer Support on May 29, 2025, 7:33 AM

Built to EN856 Type R13 and SAE 100R13 standards, the EC420-16L is specifically rated for hydraulic systems dealing with high peak pressures and tough operating conditions. The multi-spiral wire reinforcement is what gives it the backbone to handle those spikes without breaking down over time. It also carries MSHA, DNV, and USCG compliance, so it's cleared for some demanding and regulated environments. With a rated impulse cycle life of 500,000 cycles, it's engineered for sustained, high-stress service rather than just occasional use.
