Hydraulic Hose 6 SPRL 100R15 DURA-TUFF

Description & Features

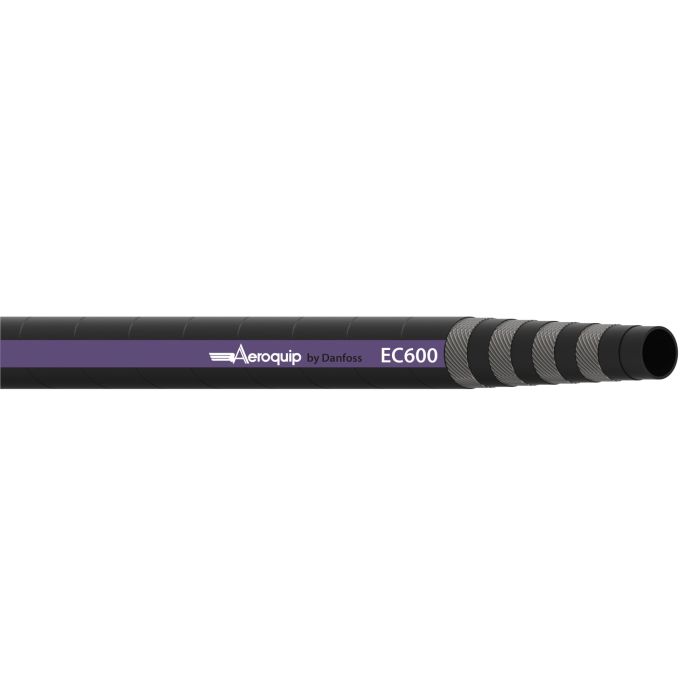

The Aeroquip by Danfoss / Eaton EC600 Series Rubber Hydraulic Spiral Hose is designed for high pressure hydraulic system service with petroleum and water-based fluids. Engineered with a robust construction this hose withstands the highest pressures and extends the life of hose assemblies. Equipped with premium abrasion resistance it ensures durability under harsh operating conditions.

Constructed with 6 spiral wire reinforcement and covered with synthetic rubber this hose meets SAE 100R15 and ISO 18752-DC Performance standards. It is also MSHA Approved DNV ABS Certified and USCG compliant.

With an impulse cycle life of 1 000 000 cycles and a minimum bend radius of 8.86 inches this hose delivers reliable performance. The hose is black in color and features conductive properties. It supports an application range down to -40 degrees providing versatility in various industrial environments.

Supplier Part Number: EC600-20

Specifications

Abrasion Resistance 28	Application High pressure hydraulic system service with petroleum and water-based fluids, for general industrial service	Certifications SAE 100R15\|ISO 18752-DC Performance	Color Black	Compliances MSHA Approved\|DNV\|ABS Certified\|USCG	Conductivity 30	Construction 6 Spiral	Cover Material Synthetic Rubber	Dash Size -20	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 1000000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 8.86	Minimum Bend Radius 8.86	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 1.99	Qualified Hose Fittings 1W, 4S, 6S	Reinforcement Material Wire	Supplier Part Number EC600-20	Tube Material Synthetic Rubber	Product Weight 4.42 lbs

Product Questions & Answers (1)

Question by: Kurt H on Apr 14, 2025, 7:28 AM

got a high pressure setup on a loader, and hoses keep getting scuffed up. is this EC600-20 built to take abrasion pretty well

Answer by: Customer Support on Apr 16, 2025, 6:49 AM

For rough service, the EC600-20 is built with a synthetic rubber cover and is called out for premium abrasion resistance, so it is a good match when the outside of the hose is seeing a lot of rubbing and wear in high pressure hydraulic work.
