Hose

Description & Features

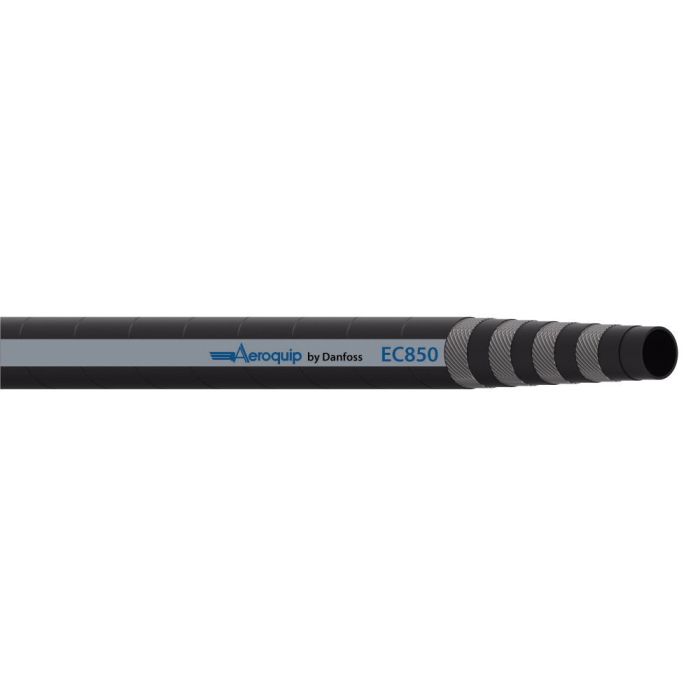

Eaton Aeroquip EC850 Series hose designed for ultra-high pressure hydraulic applications, including systems using petroleum-based fluids, water-glycol fluids, lubricating oils, and water.

This multi-spiral constructed hose features a synthetic rubber tube and a Dura-Tuff cover, offering premium abrasion resistance and maximum durability under harsh operating conditions. MSHA approved and EN45545 compliant, the Aeroquip hose is engineered for extended service life with a 500,000 cycle impulse life. It is suitable for use in temperatures from -40 degrees.

SKU: EC850-12

Supplier Part Number (MPN): EC850-12

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00015X09429	Application Ultra high pressure applications, hydraulic systems with petroleum and water-glycol based fluids, lubricating oils and water.	Certifications SAE 100R15\|EN856 Type R15	Color Black	Compliances MSHA Approved\|EN45545	Conductivity 30	Construction Multi Spiral	Cover Material Dura-Tuff	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 8.46	Minimum Bend Radius 8.46	Minimum Working Temperature -40	Product Width 1.18	Qualified Hose Fittings 1W	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number EC850-12	Tube Material Synthetic Rubber	Product Weight 2.80 lbs

Product Questions & Answers (2)

Question by: Roger C on Sep 18, 2025, 7:40 AM

What kind of pressure can this hose handle?

Answer by: Customer Support on Sep 19, 2025, 12:55 PM

Designed for ultra-high pressure hydraulic applications, this hose is built to withstand the demands of those systems.

Question by: Phil M on Dec 31, 2025, 9:24 PM

got a skid steer attachment that’s hard on hoses. how tough is the outer cover on this EC850?

Answer by: Customer Support on Jan 2, 2026, 11:17 AM

For rough, abrasive spots, the Dura Tuff cover is built for premium abrasion resistance and it is meant to hold up in harsh operating conditions.
