Hose

Description & Features

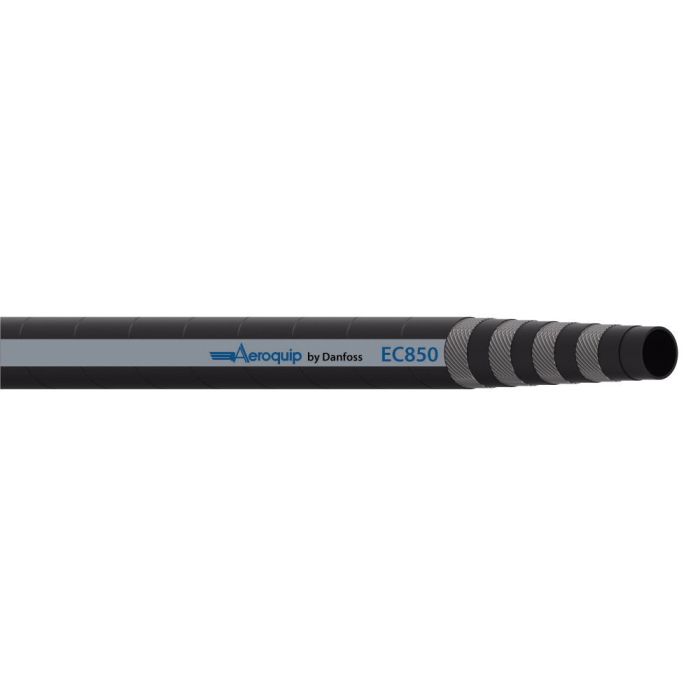

Designed for ultra high-pressure applications, the Eaton Aeroquip EC850 Series Rubber Hydraulic Spiral Hose is ideal for hydraulic systems utilizing petroleum and water-glycol based fluids, lubricating oils, and water. Engineered for maximum durability, this hose withstands harsh operating conditions, ensuring long-lasting performance and reliability. Its multi-spiral construction, reinforced with wire, provides robust protection against extreme pressures.

The EC850 hose features a durable Dura-Tuff cover, offering premium abrasion resistance and meeting certifications such as EN856 Type R15 and SAE 100R15. Its conductive properties enhance safety, while the synthetic rubber tube material ensures flexibility and efficiency. With a minimum bend radius of 10.63 inches and a product width of 1.57 inches, it is well-suited for demanding industrial environments. Compliant with EN45545 and MSHA standards, this hose guarantees safety and quality.

SKU: EC850-16

Supplier Part Number (MPN): EC850-16

Specifications

Abrasion Resistance 28	Application Ultra high pressure applications, hydraulic systems with petroleum and water-glycol based fluids, lubricating oils and water.	Certifications EN856 Type R15\|SAE 100R15	Color Black	Compliances EN45545\|MSHA Approved	Conductivity 30	Construction Multi Spiral	Cover Material Dura-Tuff	Dash Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 10.63	Minimum Bend Radius 10.63	Minimum Working Temperature -40	Product Width 1.57	Qualified Hose Fittings 1W	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number EC850-16	Tube Material Synthetic Rubber	Product Weight 5.54 lbs

Product Questions & Answers (2)

Question by: Vince M on Jul 8, 2025, 10:01 AM

got a skid steer with a tight hose run, how sharp can i bend this EC850-16 before it starts kinking

Answer by: Customer Support on Jul 9, 2025, 5:14 PM

For routing, the minimum bend radius on the EC850-16 is 10.63 inches. Keeping your bends at or above that radius helps it stay flexible without stressing the hose construction.

Question by: Connie E on Feb 18, 2026, 6:42 AM

What kind of fluids can I run through this hose? Just want to make sure it's compatible with what we use in our shop.

Answer by: Customer Support on Feb 20, 2026, 6:58 AM

This Aeroquip EC850 hose is designed for hydraulic systems that use petroleum and water-glycol based fluids, lubricating oils, and of course, water.
