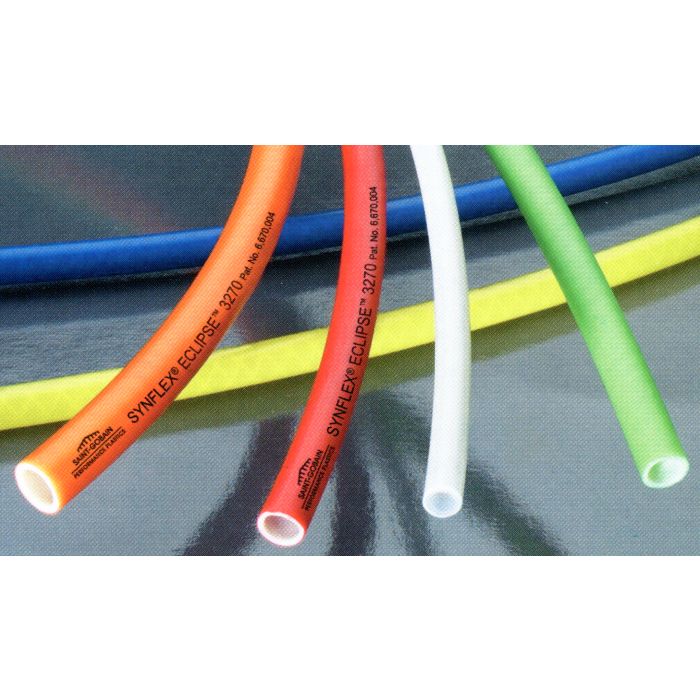

Eclipse / Solstice Nylon Air Brake Tubing
Description & Features
| Agency Listings | Meets the performance of SAE J844, J1131, J2494-3 DOT-FMVSS 106 |
| Application | Truck & Trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies. |
| Construction | 100% polyamide construction with polyester yarn reinforcement. UV stabilized, thermoformable. |
| Features | Superior abrasion resistance over rubber and Nylon 11 • Easy burr-free cutting to assemble • Enhanced flexibility over other nylon tubing • Improved flow performance over rubber & nylon. |
| Temperature Range | -65°F to 200°F. |
Products
| Model Number | Type | O.D. | Wall Thickness | I.D. | Minimum Bend Radius | Color | Burst Pressure | Package Qty. | Price | Action |
|---|---|---|---|---|---|---|---|---|---|---|
3270-0610-0100 Eclipse / Solstice Air Brake Tubing |
B |
0.375 in |
0.06 |
0.25 in |
1.5 |
Black |
|
100 |
|
|
3270-0610-0500 Eclipse / Solstice Air Brake Tubing |
B |
0.375 in |
0.06 |
0.25 in |
1.5 |
Black |
|
500 |
|
|
3270-0612-0500 Eclipse / Solstice Air Brake Tubing |
B |
0.375 in |
0.06 |
0.25 in |
1.5 |
Red |
|
500 |
|
|
3270-0613-0500 Eclipse / Solstice Air Brake Tubing |
B |
0.375 in |
0.06 |
0.25 in |
1.5 |
Orange |
|
500 |
|
|
3270-0614-0500 Eclipse / Solstice Air Brake Tubing |
B |
0.375 in |
0.06 |
0.25 in |
1.5 |
Yellow |
|
500 |
|
|
3270-0615-0500 Eclipse / Solstice Air Brake Tubing |
B |
0.375 in |
0.06 |
0.25 in |
1.5 |
Green |
|
500 |
|
|
3270-0616-0500 Eclipse / Solstice Air Brake Tubing |
B |
0.375 in |
0.06 |
0.25 in |
1.5 |
Blue |
|
500 |
|
|
3270-0810-0100 Eclipse / Solstice Air Brake Tubing |
B |
0.5 in |
0.06 |
0.38 in |
2 |
Black |
|
100 |
|
|
3270-0810-0500 Eclipse / Solstice Air Brake Tubing |
B |
0.5 in |
0.06 |
0.38 in |
2 |
Black |
|
500 |
|
|
3270-08104 Eclipse / Solstice Air Brake Tubing |
B |
0.5 in |
0.06 |
0.38 in |
2 |
Black |
|
1500 |
|
|
3270-0812-0500 Eclipse / Solstice Air Brake Tubing |
B |
0.5 in |
0.06 |
0.38 in |
2 |
Red |
|
500 |
|
|
3270-08124 Eclipse / Solstice Air Brake Tubing |
B |
0.5 in |
0.06 |
0.38 in |
2 |
Red |
|
1500 |
|
|
3270-0815-0500 Eclipse / Solstice Air Brake Tubing |
B |
0.5 in |
0.06 |
0.38 in |
2 |
Green |
|
500 |
|
|
3270-1010-0250 Eclipse / Solstice Air Brake Tubing |
B |
0.625 in |
0.09 |
0.44 in |
2.5 |
Black |
|
250 |
|
|
3270-10103 Eclipse / Solstice Air Brake Tubing |
B |
0.625 in |
0.09 |
0.44 in |
2.5 |
Black |
|
750 |
|
|
3270-1012-0250 Eclipse / Solstice Air Brake Tubing |
B |
0.625 in |
0.09 |
0.44 in |
2.5 |
Red |
|
250 |
|
|
3270-1013-0250 Eclipse / Solstice Air Brake Tubing |
B |
0.625 in |
0.09 |
0.44 in |
2.5 |
Orange |
|
250 |
|
|
3270-1015-0250 Eclipse / Solstice Air Brake Tubing |
B |
0.625 in |
0.09 |
0.44 in |
2.5 |
Green |
|
250 |
|
|
3270-1016-0250 Eclipse / Solstice Air Brake Tubing |
B |
0.625 in |
0.09 |
0.44 in |
2.5 |
Blue |
|
250 |
|
|
3270-1210-0250 Eclipse / Solstice Air Brake Tubing |
B |
0.75 in |
0.09 |
0.57 in |
3 |
Black |
|
250 |
|
|
3270-1215-0250 Eclipse / Solstice Air Brake Tubing |
B |
0.75 in |
0.09 |
0.57 in |
3 |
Green |
|
250 |
|
|
4245-0220-1000 Eclipse / Solstice Air Brake Tubing |
A |
0.125 in |
0.02 |
0.08 in |
1.25 |
Black |
|
1000 |
|
|
4245-0520-0500 Eclipse / Solstice Air Brake Tubing |
A |
0.313 in |
0.04 |
0.23 in |
1.13 |
Black |
|
500 |
|
|
4247-0410-0100 Eclipse / Solstice Air Brake Tubing |
A |
0.25 in |
0.04 |
0.17 in |
1 |
Black |
|
100 |
|
|
4247-0410-1000 Eclipse / Solstice Air Brake Tubing |
A |
0.25 in |
0.04 |
0.17 in |
1 |
Black |
|
1000 |
|
|
4247-0412-1000 Eclipse / Solstice Air Brake Tubing |
A |
0.25 in |
0.04 |
0.17 in |
1 |
Red |
|
1000 |
|
|
4247-0413-1000 Eclipse / Solstice Air Brake Tubing |
A |
0.25 in |
0.04 |
0.17 in |
1 |
Orange |
|
1000 |
|
|
4247-0414-1000 Eclipse / Solstice Air Brake Tubing |
A |
0.25 in |
0.04 |
0.17 in |
1 |
Yellow |
|
1000 |
|
|
4247-0415-1000 Eclipse / Solstice Air Brake Tubing |
A |
0.25 in |
0.04 |
0.17 in |
1 |
Green |
|
1000 |
|
|
4247-0416-1000 Eclipse / Solstice Air Brake Tubing |
A |
0.25 in |
0.04 |
0.17 in |
1 |
Blue |
|
1000 |
|
Product Questions & Answers (1)
Question by: Gene B on Jun 18, 2025, 8:02 PM
What's the temperature range this tubing can handle?
Answer by: Customer Support on Jun 20, 2025, 6:33 AM
This tubing is rated to handle temperatures from -65°F up to 200°F.
