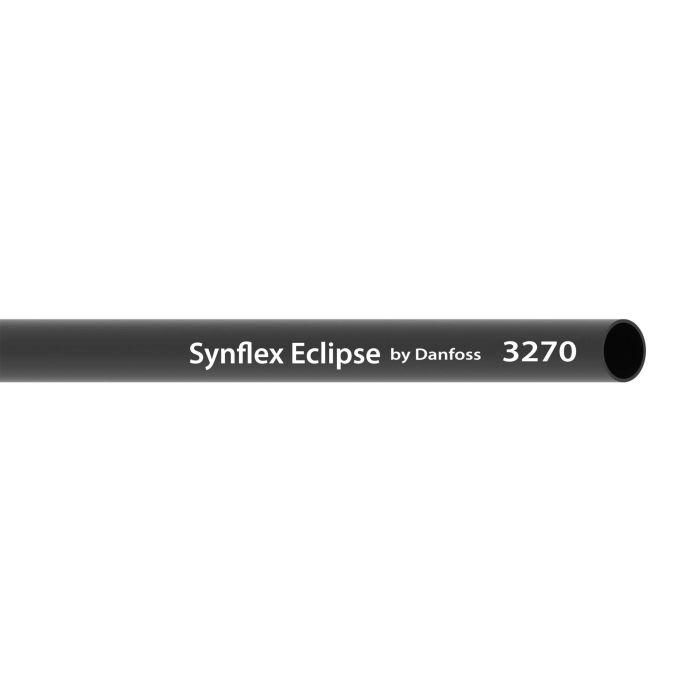

main product photo

Nylon Air Brake Tubing, Black, 0.38 Inch OD, 0.06 Inch Wall Thickness, 100 Feet Per Pack

Ask A Question

Description & Features

The black nylon air brake tubing is designed for use in truck and trailer air brake systems auxiliary air systems and air brake harness assemblies. It features a 0.38 inch outer diameter and a 0.06 inch wall thickness providing durability and reliability in demanding applications.

Its 100% polyamide construction with polyester yarn reinforcement ensures exceptional performance meeting SAE J844 J1131 J2494-3 DOT-FMVSS 106 standards. This tubing boasts superior abrasion resistance compared to rubber and Nylon 11 making it ideal for harsh environments.

With a minimum bend radius of 1.5 inches and an impulse cycle life of 125 000 cycles this air brake tubing offers enhanced flexibility and longevity. The ink jet lay line style allows for easy identification while the non-conductive material ensures safety in various applications.

The Eaton Synflex 3270 Series Airbrake Hose and Tubing is designed for quick burr-free cutting and easy assembly enhancing installation efficiency. Its operating temperature range of -65deg;F to 200deg;F ensures reliable performance in extreme conditions.

**Supplier Part Number:** 3270-0610-0100 **MPN:** EAR99

Specifications

Brand
Synflex® by Danfoss
Color
Black
Conductive
Non-Conductive
Cover Material
Polyester
Dash Size
06
Impulse Cycle Life
125000
Inside Diameter
1/4 in
Lay Line Style
Inkjet
Material
Polymer
Material Construction
Polyamide
Nominal Size
3/8 in
Reinforcement
1-Ply Braided Synthetic Fiber
Resistance
Abrasion
Resistance Properties
Abrasion
Series
3270 Series
Tube Material
Nylon

Similar Products

Model Number Type O.D. Wall Thickness I.D. Minimum Bend Radius Color Burst Pressure Package Qty. Price Action
Nylon Air Brake Tubing, Black, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0610-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Black

500

Nylon Air Brake Tubing, Red, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0612-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Red

500

Nylon Air Brake Tubing, Orange, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0613-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Orange

500

Nylon Air Brake Tubing, Yellow, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0614-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Yellow

500

Nylon Air Brake Tubing, Green, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0615-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Green

500

Nylon Air Brake Tubing, Blue, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0616-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Blue

500

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 100 Feet Per Pack

3270-0810-0100 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Black

100

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0810-0500 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Black

500

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 1500 Feet Per Pack

3270-08104 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Black

1500

Nylon Air Brake Tubing, Red, 0.50 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0812-0500 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Red

500

Nylon Air Brake Tubing, Red, 0.50 Inch OD, 0.06 Inch Wall Thickness, 1500 Feet Per Pack

3270-08124 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Red

1500

Nylon Air Brake Tubing, Green, 0.50 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0815-0500 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Green

500

Nylon Air Brake Tubing, Black, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1010-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Black

250

Nylon Air Brake Tubing, Black, 0.63 Inch OD, 0.09 Inch Wall Thickness, 750 Feet Per Pack

3270-10103 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Black

750

Nylon Air Brake Tubing, Red, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1012-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Red

250

Nylon Air Brake Tubing, Orange, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1013-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Orange

250

Nylon Air Brake Tubing, Green, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1015-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Green

250

Nylon Air Brake Tubing, Blue, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1016-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Blue

250

Nylon Air Brake Tubing, Black, 0.75 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1210-0250 Eclipse / Solstice Air Brake Tubing

B

0.75 in

0.09

0.57 in

3

Black

250

Nylon Air Brake Tubing, Green, 0.75 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1215-0250 Eclipse / Solstice Air Brake Tubing

B

0.75 in

0.09

0.57 in

3

Green

250

Nylon Air Brake Tubing, Black, 0.13 Inch OD, 0.02 Inch Wall Thickness, 1000 Feet Per Pack

4245-0220-1000 Eclipse / Solstice Air Brake Tubing

A

0.125 in

0.02

0.08 in

1.25

Black

1000

Nylon Air Brake Tubing, Black, 0.31 Inch OD, 0.04 Inch Wall Thickness, 500 Feet Per Pack

4245-0520-0500 Eclipse / Solstice Air Brake Tubing

A

0.313 in

0.04

0.23 in

1.13

Black

500

Nylon Air Brake Tubing, Black, 0.25 Inch OD, 0.04 Inch Wall Thickness, 100 Feet Per Pack

4247-0410-0100 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Black

100

Nylon Air Brake Tubing, Black, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0410-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Black

1000

Nylon Air Brake Tubing, Red, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0412-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Red

1000

Nylon Air Brake Tubing, Orange, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0413-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Orange

1000

Nylon Air Brake Tubing, Yellow, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0414-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Yellow

1000

Nylon Air Brake Tubing, Green, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0415-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Green

1000

Nylon Air Brake Tubing, Blue, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0416-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Blue

1000

Product Questions & Answers (1)

Question by: Wes G on Feb 28, 2026, 11:24 AM
What kind of applications is this tubing suitable for?
Answer by: Customer Support on Mar 1, 2026, 12:27 PM
This nylon air brake tubing works well in truck and trailer air brake systems, auxiliary air systems, and air brake harness assemblies. It's also good for formed tubes and straight air brake harness assemblies.
