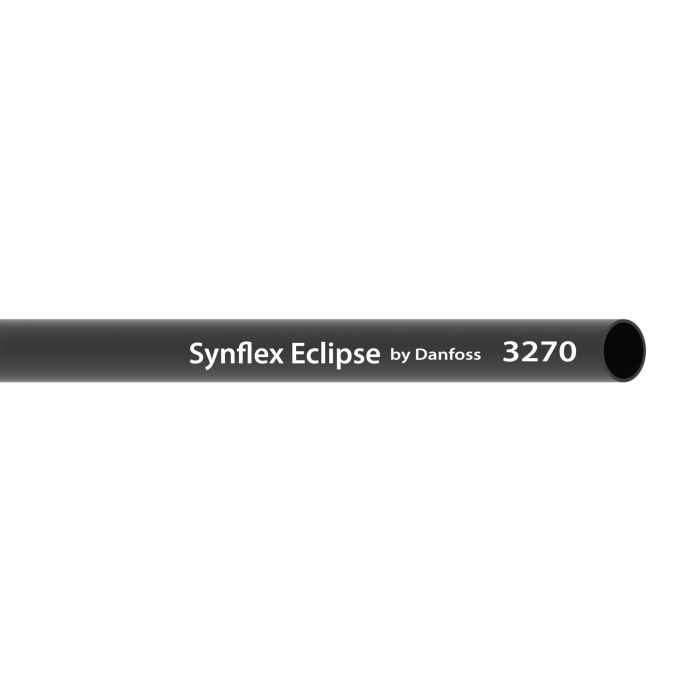

Nylon Air Brake Tubing, Black, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

Ask A Question

Description & Features

Crafted by Danfoss Power Solutions this premium air brake tubing is designed for truck and trailer air brake systems auxiliary air systems and both formed and straight air brake harness assemblies. With an outer diameter of 0.38 inches and a wall thickness of 0.06 inches this black nylon tubing offers superior flexibility compared to other nylon options.

Constructed from 100% polyamide with polyester yarn reinforcement this air brake tubing is UV stabilized and thermoformable. It provides enhanced abrasion resistance and features a minimum bend radius of 1.5 inches ensuring durability and reliable performance in demanding environments. The multi-braid construction and synthetic fiber reinforcement guarantee longevity and strength.

This tubing meets the performance requirements of SAE J844 J1131 J2494-3 DOT-FMVSS 106. Non-conductive and designed for easy burr-free cutting it also boasts improved flow performance. The ink jet lay line style adds to its reliable construction characteristics.

Designed to withstand a temperature range from -65deg;F to 200deg;F this air brake tubing is suitable for a variety of industrial applications. It has an impulse cycle life of 125000 cycles making it a dependable choice for any air brake system.

MPN: C1MJ44

Specifications

Brand
Synflex® by Danfoss
Color
Black
Conductive
Non-Conductive
Cover Material
Polyester
Dash Size
06
Impulse Cycle Life
125000
Inside Diameter
1/4 in
Lay Line Style
Inkjet
Material
Polymer
Material Construction
Polyamide
Nominal Size
3/8 in
Reinforcement
Multi-Braided Synthetic Fiber
Resistance
Abrasion
Resistance Properties
Abrasion
Series
3270 Series
Tube Material
Nylon

Similar Products

Model Number Type O.D. Wall Thickness I.D. Minimum Bend Radius Color Burst Pressure Package Qty. Price Action
Nylon Air Brake Tubing, Black, 0.38 Inch OD, 0.06 Inch Wall Thickness, 100 Feet Per Pack

3270-0610-0100 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Black

100

Nylon Air Brake Tubing, Red, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0612-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Red

500

Nylon Air Brake Tubing, Orange, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0613-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Orange

500

Nylon Air Brake Tubing, Yellow, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0614-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Yellow

500

Nylon Air Brake Tubing, Green, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0615-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Green

500

Nylon Air Brake Tubing, Blue, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0616-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Blue

500

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 100 Feet Per Pack

3270-0810-0100 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Black

100

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0810-0500 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Black

500

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 1500 Feet Per Pack

3270-08104 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Black

1500

Nylon Air Brake Tubing, Red, 0.50 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0812-0500 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Red

500

Nylon Air Brake Tubing, Red, 0.50 Inch OD, 0.06 Inch Wall Thickness, 1500 Feet Per Pack

3270-08124 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Red

1500

Nylon Air Brake Tubing, Green, 0.50 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0815-0500 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Green

500

Nylon Air Brake Tubing, Black, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1010-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Black

250

Nylon Air Brake Tubing, Black, 0.63 Inch OD, 0.09 Inch Wall Thickness, 750 Feet Per Pack

3270-10103 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Black

750

Nylon Air Brake Tubing, Red, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1012-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Red

250

Nylon Air Brake Tubing, Orange, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1013-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Orange

250

Nylon Air Brake Tubing, Green, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1015-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Green

250

Nylon Air Brake Tubing, Blue, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1016-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Blue

250

Nylon Air Brake Tubing, Black, 0.75 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1210-0250 Eclipse / Solstice Air Brake Tubing

B

0.75 in

0.09

0.57 in

3

Black

250

Nylon Air Brake Tubing, Green, 0.75 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1215-0250 Eclipse / Solstice Air Brake Tubing

B

0.75 in

0.09

0.57 in

3

Green

250

Nylon Air Brake Tubing, Black, 0.13 Inch OD, 0.02 Inch Wall Thickness, 1000 Feet Per Pack

4245-0220-1000 Eclipse / Solstice Air Brake Tubing

A

0.125 in

0.02

0.08 in

1.25

Black

1000

Nylon Air Brake Tubing, Black, 0.31 Inch OD, 0.04 Inch Wall Thickness, 500 Feet Per Pack

4245-0520-0500 Eclipse / Solstice Air Brake Tubing

A

0.313 in

0.04

0.23 in

1.13

Black

500

Nylon Air Brake Tubing, Black, 0.25 Inch OD, 0.04 Inch Wall Thickness, 100 Feet Per Pack

4247-0410-0100 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Black

100

Nylon Air Brake Tubing, Black, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0410-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Black

1000

Nylon Air Brake Tubing, Red, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0412-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Red

1000

Nylon Air Brake Tubing, Orange, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0413-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Orange

1000

Nylon Air Brake Tubing, Yellow, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0414-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Yellow

1000

Nylon Air Brake Tubing, Green, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0415-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Green

1000

Nylon Air Brake Tubing, Blue, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0416-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Blue

1000

Product Questions & Answers (2)

Question by: Rod B on May 5, 2025, 9:54 PM
What kind of temperatures can this tubing handle? Need something that won't crack in the winter.
Answer by: Customer Support on May 7, 2025, 7:51 PM
It's rated to handle temperatures from -65°F up to 200°F, so it should hold up well even in freezing conditions.
Question by: Larry W on Oct 4, 2025, 12:23 PM
got a tight spot to snake this line through. how tight can i bend it without kinkin it
Answer by: Customer Support on Oct 6, 2025, 6:58 AM
For routing in tight areas, the minimum bend radius on this tubing is 1.5 inches. Staying at or above that radius helps it hold its shape and keeps flow from getting pinched off.
