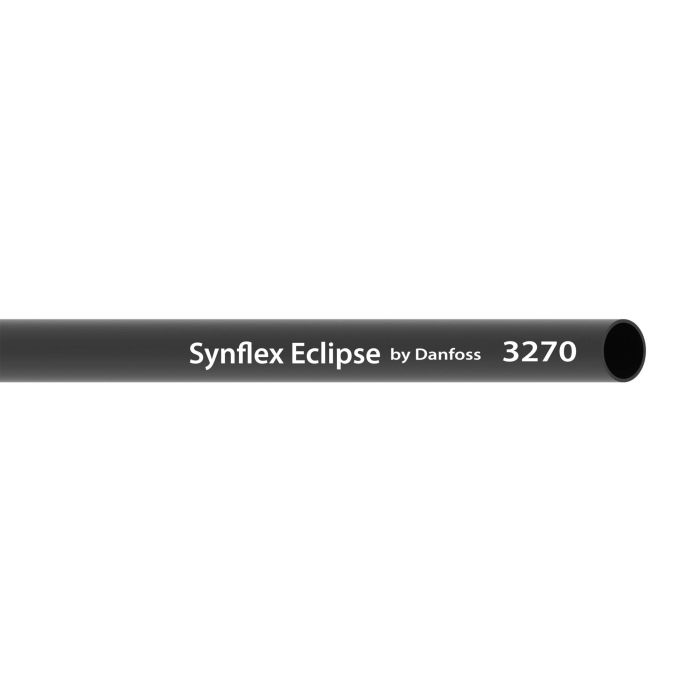

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 100 Feet Per Pack

Description & Features

Designed for truck and trailer air brake systems the Nylon Air Brake Tubing Black 0.50 Inch OD 0.06 Inch Wall Thickness 100 Feet Per Pack is engineered to meet the performance requirements of SAE J844 J1131 and J2494-3 DOT-FMVSS 106.

This tubing features superior abrasion resistance over rubber and Nylon 11 enhanced flexibility and non-conductive properties making it ideal for auxiliary air systems formed tubes and harness assemblies. The tube is UV stabilized and thermoformable with a minimum bend radius of just 2 inches.

Constructed from 100% polyamide with polyester yarn reinforcement it ensures durability across a temperature range of -65deg;F to 200deg;F. The premium construction includes synthetic fiber reinforcement and a lay line style of Ink Jet. The outer diameter is 0.50 inches and the inner diameter is 0.38 inches with a wall thickness of 0.06 inches offering improved flow performance.

ECCN: EAR99

Supplier Part Number: 3270-0810-0100

Specifications

Abrasion Resistance 28	Application Truck air brake systems, trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies.	Color Black	Conductivity 13552	Construction Multi Braid	Cover Material Polyester	Dash Size -8	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM FT	I.D. 0.38 in	Impulse Cycle Life 125000 cycle	Lay Line Style Ink Jet	Minimum Bend Radius 2	Minimum Bend Radius 2	Minimum Working Temperature -40	O.D. 0.5 in	Package Qty. 100	Reinforcement Material Synthetic fiber	Supplier Part Number 3270-0810-0100	Tube Material Nylon	Type B	Wall Thickness 0.06	Alternate Part Numbers Alternate Part Number C1KU76, Alternate Part Number MINO-00015X05593	Product Weight 0.12 lbs

Similar Products

Model Number	Type	O.D.	Wall Thickness	I.D.	Minimum Bend Radius	Color	Package Qty.
3270-0610-0100 Eclipse / Solstice Air Brake Tubing	B	0.375 in	0.06	0.25 in	1.5	Black	100
3270-0610-0500 Eclipse / Solstice Air Brake Tubing	B	0.375 in	0.06	0.25 in	1.5	Black	500
3270-0612-0500 Eclipse / Solstice Air Brake Tubing	B	0.375 in	0.06	0.25 in	1.5	Red	500
3270-0613-0500 Eclipse / Solstice Air Brake Tubing	B	0.375 in	0.06	0.25 in	1.5	Orange	500
3270-0614-0500 Eclipse / Solstice Air Brake Tubing	B	0.375 in	0.06	0.25 in	1.5	Yellow	500
3270-0615-0500 Eclipse / Solstice Air Brake Tubing	B	0.375 in	0.06	0.25 in	1.5	Green	500
3270-0616-0500 Eclipse / Solstice Air Brake Tubing	B	0.375 in	0.06	0.25 in	1.5	Blue	500
3270-0810-0500 Eclipse / Solstice Air Brake Tubing	B	0.5 in	0.06	0.38 in	2	Black	500
3270-08104 Eclipse / Solstice Air Brake Tubing	B	0.5 in	0.06	0.38 in	2	Black	1500
3270-0812-0500 Eclipse / Solstice Air Brake Tubing	B	0.5 in	0.06	0.38 in	2	Red	500
3270-08124 Eclipse / Solstice Air Brake Tubing	B	0.5 in	0.06	0.38 in	2	Red	1500
3270-0815-0500 Eclipse / Solstice Air Brake Tubing	B	0.5 in	0.06	0.38 in	2	Green	500
3270-1010-0250 Eclipse / Solstice Air Brake Tubing	B	0.625 in	0.09	0.44 in	2.5	Black	250
3270-10103 Eclipse / Solstice Air Brake Tubing	B	0.625 in	0.09	0.44 in	2.5	Black	750
3270-1012-0250 Eclipse / Solstice Air Brake Tubing	B	0.625 in	0.09	0.44 in	2.5	Red	250
3270-1013-0250 Eclipse / Solstice Air Brake Tubing	B	0.625 in	0.09	0.44 in	2.5	Orange	250
3270-1015-0250 Eclipse / Solstice Air Brake Tubing	B	0.625 in	0.09	0.44 in	2.5	Green	250
3270-1016-0250 Eclipse / Solstice Air Brake Tubing	B	0.625 in	0.09	0.44 in	2.5	Blue	250
3270-1210-0250 Eclipse / Solstice Air Brake Tubing	B	0.75 in	0.09	0.57 in	3	Black	250
3270-1215-0250 Eclipse / Solstice Air Brake Tubing	B	0.75 in	0.09	0.57 in	3	Green	250
4245-0220-1000 Eclipse / Solstice Air Brake Tubing	A	0.125 in	0.02	0.08 in	1.25	Black	1000
4245-0520-0500 Eclipse / Solstice Air Brake Tubing	A	0.313 in	0.04	0.23 in	1.13	Black	500
4247-0410-0100 Eclipse / Solstice Air Brake Tubing	A	0.25 in	0.04	0.17 in	1	Black	100
4247-0410-1000 Eclipse / Solstice Air Brake Tubing	A	0.25 in	0.04	0.17 in	1	Black	1000
4247-0412-1000 Eclipse / Solstice Air Brake Tubing	A	0.25 in	0.04	0.17 in	1	Red	1000
4247-0413-1000 Eclipse / Solstice Air Brake Tubing	A	0.25 in	0.04	0.17 in	1	Orange	1000
4247-0414-1000 Eclipse / Solstice Air Brake Tubing	A	0.25 in	0.04	0.17 in	1	Yellow	1000
4247-0415-1000 Eclipse / Solstice Air Brake Tubing	A	0.25 in	0.04	0.17 in	1	Green	1000
4247-0416-1000 Eclipse / Solstice Air Brake Tubing	A	0.25 in	0.04	0.17 in	1	Blue	1000

Product Questions & Answers (3)

Question by: Cindy F on Aug 15, 2025, 2:18 PM

trying to make a tighter bend around a bracket, how sharp can i bend this 1/2" OD tubing without kinkin it

Answer by: Customer Support on Aug 17, 2025, 6:33 AM

For tight routing, the minimum bend radius called out for this tubing is 2 inches. Keeping your bend at or above that radius helps it form without kinking.

Question by: Jimmy G on Apr 22, 2025, 8:00 PM

tubing rated for actual air brake use or is it more of a general purpose line?

Answer by: Customer Support on Apr 24, 2025, 11:04 AM

Built specifically for truck and trailer air brake systems, this nylon tubing meets SAE J844, J1131, and J2494-3 as well as DOT-FMVSS 106, so it qualifies for real air brake service, not just general hydraulic connections work. It also works for auxiliary air systems and formed harness assemblies. The 100% polyamide construction with polyester yarn reinforcement handles a temperature range of -65°F to 200°F, which covers the kind of operating conditions you run into on commercial vehicles year round.

Question by: Connie J on Mar 20, 2026, 9:55 AM

What's the smallest you can bend this tubing without kinking it?

Answer by: Customer Support on Mar 21, 2026, 4:40 PM

The manufacturer says you can get a bend radius down to 2 inches without problems.
