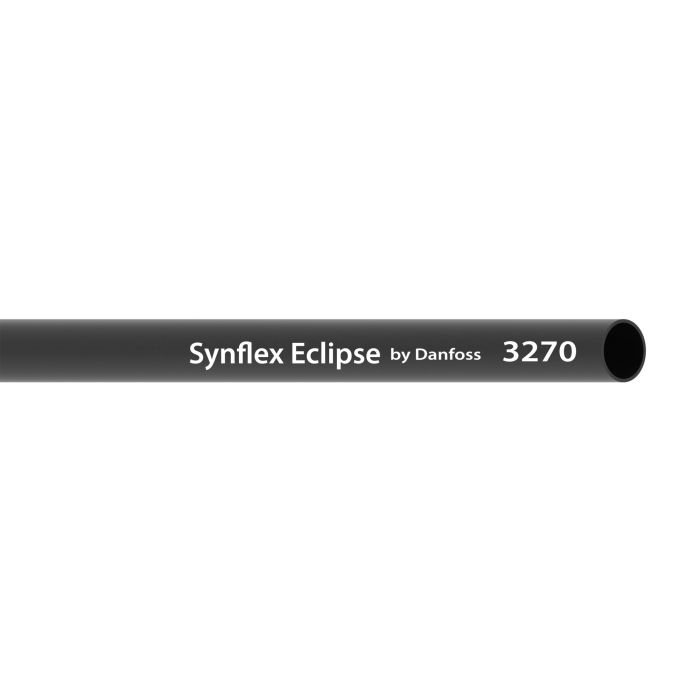

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 1500 Feet Per Pack

Description & Features

Danfoss Power Solutions (Aeroquip Inc) offers a robust solution with their 3270 Eclipse Air Brake Tubing. This high-quality tubing colored black features an outer diameter of 0.50 inches and a wall thickness of 0.06 inches ensuring optimal performance in demanding truck and trailer air brake systems. Constructed with 100% polyamide and reinforced with synthetic fiber and polyester yarn it delivers superior abrasion resistance and enhanced flexibility compared to traditional materials.

This tubing meets the performance standards of SAE J844 J1131 J2494-3 DOT-FMVSS 106 making it a reliable choice for critical air brake applications. The non-conductive material ensures safety while the multi-braid construction and premium abrasion resistance extend its lifecycle.

With an impulse cycle life of 125000 cycles and a minimum bend radius of 2 inches it offers reliable performance even in low-temperature conditions down to -65deg;F and high-temperature environments up to 200deg;F. It is designed for easy burr-free cutting and forming making assembly straightforward and efficient.

Supplier Part Number: 3270-08104

Specifications

Abrasion Resistance 28	Application Truck air brake systems, trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies	Color Black	Conductivity 13552	Construction Multi Braid	Cover Material Polyester	Dash Size -8	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	I.D. 0.38 in	Impulse Cycle Life 125000 cycle	Minimum Bend Radius 2	Minimum Bend Radius 2	Minimum Working Temperature -40	O.D. 0.5 in	Package Qty. 1500	Reinforcement Material Synthetic fiber	Supplier Part Number 3270-08104	Tube Material Polyamide	Type B	Wall Thickness 0.06	Alternate Part Numbers Alternate Part Number C1JR67, Alternate Part Number MI-05549461, Alternate Part Number MINO-00015X05596, Alternate Part Number MINO-00803Q76727	Product Weight 0.10 lbs

Similar Products

Model Number	Type	O.D.	Wall Thickness	I.D.	Minimum Bend Radius	Color	Package Qty.
3270-0610-0100 Eclipse / Solstice Air Brake Tubing	B	0.375 in	0.06	0.25 in	1.5	Black	100
3270-0610-0500 Eclipse / Solstice Air Brake Tubing	B	0.375 in	0.06	0.25 in	1.5	Black	500
3270-0612-0500 Eclipse / Solstice Air Brake Tubing	B	0.375 in	0.06	0.25 in	1.5	Red	500
3270-0613-0500 Eclipse / Solstice Air Brake Tubing	B	0.375 in	0.06	0.25 in	1.5	Orange	500
3270-0614-0500 Eclipse / Solstice Air Brake Tubing	B	0.375 in	0.06	0.25 in	1.5	Yellow	500
3270-0615-0500 Eclipse / Solstice Air Brake Tubing	B	0.375 in	0.06	0.25 in	1.5	Green	500
3270-0616-0500 Eclipse / Solstice Air Brake Tubing	B	0.375 in	0.06	0.25 in	1.5	Blue	500
3270-0810-0100 Eclipse / Solstice Air Brake Tubing	B	0.5 in	0.06	0.38 in	2	Black	100
3270-0810-0500 Eclipse / Solstice Air Brake Tubing	B	0.5 in	0.06	0.38 in	2	Black	500
3270-0812-0500 Eclipse / Solstice Air Brake Tubing	B	0.5 in	0.06	0.38 in	2	Red	500
3270-08124 Eclipse / Solstice Air Brake Tubing	B	0.5 in	0.06	0.38 in	2	Red	1500
3270-0815-0500 Eclipse / Solstice Air Brake Tubing	B	0.5 in	0.06	0.38 in	2	Green	500
3270-1010-0250 Eclipse / Solstice Air Brake Tubing	B	0.625 in	0.09	0.44 in	2.5	Black	250
3270-10103 Eclipse / Solstice Air Brake Tubing	B	0.625 in	0.09	0.44 in	2.5	Black	750
3270-1012-0250 Eclipse / Solstice Air Brake Tubing	B	0.625 in	0.09	0.44 in	2.5	Red	250
3270-1013-0250 Eclipse / Solstice Air Brake Tubing	B	0.625 in	0.09	0.44 in	2.5	Orange	250
3270-1015-0250 Eclipse / Solstice Air Brake Tubing	B	0.625 in	0.09	0.44 in	2.5	Green	250
3270-1016-0250 Eclipse / Solstice Air Brake Tubing	B	0.625 in	0.09	0.44 in	2.5	Blue	250
3270-1210-0250 Eclipse / Solstice Air Brake Tubing	B	0.75 in	0.09	0.57 in	3	Black	250
3270-1215-0250 Eclipse / Solstice Air Brake Tubing	B	0.75 in	0.09	0.57 in	3	Green	250
4245-0220-1000 Eclipse / Solstice Air Brake Tubing	A	0.125 in	0.02	0.08 in	1.25	Black	1000
4245-0520-0500 Eclipse / Solstice Air Brake Tubing	A	0.313 in	0.04	0.23 in	1.13	Black	500
4247-0410-0100 Eclipse / Solstice Air Brake Tubing	A	0.25 in	0.04	0.17 in	1	Black	100
4247-0410-1000 Eclipse / Solstice Air Brake Tubing	A	0.25 in	0.04	0.17 in	1	Black	1000
4247-0412-1000 Eclipse / Solstice Air Brake Tubing	A	0.25 in	0.04	0.17 in	1	Red	1000
4247-0413-1000 Eclipse / Solstice Air Brake Tubing	A	0.25 in	0.04	0.17 in	1	Orange	1000
4247-0414-1000 Eclipse / Solstice Air Brake Tubing	A	0.25 in	0.04	0.17 in	1	Yellow	1000
4247-0415-1000 Eclipse / Solstice Air Brake Tubing	A	0.25 in	0.04	0.17 in	1	Green	1000
4247-0416-1000 Eclipse / Solstice Air Brake Tubing	A	0.25 in	0.04	0.17 in	1	Blue	1000

Product Questions & Answers (2)

Question by: Rusty R on Jul 10, 2025, 10:01 AM

trying to replace some old air brake line, is this the -8 size with a half inch outside diameter?

Answer by: Customer Support on Jul 11, 2025, 4:14 PM

This tubing is dash size -8 with a 0.50 inch OD and a 0.38 inch ID. Wall thickness is 0.06 inch, so those numbers should line up with other -8 air brake tubing that’s sized by a 1/2 inch outside diameter.

Question by: Pete R on Mar 25, 2025, 6:18 AM

tubing rated for cold weather use? got rigs running in some pretty harsh winters and need to know it'll hold up without getting brittle on me

Answer by: Customer Support on Mar 26, 2025, 8:33 AM

Cold weather performance is solid with this tubing. The operating range bottoms out at -65 degrees F, so even in prolonged freezing conditions it stays flexible and functional. That low-temperature rating is one of the reasons it gets used in truck and trailer air brake systems where reliability in winter months isn't optional.
