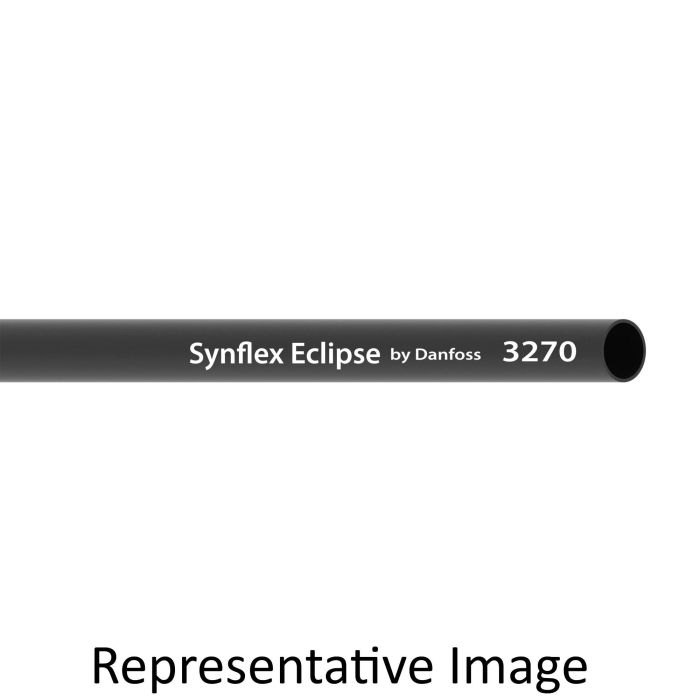

Nylon Air Brake Tubing, Green, 0.50 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

Ask A Question

Description & Features

Danfoss Power Solutions provides top-quality air brake tubing designed for truck and trailer systems. This green 0.50 inch OD tubing boasts a 0.06 inch wall thickness and measures 500 feet per pack ensuring ample quantity for large-scale applications. Perfect for truck air brakes trailer air brakes and auxiliary air systems this tubing meets SAE J844 J1131 J2494-3 and DOT-FMVSS 106 standards for assured quality and safety. Its multi-braid polyester cover offers superior abrasion resistance compared to rubber and Nylon 11. The tubing is UV stabilized and thermoformable suitable for both formed tubes and straight air brake harness assemblies. The synthetic fiber reinforcement material enhances flexibility and flow performance. The temperature range spans -65deg;F to 200deg;F making it versatile for harsh environments. Additionally the tubingrsquo;s non-conductive properties and inkjet lay line style add to its utility and ease of use.

MPN: C1MJ53

Supplier Part Number: 3270-0815-0500

Specifications

Abrasion Resistance
28
Application
Truck air brake systems, trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies.
Color
Green
Conductivity
13552
Construction
Multi Braid
Cover Material
Polyester
Dash Size
-8
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
FT
I.D.
0.38 in
Impulse Cycle Life
125000 cycle
Lay Line Style
Ink Jet
Minimum Bend Radius
2
Minimum Bend Radius
2
Minimum Working Temperature
-40
O.D.
0.5 in
Package Qty.
500
Reinforcement Material
Synthetic fiber
Supplier Part Number
3270-0815-0500
Tube Material
Nylon
Type
B
Wall Thickness
0.06
Alternate Part Numbers
Alternate Part Number C1MJ53
Product Weight
0.11 lbs

Related Documents

Similar Products

Model Number Type O.D. Wall Thickness I.D. Minimum Bend Radius Color Burst Pressure Package Qty. Price Action
Nylon Air Brake Tubing, Black, 0.38 Inch OD, 0.06 Inch Wall Thickness, 100 Feet Per Pack

3270-0610-0100 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Black

100

Nylon Air Brake Tubing, Black, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0610-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Black

500

Nylon Air Brake Tubing, Red, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0612-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Red

500

Nylon Air Brake Tubing, Orange, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0613-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Orange

500

Nylon Air Brake Tubing, Yellow, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0614-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Yellow

500

Nylon Air Brake Tubing, Green, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0615-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Green

500

Nylon Air Brake Tubing, Blue, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0616-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Blue

500

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 100 Feet Per Pack

3270-0810-0100 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Black

100

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0810-0500 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Black

500

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 1500 Feet Per Pack

3270-08104 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Black

1500

Nylon Air Brake Tubing, Red, 0.50 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0812-0500 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Red

500

Nylon Air Brake Tubing, Red, 0.50 Inch OD, 0.06 Inch Wall Thickness, 1500 Feet Per Pack

3270-08124 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Red

1500

Nylon Air Brake Tubing, Green, 0.50 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0815-0500 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Green

500

Nylon Air Brake Tubing, Black, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1010-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Black

250

Nylon Air Brake Tubing, Black, 0.63 Inch OD, 0.09 Inch Wall Thickness, 750 Feet Per Pack

3270-10103 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Black

750

Nylon Air Brake Tubing, Red, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1012-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Red

250

Nylon Air Brake Tubing, Orange, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1013-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Orange

250

Nylon Air Brake Tubing, Green, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1015-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Green

250

Nylon Air Brake Tubing, Blue, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1016-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Blue

250

Nylon Air Brake Tubing, Black, 0.75 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1210-0250 Eclipse / Solstice Air Brake Tubing

B

0.75 in

0.09

0.57 in

3

Black

250

Nylon Air Brake Tubing, Green, 0.75 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1215-0250 Eclipse / Solstice Air Brake Tubing

B

0.75 in

0.09

0.57 in

3

Green

250

Nylon Air Brake Tubing, Black, 0.13 Inch OD, 0.02 Inch Wall Thickness, 1000 Feet Per Pack

4245-0220-1000 Eclipse / Solstice Air Brake Tubing

A

0.125 in

0.02

0.08 in

1.25

Black

1000

Nylon Air Brake Tubing, Black, 0.31 Inch OD, 0.04 Inch Wall Thickness, 500 Feet Per Pack

4245-0520-0500 Eclipse / Solstice Air Brake Tubing

A

0.313 in

0.04

0.23 in

1.13

Black

500

Nylon Air Brake Tubing, Black, 0.25 Inch OD, 0.04 Inch Wall Thickness, 100 Feet Per Pack

4247-0410-0100 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Black

100

Nylon Air Brake Tubing, Black, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0410-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Black

1000

Nylon Air Brake Tubing, Red, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0412-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Red

1000

Nylon Air Brake Tubing, Orange, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0413-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Orange

1000

Nylon Air Brake Tubing, Yellow, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0414-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Yellow

1000

Nylon Air Brake Tubing, Green, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0415-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Green

1000

Nylon Air Brake Tubing, Blue, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0416-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Blue

1000

Product Questions & Answers (1)

Question by: Howard R on May 3, 2025, 1:27 PM
got a truck and trailer setup, is this green tubing actually meant for air brakes or is it more of an aux air line
Answer by: Customer Support on May 4, 2025, 6:33 PM
Built for truck air brake systems, trailer air brake systems, and auxiliary air systems, it fits right into air brake and related air circuits. It also meets SAE J844, J1131, J2494-3 and DOT-FMVSS 106 standards for air brake tubing.
