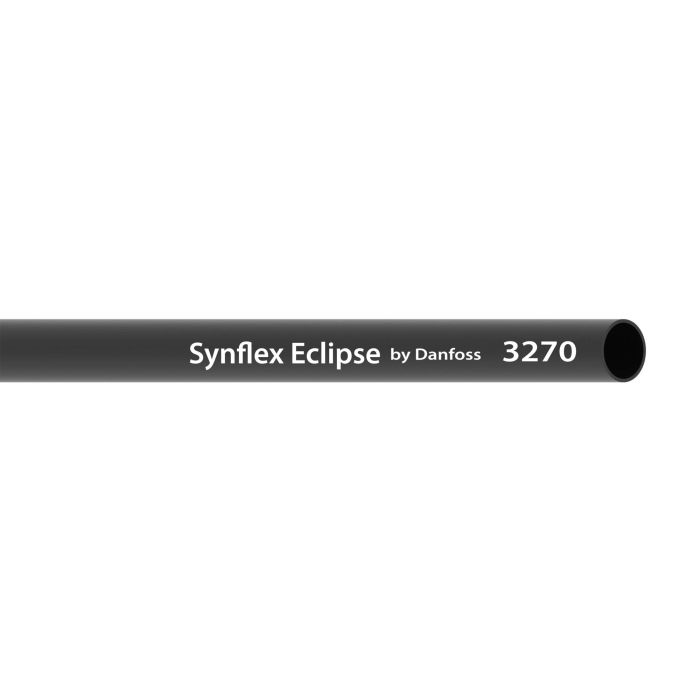

main product photo

Nylon Air Brake Tubing, Black, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

Ask A Question

Description & Features

Engineered for demanding truck and trailer air brake systems this air brake tubing offers superior durability and flexibility. Its 100% polyamide construction is reinforced with polyester yarn providing a multi-braid structure. The tubing is black in color and features a premium abrasion resistance making it suitable for harsh environments.

With a 0.625-inch outer diameter and a wall thickness of 0.09 inches this nylon tubing delivers impressive impulse cycle life of 125 000 cycles. The product is non-conductive and exhibits a lay line style marked by ink jet. It is also UV stabilized and thermoformable offering enhanced performance over traditional rubber and nylon hoses.

Designed to meet the stringent requirements of SAE J844 J1131 and J2494-3 DOT-FMVSS 106 standards the tubing maintains its integrity within a temperature range of -65deg;F to 200deg;F. The minimum bend radius is 2.5 inches affording ease of installation even in tight spaces.

Ideal for auxiliary air systems formed tubes and straight air brake harness assemblies this tubing streamlines assembly with its easy burr-free cutting. Reinforcement material includes synthetic fiber ensuring robustness in various applications.

Supplier Part Number: 3270-1010-0250

Specifications

Abrasion Resistance
28
Application
Truck air brake systems, trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies.
Color
Black
Conductivity
13552
Construction
Multi Braid
Cover Material
Polyester
Dash Size
-10
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
FT
I.D.
0.44 in
Impulse Cycle Life
125000 cycle
Lay Line Style
Ink Jet
Minimum Bend Radius
2.50
Minimum Bend Radius
2.5
Minimum Working Temperature
-40
O.D.
0.625 in
Package Qty.
250
Reinforcement Material
Synthetic fiber
Supplier Part Number
3270-1010-0250
Tube Material
Nylon
Type
B
Wall Thickness
0.09
Alternate Part Numbers
Alternate Part Number C1MJ54
Product Weight
0.20 lbs
